Single Side Polished Sapphire Parts Al2O3 Crystals Substrate Wafers For Epi - Ready
-
High Light
sapphire bearings
,sapphire tube
-
MaterialAl2O3 Single Crystal SAPPHIRE
-
OrientationCommon C
-
Tolerance15um
-
SurfaceSsp Or Dsp
-
Size4inch
-
Thickness0.5mm
-
Place of OriginCHINA
-
Brand Namezmkj
-
Model Number4inch
-
Minimum Order Quantity25pcs
-
Priceby case
-
Packaging Detailscasttle case in 100 grade cleaning room
-
Delivery Time5-20days
-
Supply Ability5000pcs
Single Side Polished Sapphire Parts Al2O3 Crystals Substrate Wafers For Epi - Ready
4inch 2inch 0.5mm single side polished SSP 0.4mm DSP thickness sapphire Al2O3 crystals substrate wafers for epi-ready
other size as like 2inch ,3inch ,4inch ,5inch ,6inch ,8inch ,10inch and customized size sapphire wafer ＆ optical lens also can be provide.
Sapphire Substrate Features
- High working temperature
- Good thermal conducitivity
- Superior machanical properties
- High anti corrosion
- Stable dielectric constant&low dielectric loss
- Excellent light transmission
Sapphire Substrate Application
- Blue LED substrate
- semiconductor template bulk substrate
- Electronics and optoelectronics glass windows
- UV and IR optics
- cooling Submount
- ultralow temperature slide glass
Common Size For Wafer ＆ Optical Lens
| Item | 2″ 4inch |
| Crystal | LED Grade Sapphire |
| Sapphire Purity | ≥99.9996% |
| Color | Transparent |
| Orientation | C plane tiled M axis 0.20°±0.1° |
| Diameter | 50.8±0.1mm 100.1±0.1mm |
| Thickness | 550±15um or 650±15um |
| Primary Flat location | A-axis±0.2° |
| Flat length | 16.0±1mm 30±1mm |
| Front Side Surface | Mirror polished , EPI Ready |
| Surface Roughness | Ra<3A |
| Back Side Roughness |
Fine ground, Ra=1.0±0.2um ( or doule side polised 2sp)
|
| TTV | ≤15um |
| LTV | ≤2.5um(8mm*8mm) |
| BOW | ≤- 15um |
| Warp | ≤20um |
|
Product Name
|
Sapphire opticl grade window
|
|
Material
|
Sapphire crystal
|
|
Color
|
transparent
|
|
Diameter Tolerance
|
+/-0.02mm
|
|
Surface quality
|
SD 20/10; 40/20;60/40;80/50
|
|
Clear Aperture
|
>90% of Diameter
|
|
Chamfer
|
0.25mm*45 degree
|
|
Application
|
For optical use
|

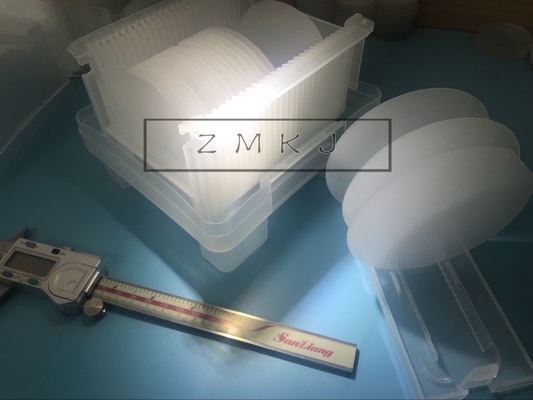

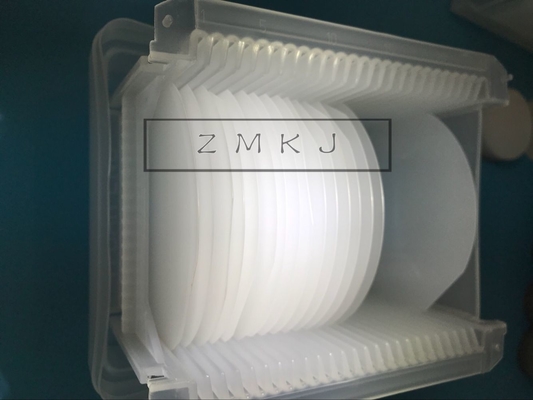

Sample products in details
Sapphire Process Step for Wafers＆ Lens
About Our Fctory Equipment
Q: Are you trading company or manufacturer ?
A: We have factory,but zmkj is trading comprehensive semiconductor wafers for export bussiness.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,
balance before shippment.
If you have another question, pls feel free to contact us as below:
Our products are sold all over the world, you can rest assured.
