Optical Glass Sapphire Substrate 2 Inch 0.1mm 0.175mm Thickness Wafers For DSP
Material | 99.999% Al2O3 | Industry | Led,optical Glass,eli-ready Wafer |
---|---|---|---|
Application | Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics | Color | White Or Red Or Blue |
Vision Light Transmissivity | 85% | Advantagement | High Hardness9.0,wear Resistance, |
Type | Single Crystal | ||
High Light | sapphire substrate,custom sapphire glass |
Chemically, sapphire is single crystal aluminum oxide (Al2O3), and is useful in a transmission range from 0.2 - 5.5µm.Sapphire , so making them ideal materials for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. And sapphire also is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance.
-------------------------------------------------------------------------------------
We can supply professional customized service in time and provide cooperation and support of new product development and technology appliance.
Material Sapphire(Al2O3)
Density(20°C) Kg/m3 3.98×103
Crystal Structure hexagonal
Crystal lattice constant a=4.785Å c=12.991 Å
Mohs hardness 9
Melting Point 2045°C
Boiling Point 3000°C
Coefficient of Thermal Expansion α=5.8×10 -6 /K
Specific heat 0.418W.s/g/k
Thermal conductio 25.12W/m/k(@100°C)
Refractive Index (nd) no=1.768ne=1.76
dn/dt 13×10-6/K(@633nm)
Tranmission T≈85%(0.3~5um)
Permittivity 11.5(//c), 9.3(⊥c)
Sapphire Washers, Sapphire Windows, Sapphire Bearings, Sapphire Rods, Sapphire Tubes, Ruby
sapphire wafer, dome sapphire, Sapphire insulation Film, Sapphire ball lens, Sapphire/ruby ball

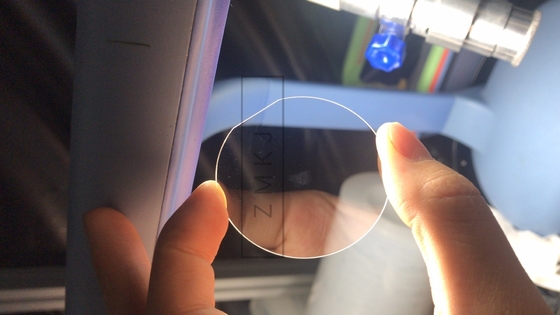

Diameter:50.80±0.2mm
Thickness :100±15um (80um also is ok) or 175±15um,
Primary flat:16±1mm (or round wafer)
OF Orientation flat: A axis±0.1°
Frontside Surface Roughness:Ra<0.3nm
Backside Surface Roughness: 0.8~1.2um
( Or double side polished, both side Ra<0.2nm)
TTV:<10um BOW:-15~0um WARP:<15um
Laser Mark Series No. by needs
Package:Vacuum-sealed containers with nitrogen backfill in a class 100 environment
Cleanliness :Free visible contamination
Sapphire Wafer Process Step
Sample
we also can provide other materials crystal seimconductor wafers as like GaN, SiC,GaAs,InP,MgO etc.

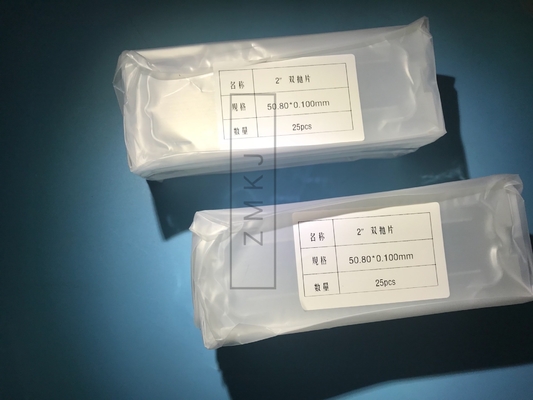

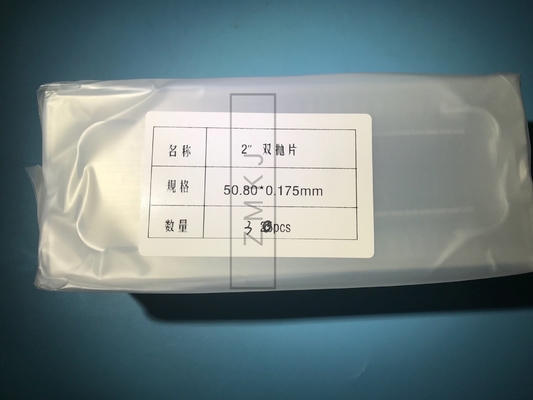

Packing Details : Packing, BOX,CARTONS by 25pcs cassette in cleaning room by vacuumize
Delivery Details : 3-20 days after order of Solid bicycle tire tubesrecieving your pament will be send out.
