Double Side Polished Ssp Surface 8inch Sapphire Carrier Wafer

Product Details

Place of Origin: china

Brand Name: zmkj

Model Number: 4.125/6.125/6inch/8inch

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: by case

Packaging Details: by substrates cassette box

Delivery Time: 3-4weeks

Payment Terms: Western Union, T/T

Supply Ability: 100pcs

Get Best Price
Highlight:

8" Sapphire Carrier Wafer

,

Ssp Surface Sapphire Carrier Wafer

,

Polished Sapphire Carrier Wafer

Material:
Sapphire Crystal
Orientation:
C-axis
Surface:
Dsp Or Ssp
Thickness:
Can Be Customized
Ttv:
<15um
Applications:
Semiconductor Carrier Plate/sos/ Pss/optical
Material:
Sapphire Crystal
Orientation:
C-axis
Surface:
Dsp Or Ssp
Thickness:
Can Be Customized
Ttv:
<15um
Applications:
Semiconductor Carrier Plate/sos/ Pss/optical
Double Side Polished Ssp Surface 8inch Sapphire Carrier Wafer



4.125inch/ 5inch/ 6inch/ 6.125inch/8inch c-plane  R-axis (1-102) (10-10) sapphire wafer,dia200mm sapphire substrates ,2-6inch C-axis double side polished sapphire wafer for led epi-ready,sapphire substrates, Al2O3 crystal optical lens




Specifications

Material: Single crystal Al2O3 99.999%
Diameter200.00±0.2mm 155.575±0.03mm;104±0.02mm;159±0.02mm;
Thickness :725±25um
Primary flat: notch
OF Orientation flat: a±0.2°C-plane(0001)
Orientation: c±0.3°
Frontside Surface Roughness:Ra<0.3nm
Backside Surface Roughness: Ra<0.3nm
Or double side polished
TTV:<15um BOW:-20~0um  WARP:<30um
Laser Mark Series No. by needs
Package:Vacuum-sealed containers with nitrogen backfill in a class 100environment
Cleanliness :Free visible contamination

Item 8-inch C-plane(0001) 1300μm Sapphire Wafers
Crystal Materials 99,999%, High Purity, Monocrystalline Al2O3
Grade Prime, Epi-Ready
Surface Orientation C-plane(0001)
C-plane off-angle toward M-axis 0.2 +/- 0.1°
Diameter 200.0 mm +/- 0.2 mm
Thickness 1300 μm +/- 25 μm
Single Side Polished Front Surface Epi-polished, Ra < 0.2 nm (by AFM)
(SSP) Back Surface Fine ground, Ra = 0.8 μm to 1.2 μm
Double Side Polished Front Surface Epi-polished, Ra < 0.2 nm (by AFM)
(DSP) Back Surface Epi-polished, Ra < 0.2 nm (by AFM)
TTV < 30 μm
BOW < 30 μm
WARP < 30 μm
Cleaning / Packaging Class 100 cleanroom cleaning and vacuum packaging,
25 pieces in one cassette packaging or single piece packaging.







Produce step for saphire wafers



Sapphire crystal body--->get rough ingot in customized axis--->cut tail& top off---->

repair diameter shape----> Grind OF surface--->( anneal -->)wire cut--->chamfer-->anneal--->lapped---polished---infection

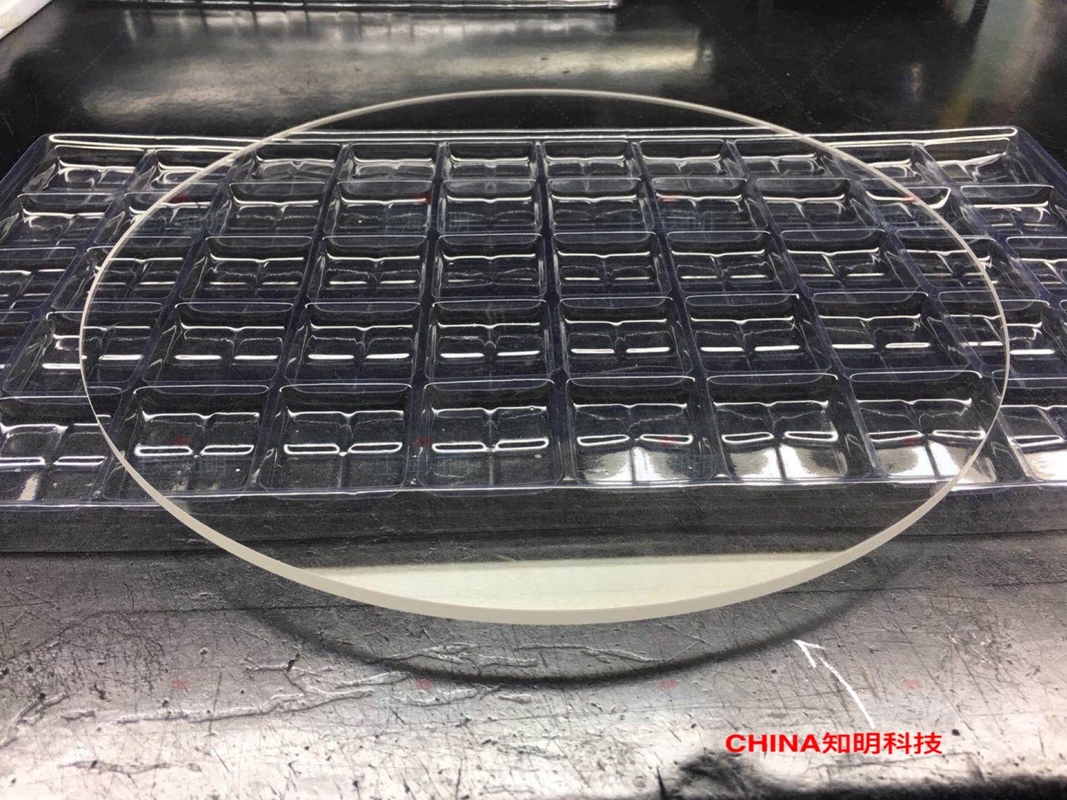

Double Side Polished Ssp Surface 8inch Sapphire Carrier Wafer 0

Synthetic sapphire—sometimes referred to as sapphire glass—is commonly used as a window material, because it is both highly transparent to wavelengths of light between 150 nm (UV) and 5500 nm (IR) (the visible spectrum extends about 380 nm to 750 nm, and extraordinarily scratch-resistant.

The key benefits of sapphire windows are:

Very wide optical transmission band from UV to near-infrared, (0.15–5.5 µm)
Significantly stronger than other optical materials or standard glass windows
Highly resistant to scratching and abrasion
Extremely high melting temperature (2030 °C)

-------------------------------------------------------------------------------------------------------------------------------------------

We can supply professional customized service in time and provide cooperation and support of new product development and technology appliance.

Double Side Polished Ssp Surface 8inch Sapphire Carrier Wafer 1




Some other materials semi substrates also can be provided as like sic, GaN,LaAlO3,LiTaO3 etc.





Double Side Polished Ssp Surface 8inch Sapphire Carrier Wafer 2

FAQ:



Q: What's your MOQ?

A: (1) For inventory, the MOQ is 10pcs.

(2) For customized products, the MOQ is 25pcs up.



Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex, EMS etc.

(2) If you have your own express account, it's great.If not,we could help you ship them.

Freight is in accordance with the actual settlement.



Q: What's the delivery time?

For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 or 3 weeks after you place the order.



Q: Do you have standard products?

A: Our standard products in stock.as like 4inch 0.65mm,0.5mm polished wafer.

Q: How to pay?

A:50%deposit, left before delivery T/T,

Q: Can I customize the products based on my need?

A: Yes, we can customize the material, specifications and optical coating for your optical

components based on your needs.
