Al2O3 Single Crystal Hardness 9.0 Colored Sapphire Lens

Al2O3 Single Crystal Hardness 9.0 Colored Sapphire Lens

  • High Light

    Hardness 9.0 Colored Sapphire Lens

    ,

    Al2O3 Colored Sapphire Lens

    ,

    Semiconductor Wafer Colored Sapphire Lens

  • Material
    Al2O3 Single Crystal
  • Industry
    Semiconductor Wafer ,optical Glass Wafer, Watch Glass
  • Application
    Led Eli-ready Wafer, Optical Protective Window,bearing,electric Ceramic,
  • Hardness
    9.0
  • Vision Light Transmittance
    85%
  • Color
    Customized Color 1#-5#
  • Method
    Cz
  • Place of Origin
    china
  • Brand Name
    zmkj
  • Model Number
    yellow orange colored sapphire lens
  • Minimum Order Quantity
    3pcs
  • Price
    by case by color
  • Packaging Details
    by case
  • Delivery Time
    in 20days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000pcs/months

Al2O3 Single Crystal Hardness 9.0 Colored Sapphire Lens

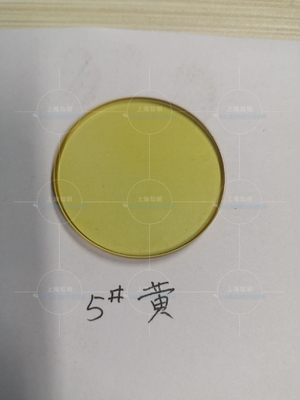

yellow colored sapphire lens for watch case glass surface/ color sapphire glass optical lens



 Sapphire crystals are active media for highly efficient tunable solid-state lasers. They demonstrate good operation in the pulsed-periodic, quasi-CW and CW modes of operation. Ti:Sapphire is a 4-level, Vibronic laser with fluorescence lifetime of 3.6 µm. The peak of the absorption band is 490 nm which makes it an excellent material for pumping with a variety of sources operating in the green-argon ion, copper vapour, frequency-doubled Nd:YAG, and dye lasers are routinely used. Crystals have also been flashlight pumped by lamps designed to allow short fluorescence lifetime. These factors and broad tunability make it an excellent replacement for several common dye lasing materials. The crystals are grown using the Czochralsky and the Ciropolous techniques.





Features:

MATERIAL PHYSICAL AND LASER PROPERTIES:

Chemical formula Cr3+:Al2O3
Crystal structure hexagonal
Lattice parameters, Å a = 4.748; c = 12.957
Refractive indexes np = 1.759; nm = 1.767
Birefrigence 0.0082
Density, g/cm3 3.98
Mohs hardness 9
Thermal conductivity at 25°C, W x cm-1 x °K-1 -
perpendicular to c-axis 0.35
parallel to c-axis 0.33
Specific heat at 18°C, J x kg-1 x °K-1 761
Thermal expansion coefficient (20 - 100°C) -
perpendicular to c-axis 4.78 x 10-6 x °K-1
parallel to c-axis 5.31 x 10-6 x °K-1
orientation C-axis, M-AXIS, A-axis,
growth method  Cz method


Al2O3 Single Crystal Hardness 9.0 Colored Sapphire Lens 0

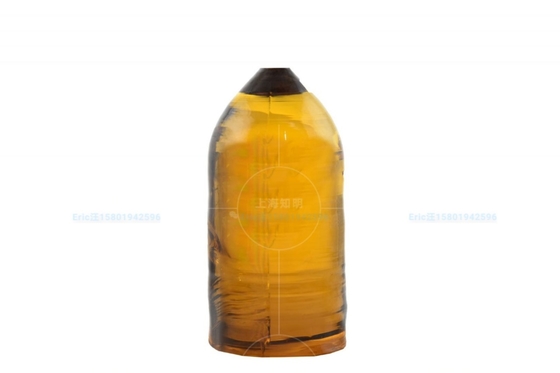

We supply rods and slabs with different cross-sections, dimensions and coatings. Different dopant compositions

with different concentrations are available for specific customer requirements.

C

Al2O3 Single Crystal Hardness 9.0 Colored Sapphire Lens 1Al2O3 Single Crystal Hardness 9.0 Colored Sapphire Lens 2



FAQ:

Q1: Can I have samples to test?

A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.

Q2: Do you have any MOQ limited? A: Our MOQ: 5pcs Q3: What’s the lead time?

A: Sample :5 days.Mass production: 10-30 days.

Q4: How do you ship the goods and how long does it take?

A: We usually ship goods by UPS,FEDEX,TN by FOB. It usually takes 3-5 days to arrive.

Q5: Do you offer guarantee for your products?

A: After test them if not pass test,you can return the goods at any time, we will re-offer you again

and also bear shipping fee.

Q6: Do you accept OEM?

A: We have our own brand-metalaser. of course OEM is also acceptable.
