Undoped transparent silicon carbide sic crystal Optical Lens with hardness 9.2

Product Details

Place of Origin: china

Brand Name: zmsh

Certification: ISO9001

Model Number: transparent colorless

Payment & Shipping Terms

Minimum Order Quantity: 10PCS

Price: by case

Packaging Details: by customized case

Delivery Time: 30days within

Payment Terms: T/T, T/T

Get Best Price
Highlight:

Undoped Sic Optical Lens Wafer

,

4H-N Optical Lens Wafer

,

Semiconductor Optical Lens Wafer

Industry:
Semiconductor Substrate
Materials:
Sic Crystal
Application:
Seed Wafers
Type:
4H-N, Or High Purity Un-doped 4h-semi
Color:
White
Hardeness:
9.4 Up
Grade:
Optical Grade
Size:
Can Be Customized
Thermal Conductivity:
4.9w/cm.k
Industry:
Semiconductor Substrate
Materials:
Sic Crystal
Application:
Seed Wafers
Type:
4H-N, Or High Purity Un-doped 4h-semi
Color:
White
Hardeness:
9.4 Up
Grade:
Optical Grade
Size:
Can Be Customized
Thermal Conductivity:
4.9w/cm.k
Undoped transparent silicon carbide sic crystal Optical Lens with hardness 9.2

6inch production prime SIC crystal Silicon Carbide seed Wafer 0.6mm Thickness for sic growth

high purity undoped or transparent colorless sic optical lens wafer for Quantum light source





 we  can provides high quality single crystal SiC wafer ( Silicon Carbide ) to electronic and optoelectronic industry . SiC wafer is a next generation semiconductor material , with unique electrical properties and excellent thermal properties , compared to silicon wafer and GaAs wafer , SiC wafer is more suitable for high temperature and high power device application . SiC wafer can be supplied in diameter 2 -6inch , both 4H and 6H SiC , N-type , Nitrogen doped , and semi-insulating type available . Please contact us for more product information .



1.material application and advantagement

Applications:

• GaN epitaxy device
• Optoelectronic device
• High frequency device
• High power device
• High temperature device
• Light emitting diodes



• Low lattice mismatch
• High thermal conductivity
• Low power consumption
• Excellent transient characteristics
• High band gap

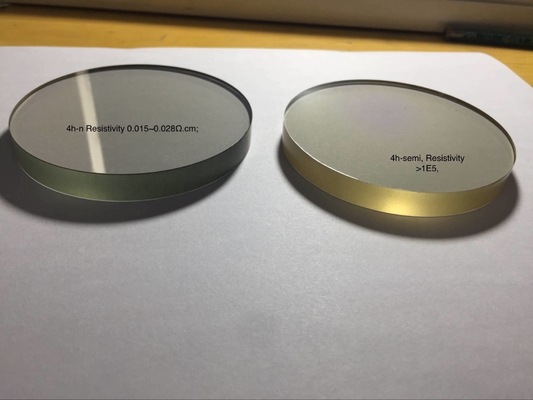

Undoped  transparent silicon carbide sic crystal Optical Lens with hardness 9.2 0



SILICON CARBIDE MATERIAL PROPERTIES
Polytype
Single Crystal 4H
Single Crystal 6H
Lattice Parameters
a=3.076 Å
a=3.073 Å
c=10.053 Å
c=15.117 Å
Stacking Sequence
ABCB
ABCACB
Band-gap
3.26 eV
3.03 eV
Density
3.21 · 103 kg/m3
3.21 · 103 kg/m3
Therm. Expansion Coefficient
4-5×10-6/K
4-5×10-6/K
Refraction Index
no = 2.719
no = 2.707
ne = 2.777
ne = 2.755
Dielectric Constant
9.6
9.66
Thermal Conductivity
490 W/mK
490 W/mK
Break-Down Electrical Field
2 – 4 · 108 V/m
2 – 4 · 108 V/m
Saturation Drift Velocity
2.0 · 105 m/s
2.0 · 105 m/s
Electron Mobility
800 cm2/V·S
400 cm2/V·S
hole Mobility
115 cm2/V·S
90 cm2/V·S
Mohs Hardness
~9
