Home > Products > Ceramic Substrate > Polished SIC Ceramic Substrate Al2O3 Alumina Ceramic Parts

Polished SIC Ceramic Substrate Al2O3 Alumina Ceramic Parts

Product Details

Place of Origin: china

Brand Name: zmkj

Model Number: customized shape sic

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Packaging Details: customized carton package

Delivery Time: 2-4weeks

Payment Terms: T/T, Western Union

Supply Ability: 1000pc/month

Get Best Price
Highlight:

Polished SIC Ceramic Substrate

,

Al2O3 Alumina Ceramic Parts

,

92HRA Ceramic Substrate

Material:
Ssic Ceramic
Tolerance:
±0.02mm
Surface:
Mirror Polished
Customized:
Ok
Feature::
High Temperature Resistance
Item Name:
Sic Ceramic
Hardness::
Above 92HRA
Flexural Strength::
Above 400MPa
Material:
Alumina
Type:
Insulating Ceramics,Electrothermal Ceramics
Size:
Customzied
Shape:
Custom-shaped
Product Name:
Ceramic Substrate,95%Alumina Ceramic Tube
Material:
Ssic Ceramic
Tolerance:
±0.02mm
Surface:
Mirror Polished
Customized:
Ok
Feature::
High Temperature Resistance
Item Name:
Sic Ceramic
Hardness::
Above 92HRA
Flexural Strength::
Above 400MPa
Material:
Alumina
Type:
Insulating Ceramics,Electrothermal Ceramics
Size:
Customzied
Shape:
Custom-shaped
Product Name:
Ceramic Substrate,95%Alumina Ceramic Tube
Polished SIC Ceramic Substrate Al2O3 Alumina Ceramic Parts

polished SIC ceramic customized shape wear-resistance Al2O3 ceramic parts

mirror polished SIC ceramic tube customized shape wear-resistance Al2O3 ceramic cylinder





1. SIC Cermaic has the advantages of super hardness, high wear-resisting,good corrosion resistance and electric insulation,resistant acid-base,high intensity,thermostable,high temperature tolerance,good insulation,high strength,precision process,high mechanical strength,good chemical stability.

Good smoothness, mechanical seal good, polishing surface and so on.



2. Forming methods includes:
Drying pressing
Isostatic pressing
Hot pressing casting


3. The application of our product:

Ceramic shaft,sleeve for different pump.
Ceramic plunger for high pressure cleaner.
Wearlessness,resistant acid-base and high intensity ceramic assembly apply to petroleum,chemical industry.



Specification
Properites
Units
Silicon carbide Material
Type

SiC
SiSiC
NSiC
RSiC
Chemical composition
SiC%
89
87
92
70
99
SiO2 %
5
6
-
Si3N4 28
-
Al2O3%
1.0
2.0
-
-
-
Bulk Desity
g/cm3
2.85
2.8
3.01
2.8
2.75
Apparent porosity
%
12
14
0.1
12
14
M.O.R.@20℃
MPa
50
48
260
180
100
M.O.R.@1300℃
MPa
58
56
280
185
120
C.T.E.@20℃-1000℃
10-6K-1
4.8
4.2
4.5
4.7
4.6
C.C.S
MPa
100
90
900
500
300
Thermal shock resistance
★★★★★
★★★★★
★★★★★
★★★★★
★★★★★
Max working temperature
1450
1420
1300
1500
1650
application
Used in ceramic shuttle kiln, tunnel kiln and roller kiln,Kiln furniture.

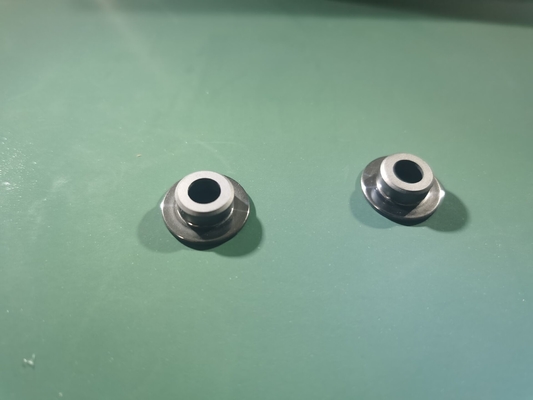

Polished SIC Ceramic Substrate Al2O3 Alumina Ceramic Parts 0

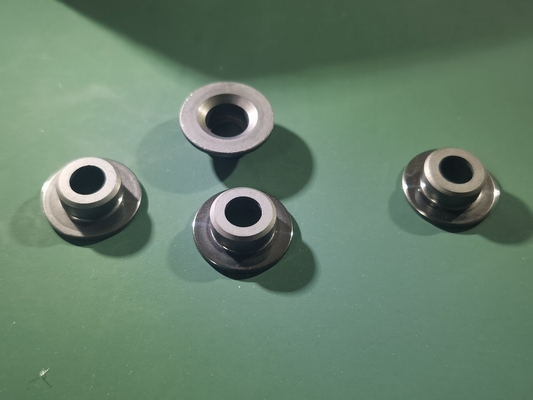

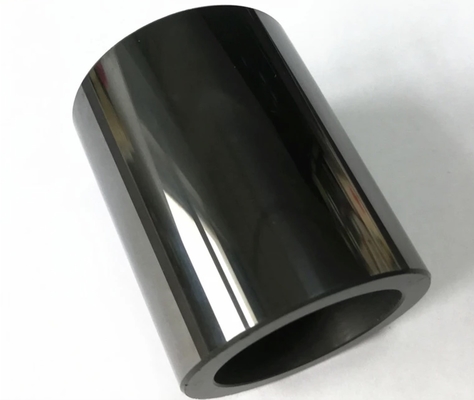

Polished SIC Ceramic Substrate Al2O3 Alumina Ceramic Parts 1Polished SIC Ceramic Substrate Al2O3 Alumina Ceramic Parts 2

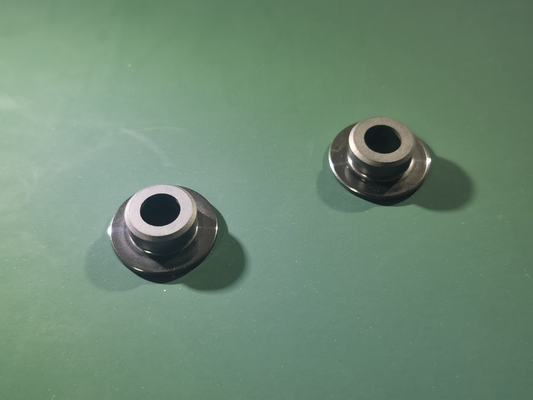

Polished SIC Ceramic Substrate Al2O3 Alumina Ceramic Parts 3

Packing & Delivery

Packing Details : 1 pcs in one pp bomb bag , PE bag and foam packed inside carton

Delivery Details : 7-30 days after orde



Q1.What is the difference between Refractoriness and Working temperature ?
A1:Refractoriness:the refractory material withstands high temperature without melting and softening performance in the absence of load resistance.Usually working temperature is less than refractoriness about 350-400°C.

Q2.How are the products' quality?
A2:The products will be strictly inspected before shipment, so the quality could be guaranteed.

Q3:What is the Warranty for the fire brick?
A3:For all the brick,we have 1 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q4.What is the service life of the bricks?
A4:The service life of different bricks is unlike.It also depends on your using condition and method.
Q5:Are you a manufacture or trader?
A5:To be honest we are a trader,but we have stable cooperation factories.And we can supply good pre-sale service, after-sales service.


Q6.Can we visit your company?
A6:Sure,welcome at any time,seeing is believing.

Q7. Do you provide samples?
A7:Yes, samples are available.

Q8. Do you accept OEM?
A8:Yes, we can do OEM.

Q9.What's the MOQ of trial order?
A9:No limit,We can offer the best suggestions and solutions according to your condition.

Q10.What are the payment terms?
A10:Usually T/T,but L/C,Western Union etc are available for us.

Q11. How long is delivery time?
A11:The delivery time will be determined according to the quantity of the order.
