Product Details
Place of Origin: china
Brand Name: zmsh
Model Number: dia300
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: by case
Packaging Details: Vacuum-sealed containers with nitrogen backfill in a class 100 environment
Delivery Time: 10-30days
Supply Ability: 10000pcs/months
Material: |
99.999％ Al2O3 |
Industry: |
Led，optical Glass，eli-ready Wafer |
Application: |
Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics |
Color: |
White Or Red Or Blue |
Vision Light Transmissivity: |
85％ |
Advantagement: |
High Hardness9.0，wear Resistance,corrosion Resistance |
Type: |
Single Crystal |
Material: |
99.999％ Al2O3 |
Industry: |
Led，optical Glass，eli-ready Wafer |
Application: |
Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics |
Color: |
White Or Red Or Blue |
Vision Light Transmissivity: |
85％ |
Advantagement: |
High Hardness9.0，wear Resistance,corrosion Resistance |
Type: |
Single Crystal |

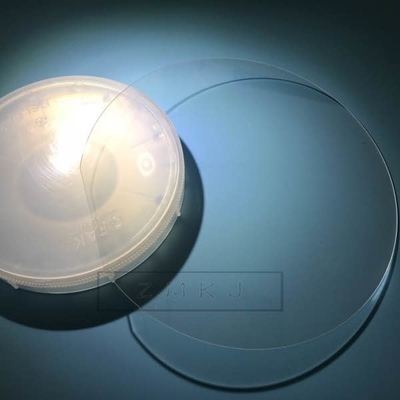

Chemically, sapphire is single crystal aluminum oxide (Al2O3), and is useful in a transmission range from 0.2 - 5.5µm.Sapphire , so making them ideal materials for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. And sapphire also is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance.
-------------------------------------------------------------------------------------
We can supply professional customized service in time and provide cooperation and support of new product development and technology appliance.
Material Sapphire(Al2O3)
Density(20°C) Kg/m3 3.98×103
Crystal Structure hexagonal
Crystal lattice constant a=4.785Å c=12.991 Å
Mohs hardness 9
Melting Point 2045°C
Boiling Point 3000°C
Coefficient of Thermal Expansion α=5.8×10 -6 /K
Specific heat 0.418W.s/g/k
Thermal conductio 25.12W/m/k(@100°C)
Refractive Index (nd) no=1.768ne=1.76
dn/dt 13×10-6/K(@633nm)
Tranmission T≈85%(0.3~5um)
Permittivity 11.5(//c), 9.3(⊥c)
Sapphire Wafer Process Step
Sample
we also can provide other materials crystal seimconductor wafers as like GaN, SiC,GaAs,InP,MgO etc.
|
Standard wafer(customzied) 2 inch C-plane sapphire wafer SSP/DSP
3 inch C-plane sapphire wafer SSP/DSP 4 inch C-plane sapphire wafer SSP/DSP 6 inch C-plane sapphire wafer SSP/DSP |
Special Cut A-plane (1120) sapphire wafer R-plane (1102) sapphire wafer M-plane (1010) sapphire wafer N-plane (1123) sapphire wafer C-axis with a 0.5°~ 4° offcut, toward A-axis or M-axis Other customized orientation |
| Customized Size 10*10mm sapphire wafer 20*20mm sapphire wafer Ultra thin (100um) sapphire wafer 8 inch sapphire wafer |
Patterned Sapphire Substrate (PSS) 2 inch C-plane PSS 4 inch C-plane PSS |
| 2inch |
DSP C-AXIS 0.1mm/0.175mm/0.2mm/0.3mm/0.4mm /0.5mm/ 1.0mmt SSP C-axis 0.2/0.43mm (DSP＆SSP) A-axis/M-axis/R-axis 0.43mm
|
| 3inch |
DSP/ SSP C-axis 0.43mm/0.5mm
|
| 4Inch |
dsp c-axis 0.4mm/ 0.5mm/1.0mm ssp c-axis 0.5mm/0.65mm/1.0mmt
|
| 6inch |
ssp c-axis 1.0mm/1.3mmm
dsp c-axis 0.65mm/ 0.8mm/1.0mmt
|
Packing Details : Packing, BOX,CARTONS by 25pcs cassette in cleaning room by vacuumize
Delivery Details : 3-20 days after order of Solid bicycle tire tubesrecieving your pament will be send out.
Q: What's the way of shipping and cost?
(1) We accept DHL, Fedex, TNT, UPS, EMS, SFand etc.
(2) If you have your own express account, it's great.
Q: How to pay?
(1) T/T, PayPal, West Union, MoneyGram and
Assurance payment on Alibaba and etc..
(2) Bank Fee: West Union≤USD1000.00),
T/T -: over 1000usd ,please by t/t
Q: What's the deliver time?
(1) For inventory: the delivery time is 5 workdays.
(2) For customized products: the delivery time is 7 to 25 workdays. According to the quantity.
