Sapphire Crystal Cr3+Doped Ruby Cr Al2O3 Crystal Substrate Ruby Wafer

Place of Origin china
Brand Name zmsh
Model Number wafer-5inch R
Minimum Order Quantity 25pcs
Price by case
Packaging Details Vacuum-sealed containers with nitrogen backfill in a class 100 environment
Delivery Time 15-30days
Supply Ability 100pcs/months
Product Details
Material 99.999% Al2O3 Industry Led,optical Glass,eli-ready Wafer
Application Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics Color White Or Red Or Blue
Vision Light Transmissivity 85% Advantagement High Hardness9.0,wear Resistance,
Size Dia125mm Thickness 1.0mm
Orientation R-axis
High Light

Cr Al2O3 Crystal Substrate

,

Al2O3 Ruby Wafer

,

Single crystal Sapphire Crystal

Leave a Message
Product Description
Sapphire Crystal Cr3+Doped Ruby Cr Al2O3 Crystal Substrate Ruby Wafer

Polishing Specification for Laser Grade
Orientation Tolerence
<0.5°
Thickness/Diameter Tolerance
±0.05 mm
Parallel
10''
Perpendicular
5'
surface Quality
10/5
Wavefront Distortion
λ/4@632nm
Surface Flatness
λ/8@632nm
Clear Aperture
>90%
Chamfer
<0.2×45°
Maximum dimensions
dia 120mm





5 inch Specification
Material: Single crystal Al2O3 99.999%

Sapphire Crystal Cr3+Doped Ruby Cr Al2O3 Crystal Substrate Ruby Wafer 0

Diameter:125.00±0.1mm

Thickness :1000±25um

Primary flat:42.5±2.5mm

OF Orientation flat: 45°off C±0.1°C-plane(0001)

Orientation: R±0.1°Or A-plane,M-plane

Frontside Surface Roughness:Ra<0.3nm

Backside Surface Roughness: 0.8~1.2um

Or double side polished

TTV:<20um

BOW:-25~0um

WARP:<30um

Laser Mark Series No. by needs

Package:Vacuum-sealed containers with nitrogen backfill in a class 100environment

Cleanliness :Free visible contamination

-------------------------------------------------------------------------------------------------------------------------------------
1 - Thinner and Stronger than Standard Glass Windows
2 - Transmits Wavelengths Ranging From UV to Mid-Infrared
3 - Features Extreme Surface Hardness and Chemical Resistance
4 - Can bear in high and low temperature environmental conditions

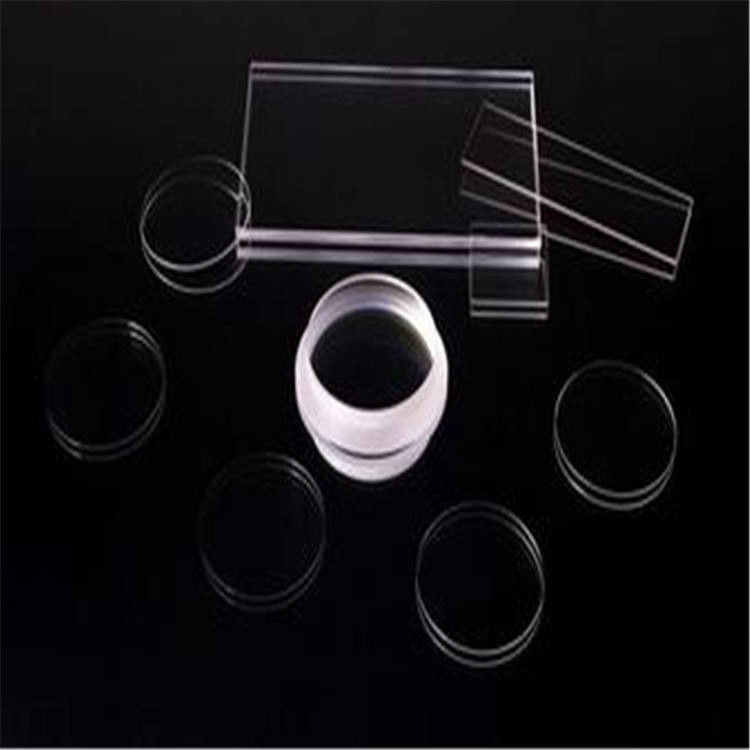

Sapphire Windows are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3), and is useful in a transmission range from 0.2 - 5.5µm. so it have many points of use.We can supply professional customized service in time and provide cooperation and support of new product development and technology appliance.

Sapphire Crystal Cr3+Doped Ruby Cr Al2O3 Crystal Substrate Ruby Wafer 1





5inch product pictures

Sapphire Crystal Cr3+Doped Ruby Cr Al2O3 Crystal Substrate Ruby Wafer 2

picture is 5inch lapped wafer



packing & delivery

Sapphire Crystal Cr3+Doped Ruby Cr Al2O3 Crystal Substrate Ruby Wafer 3

FAQ:

Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex,  EMS  SF(CHINA)etc.by FOB.

Q: How to pay?

A:100% in advance T/T before delivery.



Q: What's your MOQ?

A: (1) For inventory, the MOQ is 10pcs.

(2) For customized products, the MOQ is 25pcs up.



Q: What's the delivery time?

A: (1) For the standard products

For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 or 3 weeks after you place the order.



Q: Do you have standard products?

A: Our standard products in stock.as like 4inch 0.65mm,0.5mm polished wafer.



Q: Can I customize the products based on my need?

A: Yes, we can customize the material, specifications and optical coating for your optical

components based on your needs.
