4inch GaAs Wafers Gallium Arsenide Substrates DSP N type P type

I'm Online Chat Now

4inch GaAs Wafers Gallium Arsenide Substrates DSP N type P type

4inch GaAs Wafers Gallium Arsenide Substrates DSP N type P type
4inch GaAs Wafers Gallium Arsenide Substrates DSP N type P type 4inch GaAs Wafers Gallium Arsenide Substrates DSP N type P type 4inch GaAs Wafers Gallium Arsenide Substrates DSP N type P type

Large Image :  4inch GaAs Wafers Gallium Arsenide Substrates DSP N type P type

Product Details:
Place of Origin: china
Brand Name: zmsh
Certification: ROHS
Model Number: 6INCH GaAs wafer
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: by case
Packaging Details: PET film in 100-grade cleaning room
Delivery Time: 1-4weeks
Supply Ability: 500pcs/month
Detailed Product Description
Material: MONOcrystal GaAs Industry: Semicondutor Wafer For Ld Or Led
Application: Semiconductor Substrate, Led Chip, Optical Glass Window,device Substrates Method: CZ
Size: 2inch~6inch Thickness: 0.425mm
Surface: Cmp/etched Doped: Si-doped
MOQ: 10PCS Grade: Research Grade/dummy Grade
Highlight:

4inch GaAs Wafers

,

DSP Gallium Arsenide Substrates

,

Laser Device GaAs Wafers

4Inch GaAs Wafers Gallium Arsenide Substrates DSP
------------------------------------------------------------------------------------------------------------------------------

GaAs wafer

Gallium arsenide (GaAs) is one of the important and mature Ⅲ-Ⅴ compound semiconductor materials, which is widely used in the field of optoelectronics and microelectronics. Gallium arsenide materials are mainly divided into two categories: semi-insulated gallium arsenide materials and semiconductor gallium arsenide materials. Semi-insulated gallium arsenide materials are mainly used to produce integrated circuits with MESFET, HEMT and HBT structures. Mainly used in radar, microwave and millimeter wave communication, ultra-high speed computer and optical fiber communication and other fields. Semiconductor gallium arsenide materials are mainly used in semiconductor lasers (LD), semiconductor light-emitting diodes (LED), near-infrared lasers, quantum well high-power lasers and high-efficiency solar cells.



Specification detail
Type/Dopant 导电类型/掺杂元素 Semi-Insulated P-Type/Zn N-Type/Si N-Type/Si
Application 应用 Micro Eletronic LED Laser Diode
Growth Method 长晶方式 VGF
Diameter 直径 2", 3", 4", 6"
Orientation 晶向 (100)±0.5°
Thickness 厚度 (µm) 350-625um±25um
OF/IF 参考边 US EJ or Notch
Carrier Concentration 载流子浓度 - (0.5-5)*1019 (0.4-4)*1018 (0.4-0.25)*1018
Resistivity 电阻率 (ohm-cm) >107 (1.2-9.9)*10-3 (1.2-9.9)*10-3 (1.2-9.9)*10-3
Mobility 电子迁移率 (cm2/V.S.) >4000 50-120 >1000 >1500
Etch Pitch Density 位错密度(/cm2) <5000 <5000 <5000 <500
TTV 平整度 [P/P] (µm) <5
TTV 平整度 [P/E] (µm) <10
Warp 翘曲度 (µm) <10
Surface Finished 表面加工 P/P, P/E, E/E

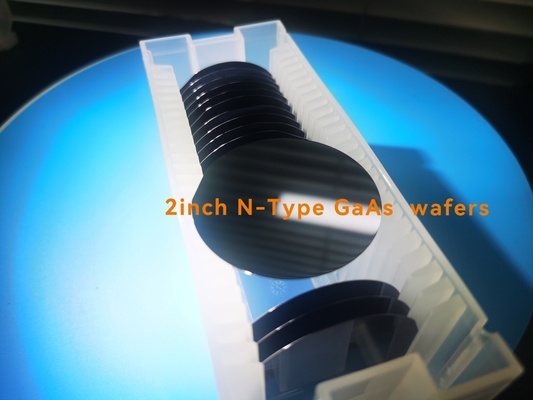

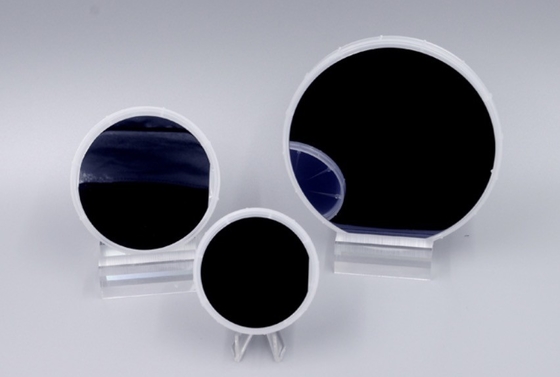

4inch GaAs Wafers Gallium Arsenide Substrates DSP N type P type 04inch GaAs Wafers Gallium Arsenide Substrates DSP N type P type 1


ABOUT OUR ZMKJ

     ZMKJ locates in the city of Shanghai, Which is the best city of China, and our factory is founded
in Wuxi city in 2014.We specialize in processing a varity of materials into wafers, substrates
and custiomized optical glass parts.components widely used in electronics, optics,
optoelectronics and many other fields. We also have been working closely with many domestic
and oversea universities, research institutions and companies, provide customized products
and services for their R&D projects.
   It's our vision to maintaining a good relationship of cooperation with our all customers by our
  good reputatiaons. so we also can provide some other materials substrates as like:

Related products: Ge wafer

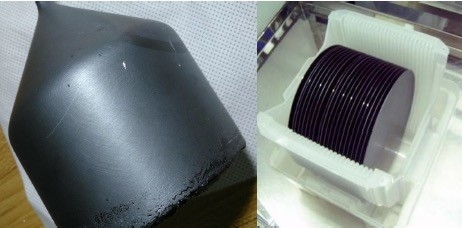

4inch GaAs Wafers Gallium Arsenide Substrates DSP N type P type 24inch GaAs Wafers Gallium Arsenide Substrates DSP N type P type 3

Packaging – Logistcs
Worldhawk concerns each details of the package , cleaning, anti-static , shock treatment .
According to the quantity and shape of the product , we will take a different packaging process!

FAQ –
Q: What you can supply logistics and cost?
(1) We accept DHL, Fedex, TNT, UPS, EMS, SF and  by FOB
 and pay condition of 50% deposit,50% before delivery.

Q: What's the delivery time?
For inventory: the delivery is 5 workdays after order.
For customized products: the delivery is 2 or 3 workweeks after order.


Q: What's the MOQ?
(1) For inventory, the MOQ is 5pcs.
(2) For customized products, the MOQ is 10pcs-30pcs.
Q: Do you have inspection report for material?
We can supply detail report for our products.
