Al2O3 99.999% Single Crystal 4 Inch SSP/DSP Dia100mm A-Plane Sapphire Wafer Substrates

Product Details

Place of Origin: CHINA

Brand Name: ZMSH

Certification: ROHS

Model Number: Sapphire wafers 4inch Dia100mm A-plane

Payment & Shipping Terms

Minimum Order Quantity: 25PC

Price: By case

Packaging Details: 25pcs cassette box

Delivery Time: in 15 days

Payment Terms: T/T

Supply Ability: 20000PC/month

Get Best Price
Highlight:

Al2O3 Single Crystal Sapphire

,

A-Plane Sapphire Wafer Substrates

,

Dia 100mm Sapphire Wafer

Thickness:
>0.08mm
Application:
Optical Windows; Epi-ready
Diameter:
50.8mm 100mm 150mm 200mm 300mm
Polishing:
Single Side Polishing Double Sides Polishing
Advantage:
Wear Resistance, Acid And Alkali Resistance, Corrosion Resistance, Good Transmission Rate
Flatness:
≤3μm
Surface Quality:
60/40
Material:
Single Sapphire Crystal
Ra:
0.3nm
Thickness:
>0.08mm
Application:
Optical Windows; Epi-ready
Diameter:
50.8mm 100mm 150mm 200mm 300mm
Polishing:
Single Side Polishing Double Sides Polishing
Advantage:
Wear Resistance, Acid And Alkali Resistance, Corrosion Resistance, Good Transmission Rate
Flatness:
≤3μm
Surface Quality:
60/40
Material:
Single Sapphire Crystal
Ra:
0.3nm
Al2O3 99.999% Single Crystal 4 Inch SSP/DSP Dia100mm A-Plane Sapphire Wafer Substrates

4 Inch SSP/DSP Dia100mm A-Plane Axis-C Sapphire Wafer Substrates Carrier Single Crystal



Product Description:

Sapphire is a material of a unique combination of physical, chemical and optical properties, which make it resistant to high temperature, thermal shock, water and sand erosion, and scratching. It is a superior window material for many IR applications from 3µm to 5µm. C-plane sapphire substrates are widely used to grow III-V and II-VI compounds such as GaN for blue LED and laser diodes, while R-plane sapphire substrates are used for the hetero-epitaxial deposition of silicon for microelectronic IC applications.



Features:

  • Sapphire Wafer sizes from 2” to 150mm, from inventory
  • Very high quality low defectivity and tight TTV and flatness
  • High purity 99.998%
  • Single and double sided polished available
  • C, A, and R plane orientations
  • Small lot sizes and Laser marking of wafers available
  • Short lead-time for delivery



Technical Parameters:

Mechanical Properties
Density at 20°C 3.98 g/cm3
Hardness Knoop: 1500
Mohs: 9
Tensile Strength 275 - 400 MPa
40,000 - 58,000 psi
Flexural Strength 480 - 895 MPa
70,000 - 130,000 psi
Compression Strength (ultimate) 2.0 GPa / 300,000 psi
Young's Modulus (elasticity) 345 GPa / 50 x 106 psi
Bulk Modulus (compression) 250 GPa / 36 x 106 psi
Shear Modulus (rigidity) 145 GPa / 21 x 106 psi
Modulus of Rupture 350 - 690 MPa / 50,000 - 100,000 psi
Melting Point 2040°C / 3700°F / 2310 K





Applications:

ZMSH Sapphire epi-ready sapphire substrate is a perfect solution for a wide range of applications. It has a brand name of ZMSH, and a model number of Sapphire wafers. It is a product of CHINA, and is certified by ROHS. The minimum order quantity is 25PC, and the price is by case. The packaging details are 25pcs cassette box, and the delivery time is within 30days. Payment terms are T/T, and the supply ability is 20000PC/month. The edge of the sapphire wafer has a protective chamfer, and the thickness is greater than 0.08mm. The TTV is ≤3μm, the surface quality is 60/40, and the parallelism is ≤10μm. It can be used for DSP sapphire, and is an ideal choice for epi-ready sapphire substrate.



Customization:

Crystal Materials 99,999%, High Purity, Monocrystalline Al2O3
Grade Prime, Epi-Ready
Surface Orientation A-plane(11-20)
Diameter 50.8 mm +/- 0.1 mm
Thickness 430 μm +/- 25 μm
Primary Flat Orientation C-plane(0001) +/- 0.2°
Primary Flat Length 16.0 mm +/- 1.0 mm
Single Side Polished Front Surface Epi-polished, Ra < 0.5 nm (by AFM)
(SSP) Back Surface Fine ground, Ra = 0.8 μm to 1.2 μm
Double Side Polished Front Surface Epi-polished, Ra < 0.5 nm (by AFM)
(DSP) Back Surface Epi-polished, Ra < 0.5 nm (by AFM)
TTV < 10 μm
BOW < 10 μm
WARP < 10 μm
Cleaning / Packaging Class 100 cleanroom cleaning and vacuum packaging,
25 pieces in one cassette packaging or single piece packaging.

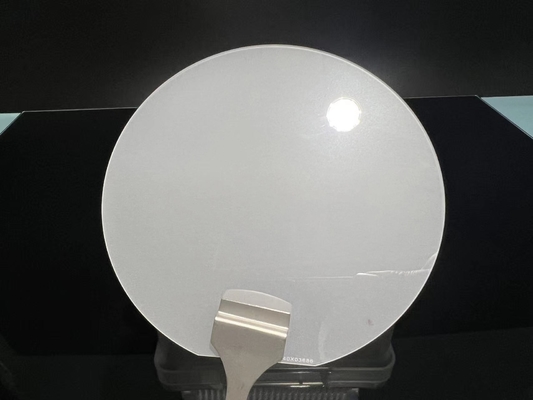

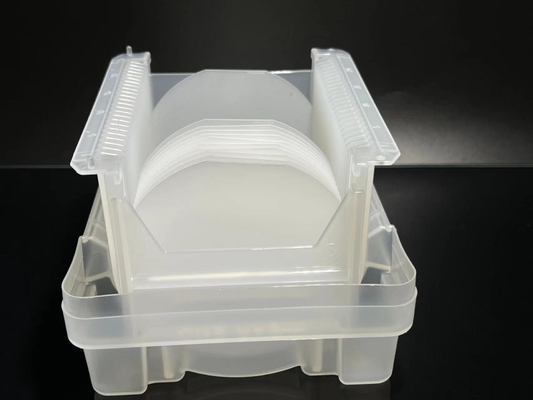

Al2O3 99.999% Single Crystal 4 Inch SSP/DSP Dia100mm A-Plane Sapphire Wafer Substrates 0Al2O3 99.999% Single Crystal 4 Inch SSP/DSP Dia100mm A-Plane Sapphire Wafer Substrates 1



Support and Services:

Besides manufacturing optical lens and semi wafers follow customers drawing,we could also supply service of optics design and OEM.

And our after sales service is considerate,you'll feel comfortable to be here. Our wuxi fine crystal factory has strong production capacity, we own the domestically top production line and excellent workerswho mainly are researchers and technicians from the Chinese famous semiconductor wafers company .they are experienced and creativity for producing,designing wide range of optical lenses and wafers produce method.
