Monocrystalline Al2O3 High Transmittance Sapphire Wafer Optical Element
  • Monocrystalline Al2O3 High Transmittance Sapphire Wafer Optical Element
  • Monocrystalline Al2O3 High Transmittance Sapphire Wafer Optical Element
  • Monocrystalline Al2O3 High Transmittance Sapphire Wafer Optical Element

Monocrystalline Al2O3 High Transmittance Sapphire Wafer Optical Element

Place of Origin CHINA
Brand Name ZMSH
Model Number Sapphire wafer
Product Details
Material:
Sapphire
Chemical Stability:
Excellent
Application:
Optical Windows; Epi-ready
Hardness:
Mos9.0
Thickness:
Customization
TTV:
≤3μm
High Light:

Optical element Sapphire wafer

,

monocrystalline Al2O3 Sapphire wafer

,

High transmittance Sapphire wafer

Product Description

Product Description:

The Sapphire Wafer product features M-axis and A-plane orientations, which provide unique crystal structures and crystallographic properties that are useful for different applications. These orientations allow for better epitaxial growth, making it an ideal choice for applications that require high crystal quality.

With a perpendicularity of ≤10μm, the Sapphire Wafer product guarantees excellent flatness and uniformity across its surface. This attribute is essential for applications that require precise alignment and uniformity across the substrate's surface, such as in the manufacturing of LEDs, microelectromechanical systems (MEMS), and high-temperature electronics.

The Sapphire Wafer product also boasts a parallelism of ≤10μm, which ensures that the substrate is perfectly flat and parallel to the wafer surface. This attribute is critical for applications that require precise alignment between the substrate and other components, such as in the manufacturing of silicon-on-sapphire (SOS) or gallium nitride (GaN) devices.

Additionally, the Sapphire Wafer product has a roughness of Ra<0.2nm, which is exceptionally smooth and conducive to high-quality epitaxial growth. This attribute is essential for applications that require precise control over the deposited layer's thickness and quality, such as in the manufacturing of optoelectronic devices and high-power electronics.

The Sapphire Wafer product is also known for its excellent chemical stability, which makes it highly resistant to chemical etching, ion implantation, and other harsh chemical processes. This attribute is essential for applications that require high-temperature processing or exposure to corrosive environments.

Overall, the Sapphire Wafer product is an excellent choice for applications that require high-quality substrates with unique crystallographic properties and exceptional flatness, uniformity, and surface quality. Its M-axis and A-plane orientations, epi-ready surface, and customizable diameters make it a versatile and reliable substrate for various applications in the semiconductor, optoelectronics, and high-tech industries.



Features:

  • Product Name: Sapphire Wafer
  • Advantages:
    • Wear Resistance
    • Acid And Alkali Resistance
    • Corrosion Resistance
    • Good Transmission Rate
  • TTV: ≤3μm
  • Chemical Stability: Excellent
  • Edge: Protective Chamfer


Applications:

The sapphire wafer is a versatile product that has many applications. It is commonly used as an optical window due to its excellent chemical stability and high surface quality of 60/40. The epi-ready sapphire substrate is also a popular choice in the semiconductor industry for its unique properties.

ZMSH Sapphire0005 comes in various sizes, including 2inch, 3inch, 4inch, and 6inch, making it suitable for a wide range of applications. The product is also known for its excellent TTV (total thickness variation) of ≤3µm, which ensures high precision and accuracy in its use.

Some common product application occasions and scenarios for the ZMSH Sapphire0005 include:

  • Optical Windows: Due to its high surface quality and chemical stability, sapphire wafers are an excellent choice for optical windows in applications such as cameras, sensors, and laser systems.
  • Epi-ready: The epi-ready sapphire substrate is a popular choice in the semiconductor industry due to its unique properties such as high thermal conductivity, high electrical insulation, and high strength. It is used in the production of LED, RF, and power devices.
  • Research and Development: Sapphire wafers are commonly used in research and development for their unique properties and versatility. They can be used in a wide range of applications, including optics, electronics, and biotechnology.

In conclusion, the ZMSH Sapphire0005 is a high-quality sapphire wafer product that is suitable for a wide range of applications. Its unique properties, such as high surface quality, chemical stability, and TTV, make it a popular choice in the semiconductor industry and research and development. With its various sizes and excellent supply ability, the ZMSH Sapphire0005 is a versatile and reliable product that can meet the needs of many industries.

Packing and Shipping:

Product Packaging:

The Sapphire Wafer product will be packaged securely to ensure safe delivery. It will be placed in a protective container to prevent any damage during transportation. The container will be labeled with the product name, quantity, and handling instructions.

Shipping:

We offer various shipping options to ensure timely and secure delivery of the Sapphire Wafer product. Our shipping partners are reliable and experienced in handling delicate products like ours. Once the order is placed and payment is confirmed, the product will be shipped within 1-2 business days. The shipping time and cost will depend on the shipping method selected at checkout.



FAQ:

Q: What is the brand name of the sapphire wafer?

A: The brand name of the sapphire wafer is ZMSH.

Q: What certification does the sapphire wafer have?

A: The sapphire wafer is ROHS certified.

Q: What is the minimum order quantity for the sapphire wafer?

A: The minimum order quantity for the sapphire wafer is 25 pieces.

Q: What is the price of the sapphire wafer?

A: The price of the sapphire wafer is determined by the case.

Q: How is the sapphire wafer packaged?

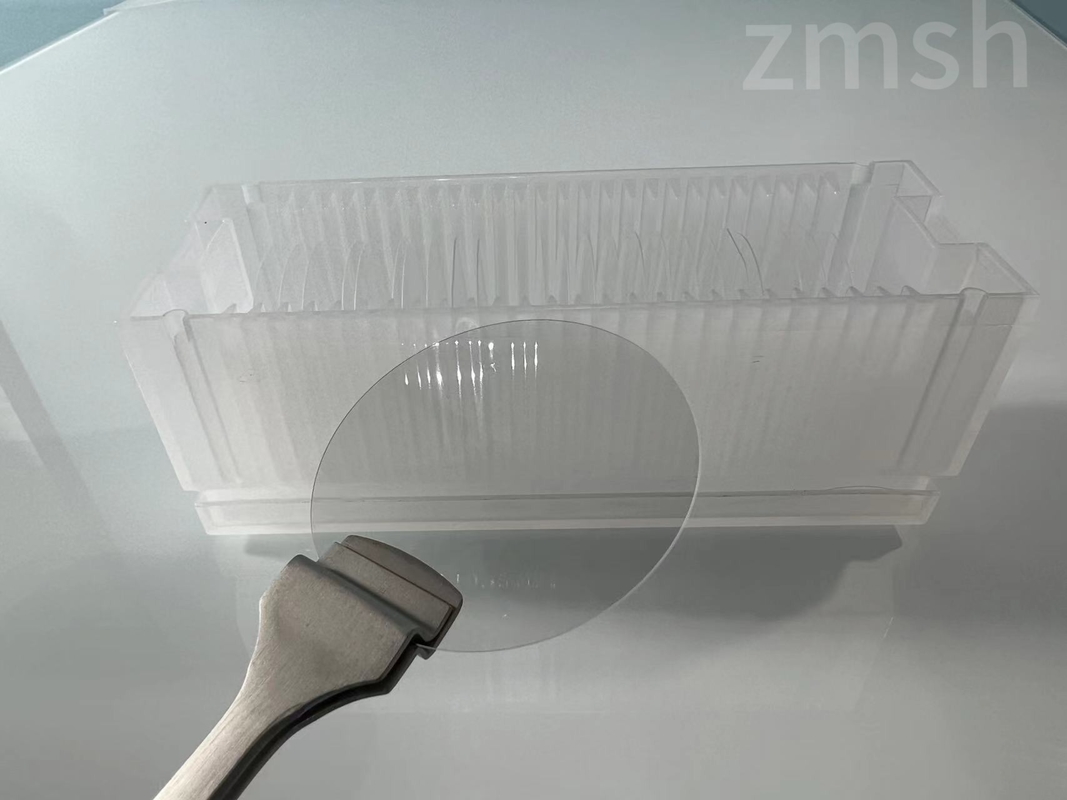

A: The sapphire wafer is packaged in a cassette box containing 25 pieces.

Q: What is the delivery time for the sapphire wafer?

A: The delivery time for the sapphire wafer is within 30 days.

Q: What are the payment terms for the sapphire wafer?

A: The payment terms for the sapphire wafer are T/T.
