Sapphire Glass Tube Transparent Single Crystal Alumina Electro Insulation Properties
  • Sapphire Glass Tube Transparent Single Crystal Alumina Electro Insulation Properties
  • Sapphire Glass Tube Transparent Single Crystal Alumina Electro Insulation Properties
  • Sapphire Glass Tube Transparent Single Crystal Alumina Electro Insulation Properties
  • Sapphire Glass Tube Transparent Single Crystal Alumina Electro Insulation Properties

Sapphire Glass Tube Transparent Single Crystal Alumina Electro Insulation Properties

Place of Origin China
Brand Name ZMSH
Certification ROHS
Model Number Sapphire tube
Product Details
Product Name:
Sapphire Glass Tube
Material:
Monocrystalline Al2O3
Hardness:
Mohs: 9
Density:
3.98 G/cm3
Colour:
Transparent
Purity:
99.999%
High Light:

Electro Insulation Sapphire Glass Tube

,

Transparent Sapphire Glass Tube

,

Single Crystal Sapphire Glass Tube

Product Description

Sapphire glass tube transparent single-crystal alumina electro-insulation properties

Product description

Sapphire capillary tubes, crafted from single crystal sapphire, are renowned for their extraordinary resilience and durability, making them the optimal choice for demanding environments involving extreme physical conditions.

Due to the inherent strength and exceptional properties of sapphire, such as its ability to endure high temperatures, significant pressure levels, and aggressive chemical exposures, these capillary tubes are incredibly reliable in critical applications.Particularly noteworthy is the sapphire capillary tube with an inner diameter of 0.6mm and a wall thickness of 0.2mm, designed to withstand internal pressures exceeding 100 MPa. This capability highlights the tube's robustness in handling high-pressure scenarios without compromise.Leveraging over two decades of expertise, our manufacturing process has been finely tuned to produce sapphire capillary tubes of superior quality.

We are adept at crafting tubes with minute inner diameters as small as 0.1mm, wall thicknesses down to 0.1mm, and lengths that can reach up to 1500mm. This precision in manufacturing allows us to meet the specialized needs of our clients across various industries, ensuring performance and quality that set industry benchmarks. Whether for analytical applications in laboratories, in aerospace engineering, or in high-tech manufacturing processes, our sapphire capillary tubes offer unparalleled performance and reliability.

Product parameter

item Unit Typical Values
Crystal Structure - Hexagonal
Density g/cm3 3.97
Physical Properties
Poisson's Ratio - 0.18~0.29
Vickers Hardness Gpa 22.5
Young's Modulus Gpa 470
Flexural Strength MPa 690
Tensile Strength Mpa 2250
Compressive Strength MPa 2940

Product display

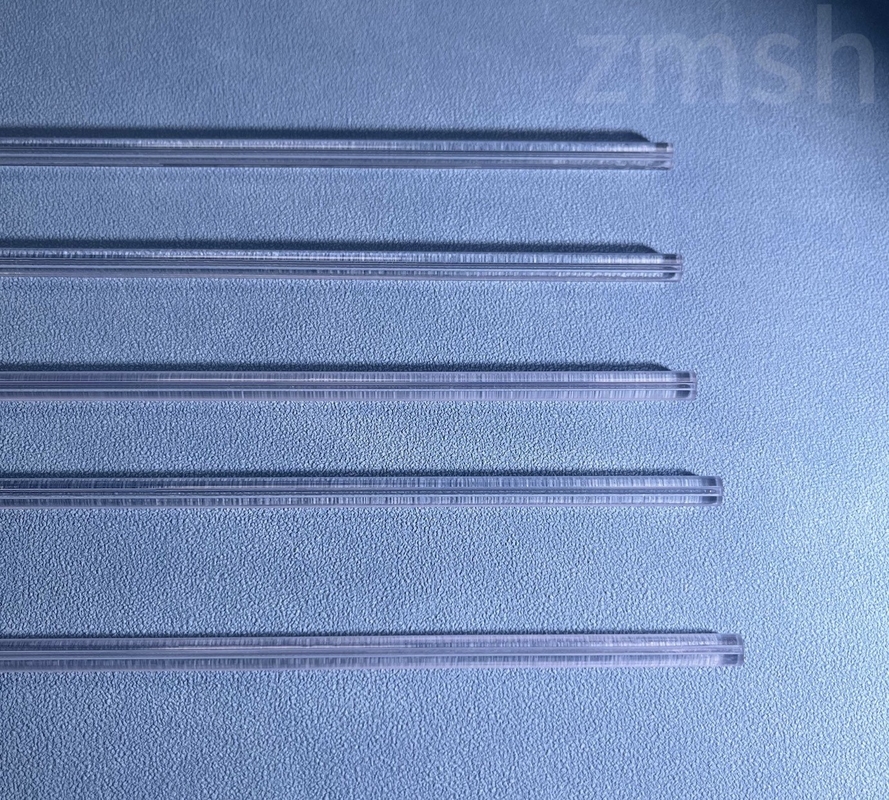

Sapphire Glass Tube Transparent Single Crystal Alumina Electro Insulation Properties 0

Specifications of Sapphire Capillary tube

Inner Diameter: down to 0.1mm
Outer Diameter: down to 0.2mm
Wall Thickness: down to 0.1mm
Dimension Tolerance: ±0.005mm
Concentricity: ±0.05mm
Surface quality: as-grown

Product application

Single Crystal Sapphire is an invaluable substrate material extensively utilized in various high-tech applications due to its superior properties. It serves as an ideal base substrate for the deposition of GaN, pivotal in the manufacturing of blue, green, ultraviolet, and white High Brightness LEDs (HB-LEDs). Its excellent thermal and chemical stability, coupled with its ability to align well with a variety of semiconductor materials, makes it highly effective for thin film deposition, used in HB-LED semiconductors, piezoelectric semiconductors, superconductors, and thin film substrates. Additionally, Single Crystal Sapphire's robustness and mass productivity meet the demands for future larger-size substrates, enhancing its utility in precision devices like MR sensors, precision resistors, and optical devices, as well as in thin film HICO applications. This broad range of applicability underpins its critical role in advancing modern technology sectors.

Product packaging

To ensure the integrity and quality of our sapphire tubes, we employ stringent handling procedures throughout storage and transportation. Every step is carefully monitored to minimize any potential damage, preserving the pristine condition of our products. This meticulous attention to detail guarantees that our customers receive sapphire tubes in their optimal state, ready for high-precision applications.
