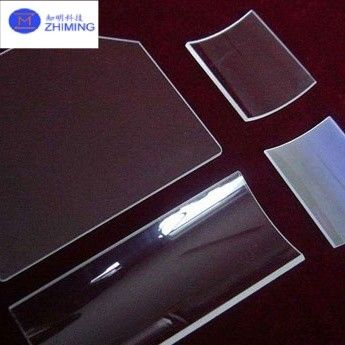

Custom-Shaped Quartz Glass Plates for High-Temperature and Corrosive Environments

Introduction of quartz glass plates

Our custom-shaped quartz glass plates are engineered for extreme-performance environments where traditional materials fail. Made from ultra-pure fused silica (SiO₂ ≥ 99.99%), these plates offer exceptional resistance to high temperatures, rapid thermal cycling, chemical corrosion, and optical degradation.

From protective windows in plasma chambers to UV-transparent covers in photonics and chemical-resistant viewports in analytical systems, we provide precision-fabricated quartz plates tailored to your exact specifications—shape, size, thickness, finish, and performance.

Applications of quartz glass plates

Our quartz glass plates are used across diverse industries where clarity, strength, and resistance to heat and corrosion are mission-critical.

1. Vacuum and Thermal Furnaces

Quartz plates are used as viewports or insulation barriers in vacuum chambers and high-temperature tube or muffle furnaces.

2. Semiconductor Fabrication

Quartz components serve as cover windows, carrier substrates, or chamber liners in CVD, PECVD, and dry etch processes.

3. UV and IR Optical Systems

Because quartz transmits from deep UV (200 nm) to infrared (3.5 μm), it’s ideal for UV curing, laser optics, and thermal imaging.

4. Chemical Processing and Fluid Analysis

Used as reaction windows, flow cell covers, or sensor shields in highly corrosive or acidic conditions.

5. Solar & Green Energy Systems

Quartz serves as light-transmitting covers for CSP tubes, PV concentrators, or high-performance solar receivers.

6. Aerospace and Defense

In harsh or high-altitude conditions, quartz shields thermal sensors, targeting optics, or onboard analytical equipment.

7. Analytical and Medical Instruments

Used as transparent, inert windows or sample holders in XRF, spectroscopy, TGA, or bioassay setups.

Key Features of quartz glass plates

Ultra-High Purity Material

• ≥99.99% SiO₂ fused quartz
• No metallic impurities, ideal for cleanroom and semiconductor use

Thermal Resistance

• Continuous working temperature: up to 1100°C
• Shock-resistant for rapid heating and cooling cycles

Chemical Inertness

• Resistant to acids, alkalis, solvents, halogens, and plasma
• Ideal for aggressive or reactive gas/vapor environments

Broad Optical Transmission

• Transmission from 200–3500 nm
• Custom coatings available (AR, UV, IR)

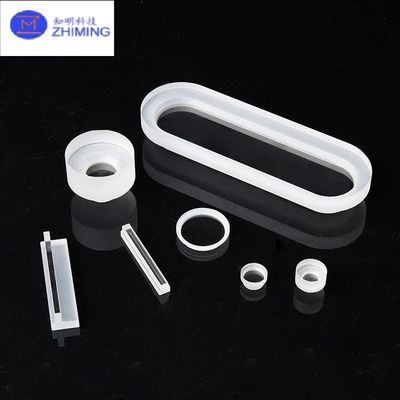

Custom Shape Options

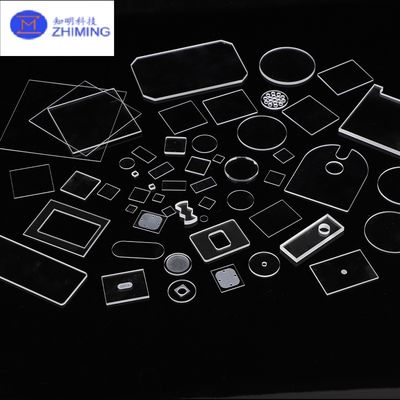

• Round, square, oval, slotted, hexagonal, multi-aperture
• Edge options: beveled, chamfered, ground, or polished

Precision Surface Finish

• Optical polishing: λ/10 flatness, <5Å surface roughness
• Machining tolerances up to ±0.01 mm

Specifications of quartz glass plates

Q&A

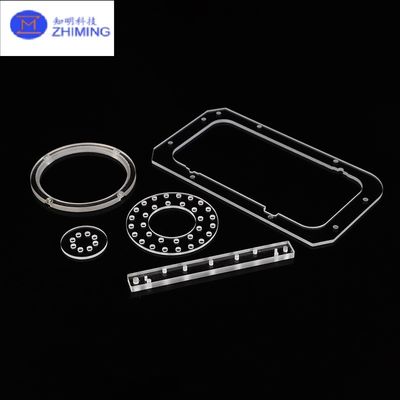

Q1: Can I get a custom hole, notch, or slot in the quartz plate?

Yes! We support precision CNC cutting, laser drilling, and shaped edges according to your CAD drawing or specifications.

Q2: Are coatings available for better optical performance?

Yes. We offer anti-reflective (AR), UV-enhancing, IR-pass, and protective coatings. Dual- or multi-band coatings are also available.

Q3: Do you support large batch production?

Yes! We provide volume manufacturing, including tooling and private labeling for OEM customers.

Our Services

Beyond materials, we offer a complete suite of engineering and fabrication services to help you bring your design to life.

Custom Fabrication

• CNC machining, edge processing, hole drilling, complex shaping
• Shape options: round, square, oval, trapezoidal, flanged

Surface & Coating Services

• Optical polishing (λ/10), scratch/dig 10/5
• AR, UV-enhanced, IR-pass, or custom multi-layer coatings
• Etching, surface patterning, or branding available

OEM Manufacturing & Large-Scale Production

• Small to high-volume runs
• Private label and part serialization
• Mold/tooling development for high consistency

Inspection & Clean Packaging

• Cleanroom-ready packaging
• Inspection reports (optical, dimensional, flatness)
• Vacuum or nitrogen-purged packaging available
