Custom Fused Quartz Vacuum Suction Plate for Semiconductor Wafer Handling

Custom Fused Quartz Vacuum Suction Plate for Semiconductor Wafer Handling

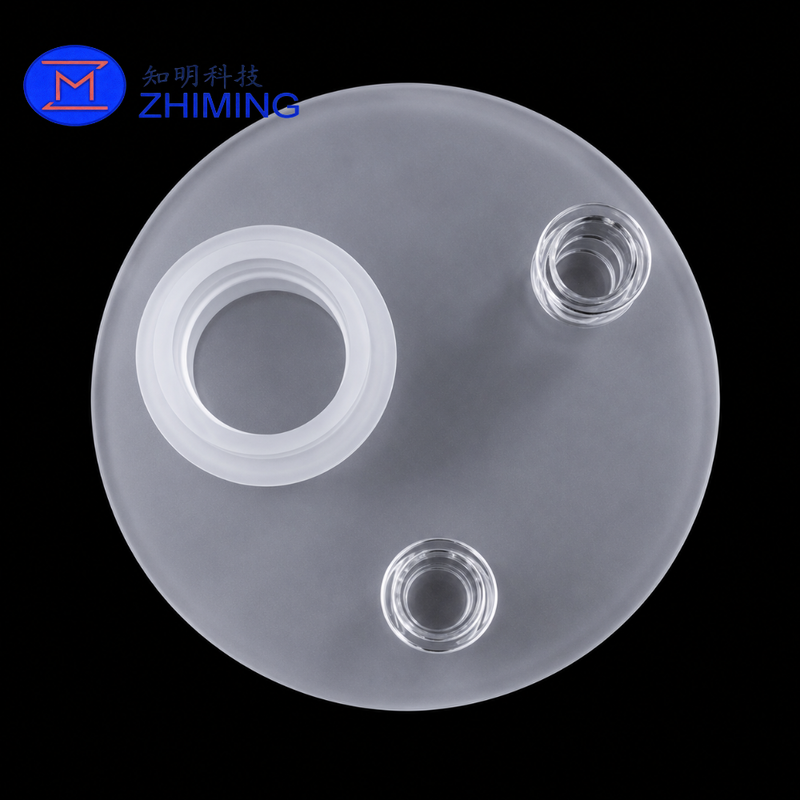

The custom fused quartz vacuum suction plate—also known as a quartz vacuum chuck, quartz suction disc, or quartz wafer holder—is used to support, position, and hold wafers or precision substrates through controlled vacuum adsorption.

Manufactured from high-purity fused quartz, the component combines low thermal expansion, excellent chemical resistance, high-temperature stability, and low contamination potential. It is suitable for semiconductor, photovoltaic, optical, laboratory, and other high-purity processing environments.

The plate can be manufactured with customized vacuum channels, central openings, quartz tubes, ports, stepped interfaces, and welded connection structures. Dimensions and surface conditions are produced according to the customer’s equipment design and operating requirements.

Key Features

High-Purity Fused Quartz

Made from high-quality fused silica with low metallic impurity levels, helping minimize contamination during wafer handling and substrate processing.

Low Thermal Expansion

The low coefficient of thermal expansion helps the plate maintain dimensional stability when exposed to temperature changes.

Chemical Resistance

Fused quartz provides excellent resistance to many acids and process chemicals used in semiconductor and laboratory environments. Compatibility with hydrofluoric acid, hot alkaline solutions, and specific process media should be evaluated separately.

Customized Vacuum Structure

Vacuum ports, central openings, gas connections, liquid-transfer ports, grooves, and welded quartz tubes can be designed according to the equipment layout.

Precision Surface Processing

Grinding, mechanical polishing, fire polishing, lapping, and cleaning options are available to meet different requirements for flatness, sealing, cleanliness, and surface condition.

Drawing-Based Manufacturing

Each quartz vacuum suction plate can be manufactured from a technical drawing, physical sample, equipment dimensions, or application specifications.

Product Specifications

Maximum dimensions, achievable tolerances, thermal conditions, vacuum level, and pressure limitations should be evaluated according to the final design and operating environment.

Typical Applications

• Semiconductor wafer handling equipment
• Wafer vacuum adsorption and positioning
• Precision substrate alignment systems
• Quartz process chambers and reaction systems
• Wet benches and chemical-processing equipment
• Solar cell and photovoltaic wafer processing
• Glass and optical substrate handling
• Laboratory vacuum systems
• High-purity chemical equipment
• Customized semiconductor quartz assemblies

Custom Design Options

The quartz vacuum plate can be customized with:

• Central through-holes or recessed openings
• Multiple vacuum suction ports
• Vacuum distribution grooves and channels
• Welded quartz tubes and connectors
• Straight, angled, or stepped ports
• Quartz flange connections
• Custom hole patterns
• Local polished or matte areas
• Chamfered or rounded edges
• Positioning holes or alignment features
• Transparent, translucent, or matte surface conditions

Vacuum-channel geometry and suction-hole distribution should be designed according to wafer size, substrate thickness, required holding force, and allowable contact area.

Manufacturing Capabilities

We provide integrated quartz fabrication services, including:

• Large-diameter fused quartz plate fabrication
• Precision CNC machining
• Hole drilling and profile cutting
• Vacuum groove and channel machining
• Quartz tube and port welding
• Quartz flange fabrication
• Surface grinding, lapping, and polishing
• Edge chamfering and rounding
• Thermal annealing
• Ultrasonic and high-purity cleaning
• Dimensional and visual inspection

Complex opening layouts, welded ports, and custom connection structures can be manufactured according to detailed technical drawings.

Advantages of Fused Quartz Vacuum Plates

Compared with conventional metal, plastic, or standard glass components, fused quartz offers several advantages for high-purity processing:

• Low risk of metallic contamination
• Excellent thermal stability
• Low coefficient of thermal expansion
• Good resistance to many process chemicals
• Suitable for cleanroom and high-purity applications
• Transparent or translucent construction for process observation
• High dimensional stability under controlled operating conditions
• Customizable ports, openings, grooves, and connection structures

The suitability of fused quartz should be confirmed according to the required mechanical load, vacuum level, thermal cycling conditions, and chemical environment.

Information Required for Quotation

Please provide the following information for technical evaluation and quotation:

1. Overall diameter or external dimensions
2. Plate thickness
3. Central opening dimensions
4. Quantity, diameter, and position of vacuum ports
5. Vacuum-groove or channel layout
6. Port, tube, or flange connection dimensions
7. Surface-finish requirements
8. Flatness and dimensional tolerances
9. Working temperature and thermal-cycle conditions
10. Vacuum level or operating pressure
11. Process chemicals or gases in contact with the component
12. Required quantity
13. Technical drawing, physical sample, or equipment photograph

A dimensioned drawing is recommended for components requiring precise port positioning, vacuum-channel geometry, or tight assembly tolerances.

Quality Inspection

Depending on the drawing and application, each quartz suction plate can be inspected for:

• Overall diameter and thickness
• Opening and port dimensions
• Port-position accuracy
• Flatness and parallelism
• Surface condition
• Vacuum-groove geometry
• Weld integrity
• Edge quality
• Chips, cracks, scratches, and other visual defects
• Cleanliness
• Packaging protection

Each component is individually protected with foam, film, or customized packaging to reduce the risk of scratching, impact, and breakage during transportation.

FAQ

1. Can the plate diameter and vacuum-port positions be customized?

Yes. The diameter, thickness, opening dimensions, port quantity, port size, groove layout, and port positions can be manufactured according to your drawing.

2. Can you manufacture the quartz suction plate from a physical sample?

Yes. We can evaluate and reproduce a component from a physical sample. However, a dimensioned technical drawing is recommended when precise tolerances or port positions are required.

3. Can vacuum grooves or channels be machined into the quartz plate?

Yes. Customized grooves, channels, recessed areas, and suction-hole patterns can be machined according to the required vacuum distribution and substrate-contact design.

4. What surface finishes are available?

Available finishes include ground, matte, lapped, mechanically polished, and fire-polished surfaces. The appropriate finish depends on the required flatness, sealing performance, optical condition, and cleanliness.

5. Is fused quartz suitable for semiconductor equipment?

Yes. Fused quartz is widely used in semiconductor equipment because of its high purity, thermal stability, chemical durability, and low metallic contamination potential.

6. Can quartz tubes or connection ports be welded onto the plate?

Yes. Quartz tubes, vacuum ports, joints, and flange structures can be welded onto the plate according to the required gas, vacuum, or liquid connection design.

7. Can you guarantee a specific flatness tolerance?

Flatness capability depends on the plate diameter, thickness, opening layout, welded structures, and surface finish. Please provide the drawing and required tolerance for technical evaluation.

8. Can the plate be used under positive pressure?

The product is primarily intended for vacuum adsorption and positioning. Positive-pressure applications require a separate assessment of the geometry, wall thickness, welded joints, temperature, and safety conditions.
