2Inch 3inch 4inch r-Axis  m-plane a-axis Sapphire Wafer substrate

2Inch 3inch 4inch r-Axis m-plane a-axis Sapphire Wafer substrate

  • High Light

    sapphire substrate

    ,

    custom sapphire glass

  • Material
    99.999% Al2O3
  • Industry
    Led,optical Glass,eli-ready Wafer
  • Application
    Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics
  • Color
    White Or Red Or Blue
  • Vision Light Transmissivity
    85%
  • Advantagement
    High Hardness9.0,wear Resistance,
  • Type
    Single Crystal
  • Orientation
    R-plane
  • Place of Origin
    china
  • Brand Name
    zmsh
  • Model Number
    2inch R
  • Minimum Order Quantity
    25pcs
  • Price
    by case
  • Packaging Details
    Vacuum-sealed containers with nitrogen backfill in a class 100 environment
  • Delivery Time
    10-20days
  • Supply Ability
    1000pcs/months

2Inch 3inch 4inch r-Axis m-plane a-axis Sapphire Wafer substrate

2inch R-axis sapphire wafer for epi-ready test ,sapphire optical windows, R-axis 2inch sapphire epi-ready​ substrate
2Inch 3inch 4inch r-Axis m-plane a-axis Sapphire Wafer substrate
1. Description
Sapphire is one of the hardest materials, and possesses very good transmission during the range of visible and near IR spectrum.It is widely used as optical window in infrared and far infrared military equipments, apparatus and instruments of satellite and space technology, and navigation and spaceflight, such as night infrared scope/sight and night vision camera, etc.The sapphire crystal window is intensively applied in high-tech fields.

Sapphire optical windows are ideal for applications where high pressure, vacuum, or corrosive atmospheres are a consideration. Sapphire, a single crystal form of Al2O3, is resistant to attack by strong acids due to its high dielectric constant. It has high compressive strength and a high melting point. It is also resistant to UV radiation darkening.

sapphire application: sapphire optical lens ,sapphire ball, sapphire bearing ,sapphire led wafer, sapphire watch glass lens.
Specification:
Single crystal Al2O3 99.999%
Orientation: R-axis 0.5°

Diameter:50.8±0.1mm

Thickness :430±15um or 330±15um

Primary flat:16±1mm

OF Orientation flat: Off R to C axis 45°±0.1° C-plane(0001)

Frontside Surface Roughness:Ra<0.2nm

Backside Surface Roughness: 0.8~1.2um ( Or double side polished, both side Ra<0.2nm)

TTV:<10um BOW:-10~0um WARP:<10um

Laser Mark Series No. by needs

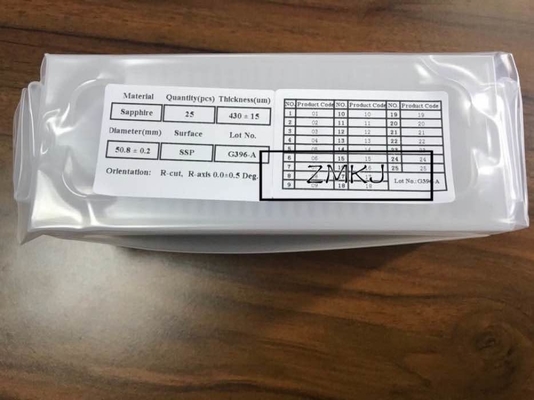

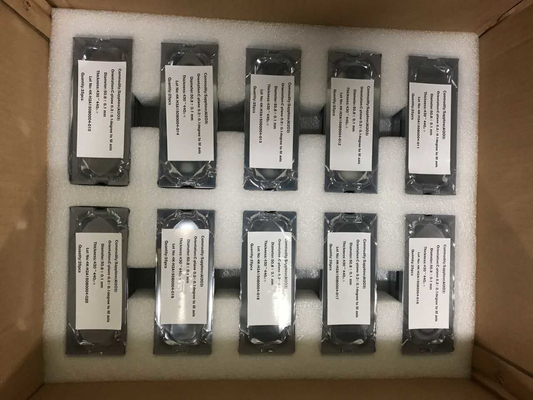

Package:Vacuum-sealed containers with nitrogen backfill in a class 100 environment

Cleanliness :Free visible contamination



2. QC Standard

2Inch 3inch 4inch r-Axis  m-plane a-axis Sapphire Wafer substrate 02Inch 3inch 4inch r-Axis  m-plane a-axis Sapphire Wafer substrate 12Inch 3inch 4inch r-Axis  m-plane a-axis Sapphire Wafer substrate 2

2Inch 3inch 4inch r-Axis  m-plane a-axis Sapphire Wafer substrate 3

3. FAQ:

1. Can you accept OEM?
Yes!.We can manufacture as per your request specification.
2. Can you deliver the goods via our shipping agent?
Yes, we could help you make the delivery using your shipping agent
3. What about your After-sales service?
Yes.We promise that we can change or refund products if there are any quality problem.



If you need more professional help, please contact us. Our technical engineers

would like to give advices according to your requirements





2Inch 3inch 4inch r-Axis  m-plane a-axis Sapphire Wafer substrate 4



we also provide other materials semiconductor wafer as likes SiC, GaN, GaAs, InP .
