Sapphire Parts
Created with Pixso. 2 / 3 Inch Sapphire Parts , Sapphire Substrate 0.4mm Thickness High Working Temperature
  • name
  • name
  • name
  • name

2 / 3 Inch Sapphire Parts , Sapphire Substrate 0.4mm Thickness High Working Temperature

Brand Name: zmkj
Model Number: 2inch 3inch
MOQ: 25pcs
Price: by case
Delivery Time: 5-20days
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Material:
Al2O3 Single Crystal SAPPHIRE
Orientation:
Common C
Tolerance:
10um
Surface:
Ssp Or Dsp
Size:
2inch ,3inch
Thickness:
0.4mm
Packaging Details:
casttle case in 100 grade cleaning room
Supply Ability:
5000pcs
Highlight:

sapphire bearings

,

sapphire tube

Product Description

2inch 3inch 0.43mm single side polished SSP 0.4mm DSP thickness sapphire Al2O3 crystals substrate wafers for epi-ready,



other size as like 2inch ,3inch ,4inch ,5inch ,6inch ,8inch ,10inch and customized size sapphire wafer ＆ optical lens also can be provide.



Sapphire Substrate Features

  • High working temperature
  • Good thermal conducitivity
  • Superior machanical properties
  • High anti corrosion
  • Stable dielectric constant&low dielectric loss
  • Excellent light transmission

Sapphire Substrate Application

  • Blue LED substrate
  • semiconductor template bulk substrate
  • Electronics and optoelectronics glass windows
  • UV and IR optics
  •  cooling Submount
  • ultralow temperature slide glass

Common Size For Wafer ＆ Optical Lens

Item 2″ 50.8mm                                 3inch 76.2mm
Crystal LED Grade Sapphire
Sapphire Purity ≥99.9996%
Color Transparent
Orientation C plane tiled M axis 0.20°±0.1°
Diameter 50.8±0.1mm                                   76.2±0.1mm
Thickness 430±10um                    or 400±10um
Primary Flat location A-axis±0.2°
Flat length 16.0±1mm                                     22±1mm
Front Side Surface Mirror polished , EPI Ready
Surface Roughness Ra<3A
Back Side Roughness

Fine ground, Ra=1.0±0.2um

( or doule side polised 2sp)


TTV ≤10um
LTV ≤2.5um(8mm*8mm)
BOW ≤- 15um
Warp ≤15um
Product Name
Sapphire window
Material
Sapphire crystal
Color
transparent
Diameter Tolerance
+/-0.02mm
Surface quality
SD 20/10; 40/20;60/40;80/50
Clear Aperture
>90% of Diameter
Chamfer
0.25mm*45 degree
Application
For optical use

Sample products in details

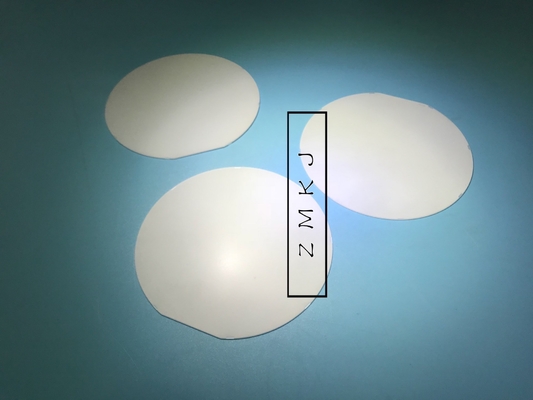

2 / 3 Inch Sapphire Parts , Sapphire Substrate 0.4mm Thickness High Working Temperature 0

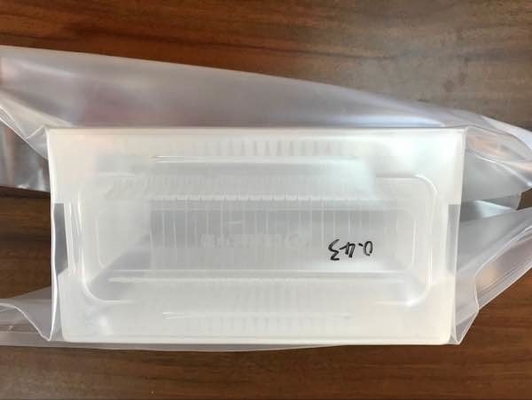

2 / 3 Inch Sapphire Parts , Sapphire Substrate 0.4mm Thickness High Working Temperature 1





Inspection Date

2 / 3 Inch Sapphire Parts , Sapphire Substrate 0.4mm Thickness High Working Temperature 2



2 / 3 Inch Sapphire Parts , Sapphire Substrate 0.4mm Thickness High Working Temperature 3
