Germanium Single Crystals Indium Phosphide Wafer Customized Ge Optical Lens 4 / 6 Inch

Product Details

Place of Origin: CHINA

Brand Name: zmkj

Model Number: Ge-001

Payment & Shipping Terms

Minimum Order Quantity: 3pcs

Price: by case

Packaging Details: single wafer case

Delivery Time: 1-4weeks

Supply Ability: 1000pcs/month

Get Best Price
Highlight:

inp wafer

,

gap wafer

Materials:
Ge Single Crystal
Industry:
Semiconductor Substrates,device,optical
Color:
Black
Diameter:
0.5~150mm
Surface:
Polished
Thickness:
0.1-150mm
Type:
N-type,
Materials:
Ge Single Crystal
Industry:
Semiconductor Substrates,device,optical
Color:
Black
Diameter:
0.5~150mm
Surface:
Polished
Thickness:
0.1-150mm
Type:
N-type,
Germanium Single Crystals Indium Phosphide Wafer Customized Ge Optical Lens 4 / 6 Inch

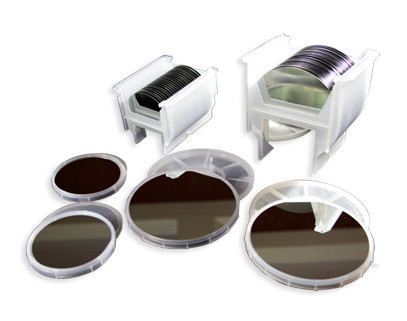

4inch 6inch Germanium Single Crystals Ge substrates Wafers,customized Ge optical lens



Germanium substrates

Application: germanium wafer used in production of semiconductor device, infrared ray optical device, sinking material of solar cell.



Main Property Terms
Production Method Czochralski method(CZ)
Crystal Structure Cube
Lattice Constant a=5.65754Å
Density 5.323g/cm3
Melting Point 937.4℃
Doped material None doped or Sb doped Indium or Gallium Doped
Type /N P
Resistivity >35Ωcm0.05Ωcm 0.05~0.1Ωcm
EPD <4×103⁄cm2<4×103⁄cm2 <4×103⁄cm2
Size 10x3,10x5,10x10,15x15,,20x15,20x20,
  dia2”x0.33mmdia2”x0.43mm15x15mm
Thickness 0.5mm,1.0mm
Polishing Single face or double face
Orientation <100>,<110>,<111>,±0.5º
Crystal face Directional Accuracy ±0.5°
Edge Directional Accuracy 2°(Special request could be customized under 1°)
Bevel Shearing Directional Accuracy Customized by special request, process edge direction by special angle (inclination 1°-45°)of wafer
Ra: ≤5Å(5µm×5µm)
Package 100 Grade Cleaning Bag,1000Grade Super Cleaning Room



4inch 6inch N-type germaniumGe VGF method substrates wafers ,customized Ge optical lens



Germanium (Ge) is the preferred lens and window material for high performance infrared imaging systems in the 8–12 um wavelength band. Its high refractive index makes Ge ideal for low power imaging systems because of minimum surface curvature. Chromatic aberration is small, often eliminating the need for correction.
Germanium is most widely used for lenses and windows in IR systems operating in the 2 um - 12 um range. Its transmission is very temperature sensitive, becoming opaque near 100°C. Environment does not cause problems because Germanium is inert, mechanically rugged, and fairly hard.
Germanium is a high index material that is used to manufacture Attenuated Total reflection (ATR) prisms for spectroscopy. Its refractive index is such that germanium makes an effective natural 50% beamsplitter without the need for coatings. It is also used extensively as a substrate for production of optical filters. Germanium covers the whole of the 8-14 micron thermal band and is used in lens systems for thermal imaging. It can be AR coated with diamond producing an extremely tough front optic.
Application as window, lens, beamsplitter, ATR prism or filter in spectrometers and in thermal imaging.



we can provide 6 inch VGF method "zero dislocation" solar cell with germanium substrate enterprise. Products are widely used in space satellite solar cells at high power, high altitude reconnaissance uav, the ground concentrated solar power plant (CPV average photoelectric conversion efficiency is double times of the silicon solar power station, ultra-high brightness LED substrate used car. The factory has successfully developed an 8-inch solar germanium substrate with an international leading level, which will lay the foundation for future market expansion.



Ge wafer:

Growth Method VGF
Dopant p-type: Ga n-type: As
Wafer Shape Round (DIA: 2’’, 3’’, 4’’, 6")
Surface Orientation * (100)±0.5°
* Other Orientations maybe available upon request
Resistivity (Ω.cm) As Required
Etch Pitch Density (cm2) ≤ 300
Thickness (µm) 175±25 (or as required)
TTV [P/P] (µm) ≤ 10
WARP (µm) ≤ 15
IF** (mm) 32.5±1
**If needed by customer
Surface front side polished E/E, P/E, P/G





Products Feature For Optical Ge lens
applications: infrared optical lens Absorptivity ≤0.03
diameter(mm) : 12mm-380mm Modulus of rupture ≥75
length(mm): customized Hardness(kg/cm2): 800
resistance : 1-50Ω, ≥50Ω Density(g/cm3): 5.33
: 10% Young modulus(Gpa): 103
orientation: 111 Poisson's ratio: 0.28



off orientation:

0.5º Thermal conductivity(Wm-1k-1): 59
type: N type thermal expansivity 6.1
refractive index(10µm): 4.0026 Specific heatCal/(g.k): 0.074
  <1×10ˉ4 Melting point(℃): 937

thermal refractive index coefficient

(10.6µm,10ˉ6/℃ˉ1):

400 Dielectric constant | permittivity:16 16



Optical windows finished products
Ge wafer for optical grade:
SL.No Material Specifications:
1 Crystalline Form : Polycrystalline
2 Conductivity Type : n-type
3 Absorption Coefficient, at 25°C 0.035cm-1 max @10.6µm
4 Typical Resistivity : 3-40 ohm-cm
5 size dia1-150mmxthickness0.5-20mm
6 Mohs Hardness : 6.3
7 Oxygen Content : < 0.03 ppm
8 Holes and Inclusions: <0.05 mm
9 surface lapped/1sp/2sp
10 S/D 40/20,20/10,60/40,80/50,
