4H-N 4 Inch Silicon Nitride SiC Substrate Dummy Grade SiC Substrate For High Power Devices

Product Details

Place of Origin: China

Brand Name: ZMSH

Model Number: 4H

Payment & Shipping Terms

Minimum Order Quantity: 3pcs

Price: by case

Packaging Details: Packaged in a class 100 clean room environment, in cassettes of single wafer containers

Delivery Time: 10-30days

Payment Terms: T/T, Western Union

Supply Ability: 1000pcs/months

Get Best Price
Highlight:

dummy grade SiC Substrate

,

4 inch SiC Substrate

,

4H-N silicon nitride substrate

Material:
Sic Crystal
Industry:
Semiconductor Wafer Optical Lens
Application:
Semiconductor, Led, Device, Power Electronics,5G
Color:
Green, White
Type:
4H-N And 4H-Semi, Un-doped
Size:
6inch (2-4inch Also Available)
Thickness:
350um Or 500um
Tolerance:
±25um
Grade:
Zero/ Production/Research/Dummy
Ttv:
<15um
BOW:
<20UM
Warp:
《30um
Customzied Service:
Avaiable
Material:
Silicon Carbide (SiC)
Raw Material:
China
Material:
Sic Crystal
Industry:
Semiconductor Wafer Optical Lens
Application:
Semiconductor, Led, Device, Power Electronics,5G
Color:
Green, White
Type:
4H-N And 4H-Semi, Un-doped
Size:
6inch (2-4inch Also Available)
Thickness:
350um Or 500um
Tolerance:
±25um
Grade:
Zero/ Production/Research/Dummy
Ttv:
<15um
BOW:
<20UM
Warp:
《30um
Customzied Service:
Avaiable
Material:
Silicon Carbide (SiC)
Raw Material:
China
4H-N 4 Inch Silicon Nitride SiC Substrate Dummy Grade SiC Substrate For High Power Devices

4H-N 4H-SEMI 2inch 3inch 4inch 6Inch SiC Substrate Production grade dummy grade for High-Power Devices



H High Purity Silicon Carbide Substrates,high purity 4inch SiC substrates ,4inch Silicon Carbide substrates for semiconductor, Silicon Carbide substrates for semconductor ,sic single crystal wafers ,sic ingots for gem​



Application areas



1 high frequency and high power electronic devices Schottky diodes, JFET, BJT, PiN, diodes, IGBT, MOSFET

2 optoelectronic devices: mainly used in GaN/SiC blue LED substrate material (GaN/SiC) LED



advantagement

• Low lattice mismatch
• High thermal conductivity
• Low power consumption
• Excellent transient characteristics
• High band gap



Silicon Carbide SiC crystal substrate wafer carborundum





4H-N and 4H-SEMI SiC (Silicon Carbide) substrates, available in a range of diameters such as 2-inch, 3-inch, 4-inch, and 6-inch, are widely utilized for the fabrication of high-power devices due to their superior material properties. Here are the key properties of these SiC substrates, making them ideal for high-power applications:

  1. Wide Bandgap: 4H-SiC has a wide bandgap of about 3.26 eV, which allows it to operate efficiently at higher temperatures, voltages, and frequencies compared to traditional semiconductor materials like silicon.

  2. High Breakdown Electric Field: SiC's high breakdown electric field (up to 2.8 MV/cm) enables devices to handle higher voltages without breakdown, making it essential for power electronics such as MOSFETs and IGBTs.

  3. Excellent Thermal Conductivity: SiC has a thermal conductivity around 3.7 W/cm·K, significantly higher than silicon, allowing it to dissipate heat more effectively. This is crucial for devices in high-temperature environments.

  4. High Saturation Electron Velocity: SiC offers a high electron saturation velocity, enhancing the performance of high-frequency devices, which are used in applications such as radar systems and 5G communication.

  5. Mechanical Strength and Hardness: The hardness and robustness of SiC substrates ensure long-term durability, even in extreme operating conditions, making them highly suitable for industrial-grade devices.

  6. Low Defect Density: Production-grade SiC substrates are characterized by low defect densities, ensuring optimal device performance, whereas dummy-grade substrates may have a higher defect density, suitable for testing and equipment calibration purposes.

These properties make 4H-N and 4H-SEMI SiC substrates indispensable in the development of high-performance power devices used in electric vehicles, renewable energy systems, and aerospace applications.



SILICON CARBIDE MATERIAL PROPERTIES



Property 4H-SiC, Single Crystal 6H-SiC, Single Crystal
Lattice Parameters a=3.076 Å c=10.053 Å a=3.073 Å c=15.117 Å
Stacking Sequence ABCB ABCACB
Mohs Hardness ≈9.2 ≈9.2
Density 3.21 g/cm3 3.21 g/cm3
Therm. Expansion Coefficient 4-5×10-6/K 4-5×10-6/K
Refraction Index @750nm

no = 2.61

ne = 2.66

no = 2.60

ne = 2.65

Dielectric Constant c~9.66 c~9.66
Thermal Conductivity (N-type, 0.02 ohm.cm)

a~4.2 W/cm·K@298K

c~3.7 W/cm·K@298K


Thermal Conductivity (Semi-insulating)

a~4.9 W/cm·K@298K

c~3.9 W/cm·K@298K

a~4.6 W/cm·K@298K

c~3.2 W/cm·K@298K

Band-gap 3.23 eV 3.02 eV
Break-Down Electrical Field 3-5×106V/cm 3-5×106V/cm
Saturation Drift Velocity 2.0×105m/s 2.0×105m/s



2. substrates size of standard for 6inch

6 inch Diameter 4H-N &Semi Silicon Carbide Substrate Specifications
SUBSTRATE PROPERTY Zero Grade Production Grade Research Grade Dummy Grade
Diameter 150 mm-0.05 mm
Surface Orientation off-axis: 4°toward <11-20> ± 0.5°   for 4H-N

On axis: <0001>±0.5°for 4H-SI

Primary Flat Orientation

{10-10} ±5.0° for 4H-N/  Notch for 4H-Semi

Primary Flat Length 47.5 mm ± 2.5 mm
Thickness 4H-N  STD 350±25um  or customzied 500±25um
Thickness 4H-SEMI 500±25um  STD
Wafer Edge Chamfer
Micropipe Density For 4H-N <0.5 micropipes/ cm2 ≤2micropipes/ cm2 ≤10 micropipes/ cm2

≤15 micropipes/ cm2



Micropipe Density For 4H-SEMI <1 micropipes/ cm2 ≤5micropipes/ cm2 ≤10 micropipes/ cm2 ≤20 micropipes/ cm2
Polytype areas by high-intensity light             None permitted ≤10% area
Resistivity for 4H-N         0.015 Ω·cm~0.028 Ω·cm  (area 75%)0.015Ω·cm~0.028 Ω·cm
Resistivity for 4H-SEMI

           ≥1E9 Ω·cm


LTV/TTV/BOW/WARP

           ≤3 μm/≤6 μm/≤30 μm/≤40 μm

5 μm/≤15 μm/≤40 μm/≤60 μm

Hex Plates By High Intensity Ligh

Cumulative area ≤0.05%

Cumulative area ≤0.1%

Silicon Surface Contamination by High Intensity Light

               NONE



Visual Carbon Inclusions



Cumulative area ≤0.05%

Cumulative area ≤3%

Polytype Areas By High Intensity Light



 NONE

Cumulative area≤3%

Delivery Sample

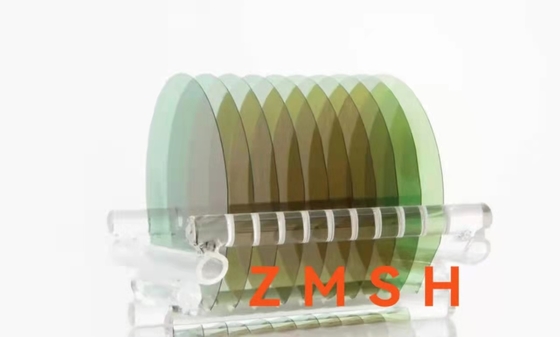

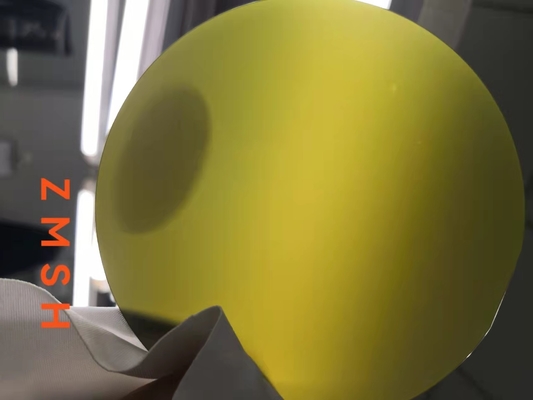

4H-N 4 Inch Silicon Nitride SiC Substrate Dummy Grade SiC Substrate For High Power Devices 04H-N 4 Inch Silicon Nitride SiC Substrate Dummy Grade SiC Substrate For High Power Devices 1

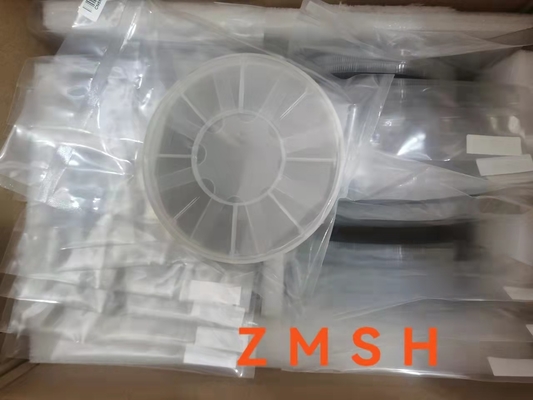

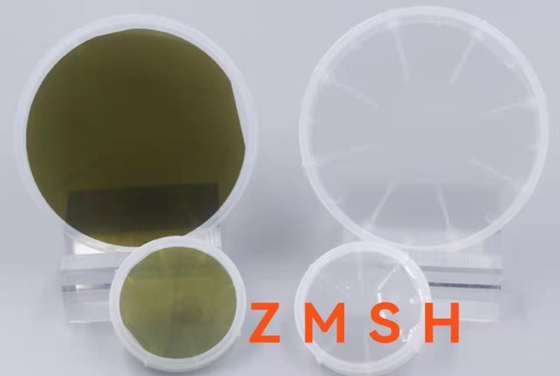

4H-N 4 Inch Silicon Nitride SiC Substrate Dummy Grade SiC Substrate For High Power Devices 24H-N 4 Inch Silicon Nitride SiC Substrate Dummy Grade SiC Substrate For High Power Devices 3



The Other Services we can provide

 1.Customized thickness wire-cut     2. customized size chip slice        3. cuotomized  shape lens

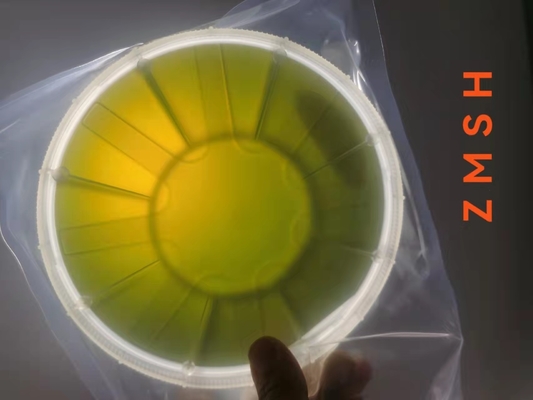

4H-N 4 Inch Silicon Nitride SiC Substrate Dummy Grade SiC Substrate For High Power Devices 44H-N 4 Inch Silicon Nitride SiC Substrate Dummy Grade SiC Substrate For High Power Devices 54H-N 4 Inch Silicon Nitride SiC Substrate Dummy Grade SiC Substrate For High Power Devices 6



The Other Similar Products we can provide

4H-N 4 Inch Silicon Nitride SiC Substrate Dummy Grade SiC Substrate For High Power Devices 7



FAQ:

Q: What's the wayof shipping and cost and pay term ?

A:(1) We accept 50% T/T In advance  and left 50% before delivery by  DHL, Fedex, EMS etc.

(2) If you have your own express account, it's great.If not,we could help you ship them.

Freight is in accordance with the actual settlement.



Q: What's your MOQ?

A: (1) For inventory, the MOQ is 3pcs.

(2) For customized products, the MOQ is 10pcs up.



Q: Can I customize the products based on my need?

A: Yes, we can customize the material, specifications and shape, size  based on your needs.



Q: What's the delivery time?

A: (1) For the standard products

For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 or 3 weeks after you place the order.

(2) For the special-shaped products, the delivery is 4 workweeks after you place the order.
