Custom Conductive Type SiC Wafer For High Temperature High Voltage Power Device Solar Photovoltaic

• Hardness

There are numerous advantages to using silicon carbide over more traditional silicon substrates. One of the major advantages is its hardness. This gives the material many advantages, in high speed, high temperature and/or high voltage applications.

Silicon carbide wafers have high thermal conductivity, which means they can transfer heat from one point to another well. This improves its electrical conductivity and ultimately miniaturization, one of the common goals of switching to SiC wafers.

• ​Thermal capabilities

​​High resistance to thermal shock. This means they have the ability to change temperatures rapidly without breaking or cracking. This creates a clear advantage when fabricating devices as it is another toughness characteristic that improves the lifetime and performance of silicon carbide in comparison to traditional bulk silicon.

Classification

The silicon carbide SiC industrial chain is divided into substrate material preparation, epitaxial layer growth, device manufacturing and downstream applications. Silicon carbide monocrystals are usually prepared by physical vapor transmission (PVT method), and then epitaxial sheets are generated by chemical vapor deposition (CVD method) on the substrate, and the relevant devices are finally made. In the industrial chain of SiC devices, due to the difficulty of substrate manufacturing technology, the value of the industrial chain is mainly concentrated in the upstream substrate link.

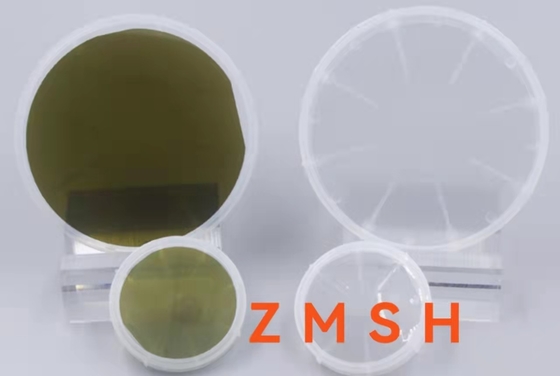

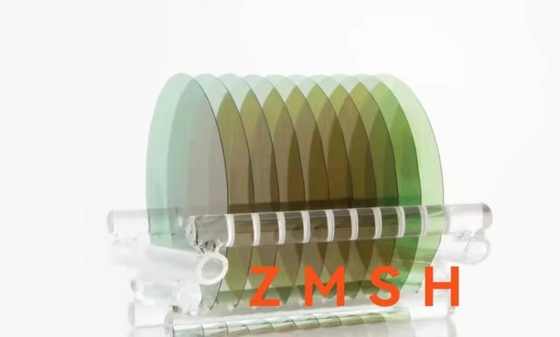

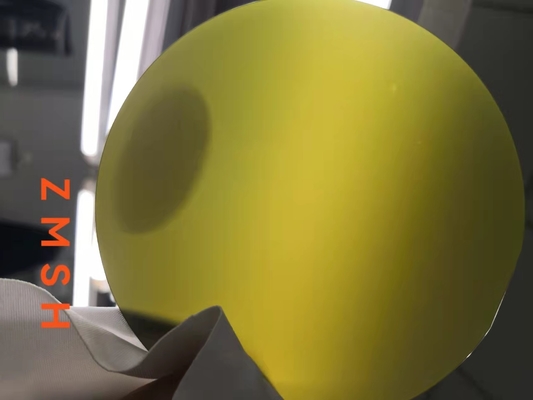

ZMSH company provides provides 100mm and 150mm SiC wafers. With its hardness (SiC is the second hardest material in the world) and stability under heat and high voltage current, this material is being widely used in several industries.
