Product Details
Place of Origin: China
Brand Name: ZMSH
Certification: ROHS
Model Number: LWIR Lens
Payment & Shipping Terms
Minimum Order Quantity: 25pc
Price: USD
Packaging Details: Customized Box
Delivery Time: In 30 days
Payment Terms: T/T
Wave Band: |
8um-12um |
Focal Length: |
8.0mm |
Material: |
LWIR Lens |
Operating Temperature: |
-35~+60℃ |
Shape: |
LWIR Lens |
Application: |
Sensor |
Focusing Range: |
1.7m To Infinity |
Maximum Image: |
11mm |
Transparency: |
>95% (AR Coating) |
Wave Band: |
8um-12um |
Focal Length: |
8.0mm |
Material: |
LWIR Lens |
Operating Temperature: |
-35~+60℃ |
Shape: |
LWIR Lens |
Application: |
Sensor |
Focusing Range: |
1.7m To Infinity |
Maximum Image: |
11mm |
Transparency: |
>95% (AR Coating) |

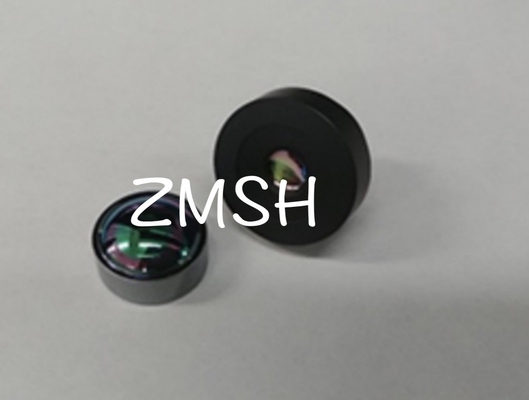

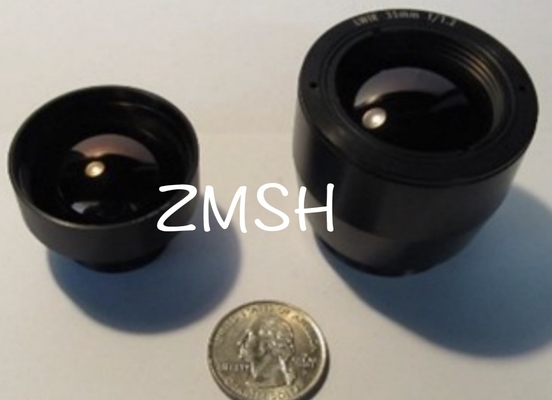

LWIR ZnS No Heat Lens Sensor Wave Band 12um Focus Distance 8mm 17mm Visual Enhancement
Description of LWIR Lens:
Long Wave infrared (LWIR) lenses are usually made of materials with specific optical and thermal properties.
Technical Parameters of LWIR Lens:
Focusing range | 8.0mm | ||||
Aperture based focal length ratio | f/1.0 | ||||
maximum image circle | 8.7mm | ||||
Wave band | 8-12um | ||||
Focusing range | 4.8m-infinity | ||||
Transparency | >95%(AR coating) | ||||
>90%(DLC coating) | |||||
Viewing Angle Range (FOV) | As below | ||||
Sensor array | Pixel size(um) | FOV(deg) | |||
H | V | D | |||
384x288 | 12 | 58.3 | 42.5 | 76.5 | |
10 | 47.6 | 35.1 | 61.1 | ||
320x240 | 17 | 48.6 | 35.8 | 62.5 | |
12 | 33.6 | 25.0 | 42.5 | ||
160x120 | 17 | 40.0 | 29.6 | 50.8 | |
12 | 27.8 | 20.8 | 35.0 |
Features of LWIR Lens:
LWIR (Long Wave infrared) lenses have several advantages in the field of infrared imaging:
Applications of LWIR Lens:
LWIR (long wave infrared) lens is widely used in the field of thermal imaging.
FAQ:
Q1: What brand name is the LWIR Lens?
A1: The LWIR Lens is made by ZMSH.
Q2: What's the diameter of the LWIR Lens?
A2: The diameter of the LWIR Lens is customized.
Q3: Is the LWIR Lens ROHS certified?
A3: Yes, the LWIR Lens is ROHS certified.
Q4: Where is the LWIR Lens from?
A4: The LWIR Lens is from China.
Q5: How many LWIR Lens can I buy at 1 time?
A5: The minimum order quantity of the LWIR Lens is 25pcs.
