Product Details
Place of Origin: China
Brand Name: ZMSH
Certification: ROHS
Model Number: Sapphire Dome
Payment & Shipping Terms
Minimum Order Quantity: 25pcs
Price: Negotiation
Packaging Details: Customized Box
Delivery Time: In 30 days
Payment Terms: T/T
Material: |
Sapphire Dome |
Colour: |
Transparent |
Working Temperature: |
1900°C |
Plane: |
C,A |
Diameter: |
2'' |
Centre Thickness: |
0.090 |
Surface Quality: |
60/40 |
Polishing: |
DSP |
Size: |
Customized |
Material: |
Sapphire Dome |
Colour: |
Transparent |
Working Temperature: |
1900°C |
Plane: |
C,A |
Diameter: |
2'' |
Centre Thickness: |
0.090 |
Surface Quality: |
60/40 |
Polishing: |
DSP |
Size: |
Customized |

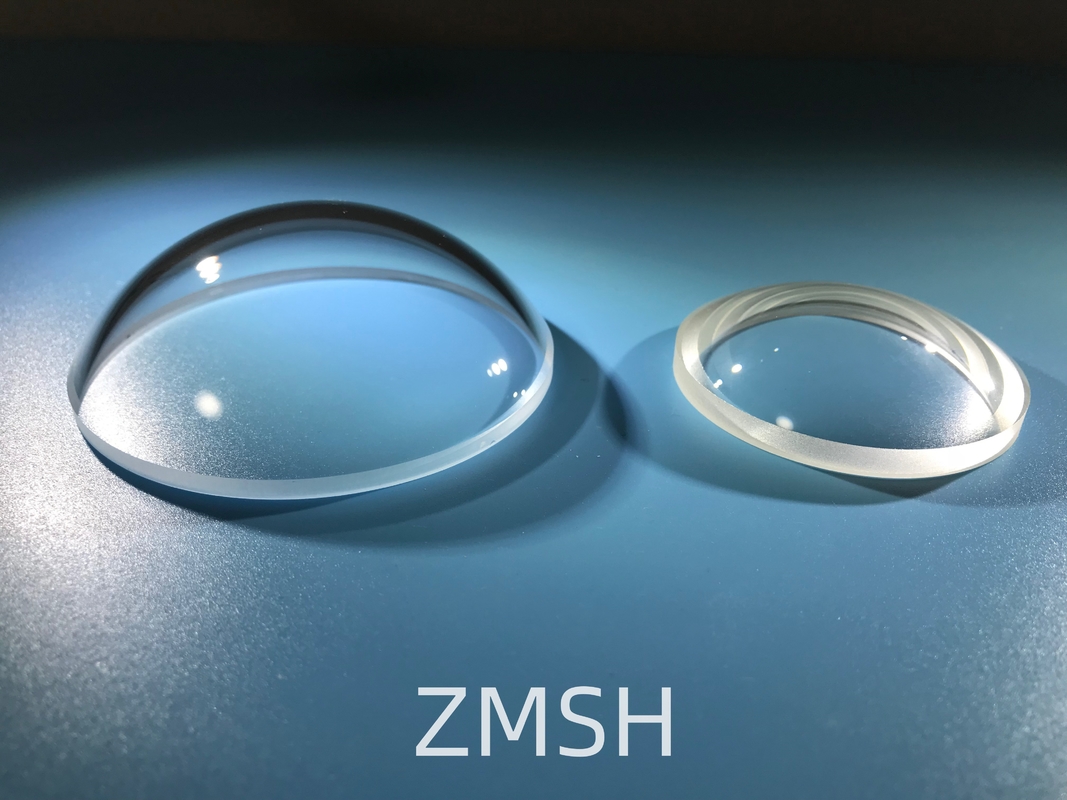

Al2O3 Single Crystal 99.999% Sapphire Dome Infrared Light Optical Window Mohs9
Description of sapphire dome:
A sapphire dome is a transparent, dome-shaped structure made from sapphire, which is a crystalline form of aluminum oxide (Al2O3).
Sapphire is known for its exceptional hardness and optical clarity, making it an ideal material for various applications that require superior
strength and excellent optical properties.
Sapphire domes are typically used in aerospace, defense, and high-end optical systems where protection, durability, and optical performance
are critical.
Features of sapphire dome:
Sapphire is one of the hardest known materials, second only to diamond on the Mohs hardness scale.
The hardness of sapphire provides excellent resistance to abrasion, making sapphire domes less prone to surface damage and maintaining their optical quality over time.
Sapphire has good thermal conductivity, which enables efficient heat dissipation and thermal management in applications where temperature control is crucial.
Sapphire has excellent mechanical strength, allowing it to withstand high-pressure conditions and protect sensitive components from impacts and debris.
Sapphire is highly resistant to chemical corrosion, making it suitable for use in harsh environments and applications involving exposure to corrosive substances.
Sapphire has a high melting point of around 2040 degrees Celsius, enabling it to withstand high-temperature environments without deformation or degradation.
Technical parameters of sapphire dome:
Chemical Formula |
|
Al2O3 |
|||
Crystal Stucture |
|
Hexagonal System ((hk o 1) |
|||
Unit Cell Dimension |
|
a=4.758 Å,Å c=12.991 Å, c:a=2.730 |
|||
PHYSICAL |
|||||
|
|
Metric |
English (Imperial) |
||
Density |
|
3.98 g/cc |
0.144 lb/in3 |
||
Hardness |
|
1525 - 2000 Knoop, 9 mhos |
3700° F |
||
Melting Point |
|
2310 K (2040° C) |
|
||
STRUCTURAL |
|||||
Tensile Strength |
|
275 MPa to 400 MPa |
40,000 to 58,000 psi |
||
|
at 20° |
400 MPa |
58,000 psi (design min.) |
||
|
at 500° C |
275 MPa |
40,000 psi (design min.) |
||
|
at 1000° C |
355 MPa |
52,000 psi (design min.) |
||
Flexural Stength |
|
480 MPa to 895 MPa |
70,000 to 130,000 psi |
||
Compression Strength |
|
2.0 GPa (ultimate) |
300,000 psi (ultimate) |
Application of sapphire dome:
Applications |
Descriptions |
Aerospace and Defense: |
Sapphire domes are used in aerospace and defense applications, |
Optics and Photonics |
Sapphire domes are utilized in optical systems that require exceptional optical transmission and high resistance to scratching. |
High-Pressure Environments |
Sapphire domes are ideal for applications that involve high-pressure |
High-Temperature Environments |
They can withstand extreme heat, making them suitable for aerospace engines, furnaces, and high-temperature optical systems. |
Medical Imaging |
Sapphire domes are used in medical imaging devices, such as endoscopes and high-resolution cameras. |
Industrial and Manufacturing |
Sapphire domes are used in industrial and manufacturing applications that require protection for sensors, cameras, and optical systems. |
Research and Scientific Instruments |
Sapphire domes are employed in various research and scientific |
FAQ:
Q1: What brand name is the Sapphire Dome?
A1: The Sapphire Dome is made by ZMSH.
Q2: What's the diameter of the Sapphire Dome?
A2: The diameter of Sapphire Dome is 1'', 2'', 3'', 4''.
Q3: Where is the Sapphire Dome from?
A3: The Sapphire Dome is from China.
Q4: Is the Sapphire Dome ROHS certified?
A4: Yes, the Sapphire Dome is ROHS certified.
Q5: How many Sapphire Dome plates can I buy at 1 time?
A5: The minimum order quantity of the Sapphire Dome is 25pcs.
