Microfluidic Chip Glass Substrate Optically Transparent Wafer High-precision Processing Customization BF33 JGS1 JGS2 Sapphire Quartz Corning Glass

Microfluidic Chip Glass Substrate Optically Transparent Wafer High-precision Processing Customization BF33 JGS1 JGS2 Sapphire Quartz Corning Glass
Microfluidic Chip Glass Substrate Optically Transparent Wafer High-precision Processing Customization BF33 JGS1 JGS2 Sapphire Quartz Corning Glass Microfluidic Chip Glass Substrate Optically Transparent Wafer High-precision Processing Customization BF33 JGS1 JGS2 Sapphire Quartz Corning Glass Microfluidic Chip Glass Substrate Optically Transparent Wafer High-precision Processing Customization BF33 JGS1 JGS2 Sapphire Quartz Corning Glass

Large Image :  Microfluidic Chip Glass Substrate Optically Transparent Wafer High-precision Processing Customization BF33 JGS1 JGS2 Sapphire Quartz Corning Glass

Product Details:
Place of Origin: Shanghai China
Brand Name: ZMSH
Certification: ROHS
Model Number: Microfluidic chip glass substrate
Payment & Shipping Terms:
Delivery Time: in 30 days
Payment Terms: T/T
Contact Now
Detailed Product Description
Material: BF33 JGS1 JGS2 Sapphire Quartz Size: All Standard Up To 200 Mm
Thickness: <1.1 Mm Minimum Microhole Diameter: 10 µm
Positional Accuracy: ±3 µm Via Shape: Straight
Highlight:

Optically transparent Microfluidic chip glass substrate

,

High precision Microfluidic chip glass substrate

,

Microfluidic chip glass substrate

Product Description

Microfluidic chip glass substrate optically transparent wafer high-precision processing customization BF33 JGS1 JGS2 Sapphire Quartz Corning Glass

Microfluidic chips are often referred to as biochips. Fluidic technology can integrate the routine process and function in the sampling, dilution, reagent, reaction, separation, detection and other solid materials such as silicon-based, glass, plastic or metal in the whole solid block in the lifetime analysis, forming a microchip that includes a variety of micro and nano pipes and a plurality of micro-nanoliter volume reaction chambers, and the controllable fluid runs through the whole system to realize various functions of conventional chemical or biological laboratories. It serves applications such as point-of-care diagnostics (POCT), gene sequencing, environmental protection, food safety, and scientific research.

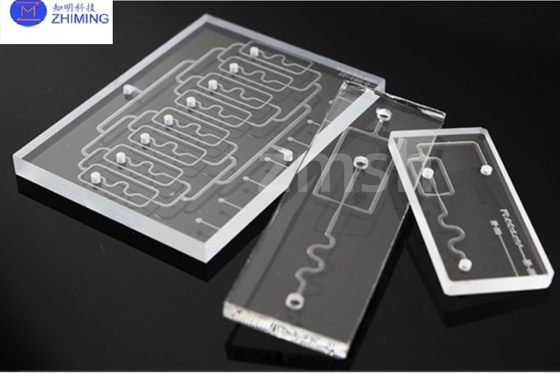

Microfluidic Chip Glass Substrate Optically Transparent Wafer High-precision Processing Customization BF33 JGS1 JGS2 Sapphire Quartz Corning Glass 0

Features

• Optical transparency: The glass substrate has good optical transparency, allowing light to penetrate easily, which is convenient for optical detection and analysis.
• Chemical stability: Glass materials have excellent chemical stability, and can withstand strong acids, strong alkalis, organic solvents and other corrosive substances, ensuring the long-term stability and service life of the chip.
• Biocompatibility: Glass substrates are naturally biocompatible and do not cause toxicity or other harmful effects on biological samples, facilitating mass transfer and analysis of biological samples.
• High temperature stability: The glass substrate can withstand high temperature environments, making it suitable for some microfluidic applications that require high temperature processing.
Microfluidic Chip Glass Substrate Optically Transparent Wafer High-precision Processing Customization BF33 JGS1 JGS2 Sapphire Quartz Corning Glass 1

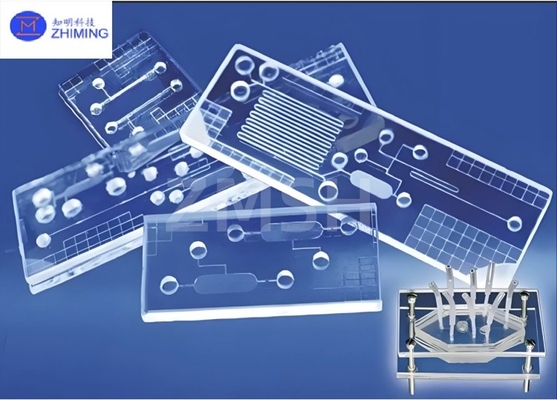

Glass droplets generate chips

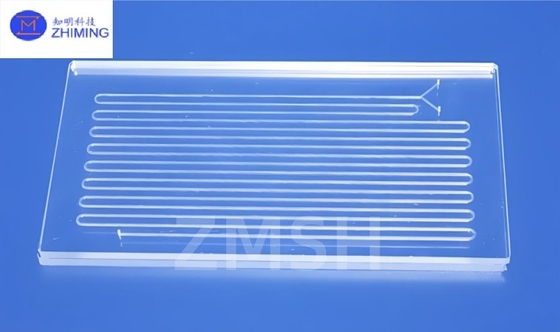

Microfluidic Chip Glass Substrate Optically Transparent Wafer High-precision Processing Customization BF33 JGS1 JGS2 Sapphire Quartz Corning Glass 2

Technical Parameters

Specification Value
Glass Thickness <1.1 mm
Wafer Sizes All standard up to 200 mm
Minimum Microhole Diameter 10 µm
Identical Hole Diameter 99%
Positional Accuracy ±3 µm
Chipping None
Super Smooth Sidewalls RA < 0.08 µm
Hole Types Through Via (True circle or Ellipse), Blind Via (True circle or Ellipse)
Hole Shape Hourglass
Option Singulation from hole-processed large-sized glass

Applications

• Disease diagnosis: Microfluidic chips using glass substrates can realize rapid, sensitive and non-destructive detection of biological samples for early diagnosis of diseases.
• Chemical analysis: Through the microfluidic chip, the chemical sample can be accurately controlled and analyzed, and the efficiency and accuracy of chemical analysis can be improved.
• Bioengineering: Microfluidic chips on glass substrates can be used in bioengineering fields such as cell culture and biosensing to provide better support for biological research and applications.
• Drug screening: Microfluidic chips can be used for high-throughput drug screening to accelerate the drug discovery process.
In summary, microfluidic chip glass substrates have a wide range of application prospects due to their unique material properties.
Microfluidic Chip Glass Substrate Optically Transparent Wafer High-precision Processing Customization BF33 JGS1 JGS2 Sapphire Quartz Corning Glass 3
Related product:
Microfluidic Chip Glass Substrate Optically Transparent Wafer High-precision Processing Customization BF33 JGS1 JGS2 Sapphire Quartz Corning Glass 4Microfluidic Chip Glass Substrate Optically Transparent Wafer High-precision Processing Customization BF33 JGS1 JGS2 Sapphire Quartz Corning Glass 5

Our services

1. Factory direct manufacture and sell.

2. Fast, accurate quotes.

3. Reply to you within 24 working hours.

4. ODM: Customized design is avaliable.

5. Speed and precious delivery.

FAQ

1. Q: How to pay?
A:100％T/T, Paypal, West Union, MoneyGram, Secure payment and Trade
Assurance on and etc..

2. Q: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications for your optical components
based on your needs.

3. Q: What's the delivery time?
A: (1) For the standard products
For inventory: the delivery is 5 workdays after you place the order.
For customized products: the delivery is 2 or 3 weeks after you place the order.
(2) For the special-shaped products, the delivery is 4 workweeks after you place the order.
