Product Details:
Place of Origin: China
Brand Name: zmsh
Certification: rohs
Model Number: Custom-Shaped Sapphire View Window
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: 30
Packaging Details: foam wrapper + carton box
Delivery Time: 3-5 weeks
Payment Terms: T/T, Western Union
Supply Ability: 5000per month
Detailed Product Description
Material: 99.999% Sapphire Crystal Thickness: Customized
Shape: Customized Size: Customized
Coating: AR Coating,High Transmission Coatings,Reflective Coatings,Hard Coating,Anti-Soiling Coatings,Anti-Glare Coatings,Filter Coatings Hardness: 9 Mohs
Colour: Transparent Polished: DSP Or SSP
Highlight:

Customized Thickness Sapphire Optical Windows

,

high hardness Sapphire Optical Windows

,

Custom Shaped Sapphire Optical Windows

Sapphire Custom-Shaped Windows – Optical Glass, High Hardness



In the realm of high-performance optical components, sapphire custom-shaped windows stand as the pinnacle of material engineering. Crafted from 99.999% pure single-crystal aluminum oxide (Al₂O₃), these precision optical elements combine unmatched hardness (Mohs 9) with exceptional optical clarity to meet the most demanding industrial, scientific, and defense applications. Unlike conventional optical glass, sapphire windows offer 3-5x greater scratch resistance, superior thermal stability (melting point 2,050°C), and outstanding chemical inertness – making them indispensable where reliability under extreme conditions is non-negotiable.

Our proprietary diamond-tool CNC machining and atomic-layer polishing processes enable the production of complex custom geometries – from ultra-thin disks to intricate polygonal shapes – with sub-micron tolerances and surface roughness <5Å. Whether for laser systems operating at megawatt power levels or spacecraft viewports facing micrometeoroid impacts, these sapphire windows deliver uncompromising performance across the electromagnetic spectrum (UV to mid-IR).

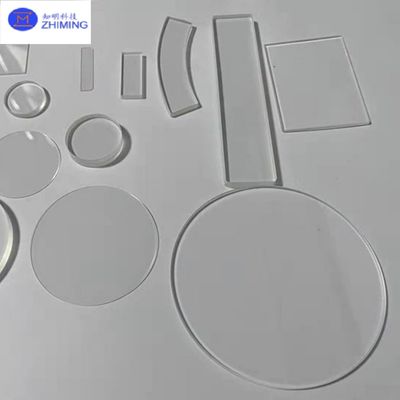

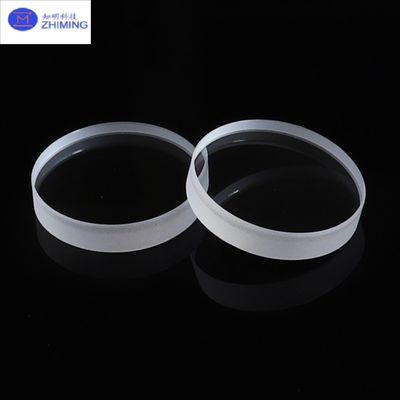

Sapphire Custom-Shaped Sapphire View Windows Optical Glass high hardness 0Sapphire Custom-Shaped Sapphire View Windows Optical Glass high hardness 1





Key Features of Sapphire Optical Window




1. Sapphire Window's Extreme Durability

  • Mohs 9 hardness – Only diamond can scratch it
  • Flexural strength >800 MPa – Withstands high-pressure differentials
  • Fracture toughness 2.5 MPa·m½ – 3x more impact-resistant than fused silica


2. Sapphire Window's Optical Excellence

  • Broadband transmission (85%+ from 250nm to 5,000nm)
  • Low autofluorescence – Critical for Raman spectroscopy
  • Refractive index homogeneity <5 × 10⁻⁶ across entire surface


3. Sapphire Window's Precision Engineering

  • Dimensional tolerances to ±0.001mm
  • Surface flatness λ/10 at 632.8nm
  • Parallelism <1 arc minute


4. Sapphire Window's Environmental Resistance

  • Thermal shock resistant (ΔT >1,000°C)
  • Radiation hard (withstands >10⁶ Gy)
  • Impervious to all acids except hydrofluoric


5. Sapphire Window's Customization Capabilities

  • Complex geometries: Hexagons, D-shapes, trapezoids, free-form
  • Edge treatments: Beveled, rounded, or precision-ground
  • Coatings: AR coating,High Transmission Coatings,Reflective Coatings,Hard Coating,Anti-Soiling Coatings,Anti-Glare Coatings,Filter Coatings

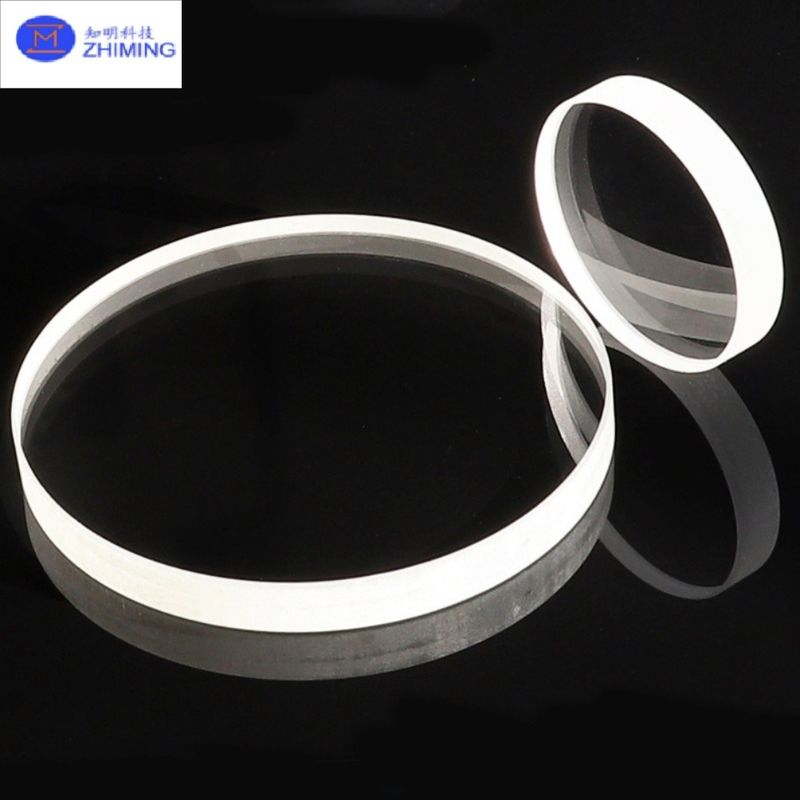

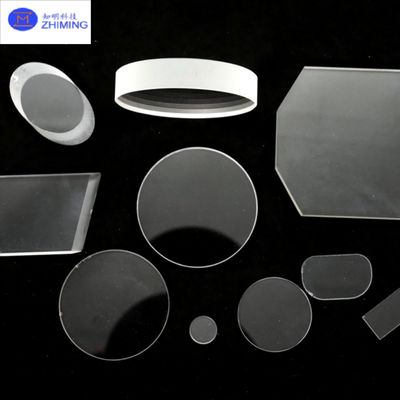

Sapphire Custom-Shaped Sapphire View Windows Optical Glass high hardness 2Sapphire Custom-Shaped Sapphire View Windows Optical Glass high hardness 3








Specifications




Property Value
Material Single-Crystal Sapphire (Al₂O₃)
Crystal Orientation C-plane (0001) standard
Purity ≥ 99.995%
Hardness Mohs 9 (second only to diamond)
Density 3.98 g/cm³
Melting Point ~2040 °C
Young’s Modulus 400 GPa
Thermal Conductivity 35–46 W/(m·K)
Refractive Index (n) ~1.76 @ 1 µm
