Custom Sapphire Ingot Optical Cylinder For Various Semiconductor Applications

I'm Online Chat Now

Custom Sapphire Ingot Optical Cylinder For Various Semiconductor Applications

China Custom Sapphire Ingot Optical Cylinder For Various Semiconductor Applications supplier
Custom Sapphire Ingot Optical Cylinder For Various Semiconductor Applications supplier Custom Sapphire Ingot Optical Cylinder For Various Semiconductor Applications supplier Custom Sapphire Ingot Optical Cylinder For Various Semiconductor Applications supplier Custom Sapphire Ingot Optical Cylinder For Various Semiconductor Applications supplier

Large Image :  Custom Sapphire Ingot Optical Cylinder For Various Semiconductor Applications

Product Details:

Place of Origin: china
Brand Name: zmkj
Model Number: cylinder-021

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: by case
Packaging Details: PET Films
Delivery Time: 20DAYS
Contact Now
Detailed Product Description
Orientation: (0001) Materials: 99.999% Al2O3
Application: Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics,bearing Advantagement: High Hardness9.0,wear Resistance,
VisVisible Light TransmittanceVisible Light Transmittance: 85% Color: Red And White
Type: Single Crystal Shape: Cylinder
Size: Dia20x22mmt

sapphire optical cylinder , Al2O3 single crystal glass ,sapphire optical glass ingots, sapphire optical rods,sapphire optical stick,Al2O3 single crystal glass lens,optical glass ingots by sapphire ,sapphire optical rods



what is Sapphire ?
Synthetic Sapphire is a single crystal form of corundum, Al2O3, also known as alpha-alumina, alumina,

and single crystal Al2O3. Sapphire is aluminium oxide in the purest form with no porosity or grain boundaries, making it theoretically dense. The combination of favourable chemical, electrical, mechanical, optical, surface, thermal, and durability properties make sapphire a preferred material for high performance system and component designs. For various semiconductor applications, sapphire is the best choice in comparison with other synthetic single-crystals.


Why choose the sapphire?
1- Thinner and Stronger than Standard Glass Windows
2- Transmits Wavelengths Ranging From UV to Mid-Infrared
3- Features Extreme Surface Hardness and Chemical Resistance

Materials characteristics
Item B270 CaF2 Ge MgF2 N-BK7 Sapphire Si UV Fused Sillca ZnSe ZnS
Refractive index(nd) 1.523 1.434 1.003 1.413 1.517 1.768 3.422 1.458 2.403 2.631
Coeffcient of dispersion(Vd) 58.5 95.1 N/A 106.2 64.2 72.2 N/A 67.7 N/A N/A
Density(g/cm3) 2.55 3.18 5.33 3.18 2.46 3.97 2.33 2.20 5.27 5.27
TCE(μm/m℃) 8.2 18.85 6.1 13.7 7.1 5.3 2.55 0.55 7.1 7.6
Soften Temperature(℃) 533 800 936 1255 557 2000 1500 1000 250 1525
Knoop hardness(kg/mm2) 542 158.3 780 415 610 2200 1150 500 120 120



Sapphire substrates / wafers: EPI-polished, optically polished, lapped or as-cut sapphire disks, windows, substrates, blanks as well as epitaxial structures “silicon-on-sapphire” (SOS), sapphire lens, cover glass.





Custom Sapphire Ingot Optical Cylinder For Various Semiconductor Applications





Sapphire Windows and Sapphire lenses General Specifications

Diameter 0.2-300mm or customization
Diameter tolerance +/-0.1mm or +/-0.02mm
Thickness 0.10-100mm
Thickness tolerance ± 0.1mm to +/-0.01mm
Surface quality (scratch & dig) 60/40, 40/20 or better
Surface accuracy λ/10, λ/2, λ
Clear Aperture >85%, >90%
Parallelism +/-3' ,+/-30''
Bevel 0.1~0.3mm×45 degree
coating AR, BBAR or upon customer request( UV, VIS, IR)

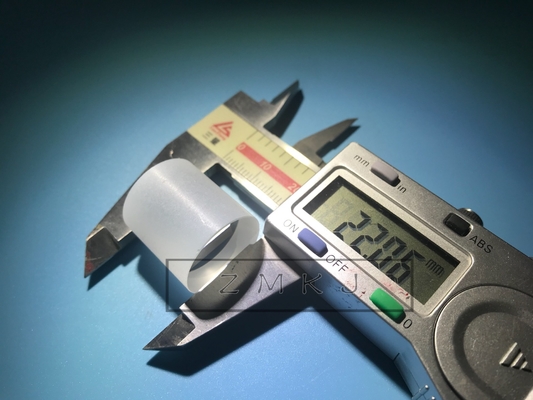

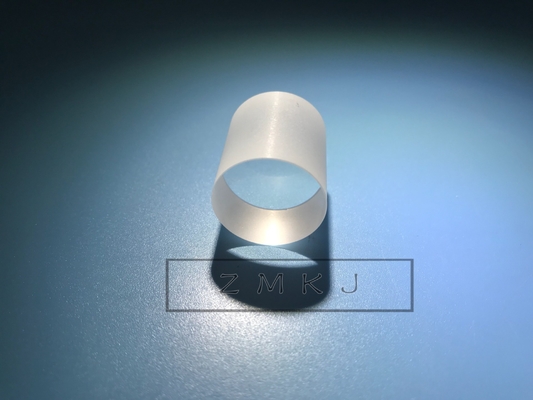

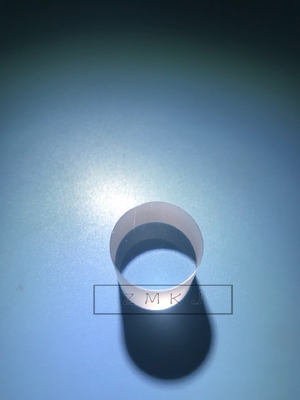

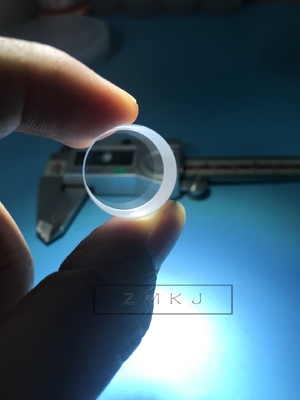

3.0 sample pictures for sapphire rod lens



Custom Sapphire Ingot Optical Cylinder For Various Semiconductor ApplicationsCustom Sapphire Ingot Optical Cylinder For Various Semiconductor Applications

Custom Sapphire Ingot Optical Cylinder For Various Semiconductor Applications



4.We can supply professional customized service in time and provide cooperation and support of new product development and technology appliance.

Custom Sapphire Ingot Optical Cylinder For Various Semiconductor Applications

Why choose us?

we have the engineers oweing Over 10 years sapphire technology  experience;
 Having many partners in the domestic and overseas;
 Having multiple Invention patents and Utility model patents on sapphire prodoce.
 We assure you will always be equipped with the latest technology from us;
 Advanced facilities, fine procedures and responsible staff spell Quality crystal ,material;

From ingot to wafer checking,all equipment shoud been had we all have.

Custom Sapphire Ingot Optical Cylinder For Various Semiconductor Applications

6.0 FAQ –
Q: What you can supply logistics and cost?
(1) We accept DHL, Fedex, TNT, UPS, EMS, SF and etc  by FOB.
(2) If you have your own express number, it's great.


Q: What's the delivery time?
(1) For the standard products such as ball lens, powell lens and collimator lens:
For inventory: the delivery is 5 workdays after order.
For customized products: the delivery is 2 or 3 workweeks after order.

Q: How to pay?
100%T/T before delivery, Paypal, West Union, MoneyGram.

Q: What's the MOQ?
(1) For inventory, the MOQ is 5pcs.
(2) For customized products, the MOQ is 10pcs-30pcs.
