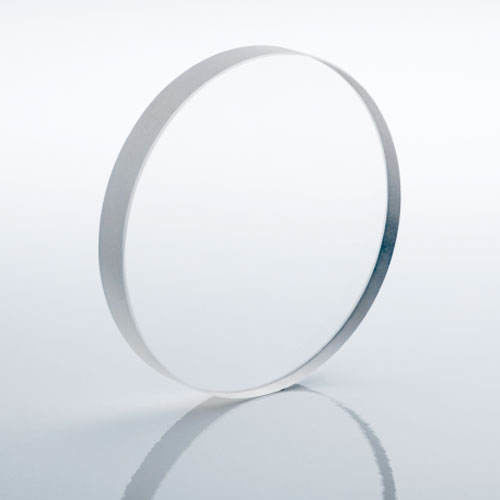

Al2O3 Sapphire Washers Wafer Bearings Windows Rod Wear Resistance

Al2O3 Sapphire Washers Wafer Bearings Windows Rod Wear Resistance

  • High Light

    Al2O3 Sapphire Washers Wafer

    ,

    wear resistance Sapphire Wafer

    ,

    Single crystal Sapphire Wafer

  • Material
    99.999% Al2O3
  • Industry
    Led,optical Glass,eli-ready Wafer
  • Application
    Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics
  • Color
    White Or Red Or Blue
  • Vision Light Transmissivity
    85%
  • Advantagement
    High Hardness9.0,wear Resistance,
  • Type
    Single Crystal
  • Place of Origin
    china
  • Brand Name
    zmsh
  • Model Number
    wafer-5inch R
  • Minimum Order Quantity
    25pcs
  • Price
    by case
  • Packaging Details
    Vacuum-sealed containers with nitrogen backfill in a class 100 environment
  • Delivery Time
    15-30days
  • Supply Ability
    100pcs/months

Al2O3 Sapphire Washers Wafer Bearings Windows Rod Wear Resistance

Sapphire Washers Wafer Bearings Windows Rods Tubes Ruby Glass



The identification method of sapphire is as follow: Check the logo and glass hardness. Generally speaking, Sapphire Windows is used as the mirror material of high-end watches. Generally, the relevant logo of sapphire glass will be printed on the back cover of the watch, which is expressed as: SAPPHIRE or Sapphire Crystal; in addition, a sharp metal pinpoint can also be used to go. Scratch the edge of the glass. If it feels hard and metallic, and there are no scratches, it should be sapphire glass.



We offer in a variety of Sapphire Optics , such as Optical sapphire rings, Step Glass, Sapphire Rod lens and sapphire tubes. Multiple anti-reflection coating options are available for the Ultraviolet (UV), visible, or Infrared (IR).



Looking for ideal optical sapphire Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the Sapphire Glass are quality guaranteed. Zoolied China Origin Factory of sapphire. If you have any question, please feel free to contact us.



Material: Single crystal Al2O3 99.999%
Diameter:125.00±0.1mm
Thickness :1000±25um
Primary flat:42.5±2.5mm
OF Orientation flat: C±0.1°C-plane(0001)
Orientation: R±0.1°Or A-plane,M-plane
Frontside Surface Roughness:Ra<0.3nm
Backside Surface Roughness: 0.8~1.2um
Or double side polished
TTV:<20um
BOW:-25~0um
WARP:<30um
Laser Mark Series No. by needs
Package:Vacuum-sealed containers with nitrogen backfill in a class 100environment
Cleanliness :Free visible contamination



Produce step for saphire wafers



Sapphire crystal body--->get rough ingot in customized axis--->cut tail& top off---->

repair diameter shape----> Grind OF surface--->( anneal -->)wire cut--->chamfer-->anneal--->lapped---polished---infection



Synthetic sapphire—sometimes referred to as sapphire glass—is commonly used as a window material, because it is both highly transparent to wavelengths of light between 150 nm (UV) and 5500 nm (IR) (the visible spectrum extends about 380 nm to 750 nm, and extraordinarily scratch-resistant.

The key benefits of sapphire windows are:

Very wide optical transmission band from UV to near-infrared, (0.15–5.5 µm)
Significantly stronger than other optical materials or standard glass windows
Highly resistant to scratching and abrasion
Extremely high melting temperature (2030 °C)

-------------------------------------------------------------------------------------------------------------------------------------------

We can supply professional customized service in time and provide cooperation and support of new product development and technology appliance.






Al2O3 Sapphire Washers Wafer Bearings Windows Rod Wear Resistance 0

Some other materials semi substrates also can be provided as like sic, GaN,LaAlO3,LiTaO3 etc.

5inch product pictures

Al2O3 Sapphire Washers Wafer Bearings Windows Rod Wear Resistance 1

picture is 5inch as-cut wafer



FAQ:





Q: What's your MOQ?

A: (1) For inventory, the MOQ is 10pcs.

(2) For customized products, the MOQ is 25pcs up.



Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex, EMS etc.

(2) If you have your own express account, it's great.If not,we could help you ship them.

Freight is in accordance with the actual settlement.

Q: How to pay?

A:50%deposit, left before delivery T/T,



Q: Can I customize the products based on my need?

A: Yes, we can customize the material, specifications and optical coating for your optical

components based on your needs.



Q: What's the delivery time?

For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 or 3 weeks after you place the order.



Q: Do you have standard products?

A: Our standard products in stock.as like 4inch 0.65mm,0.5mm polished wafer.
