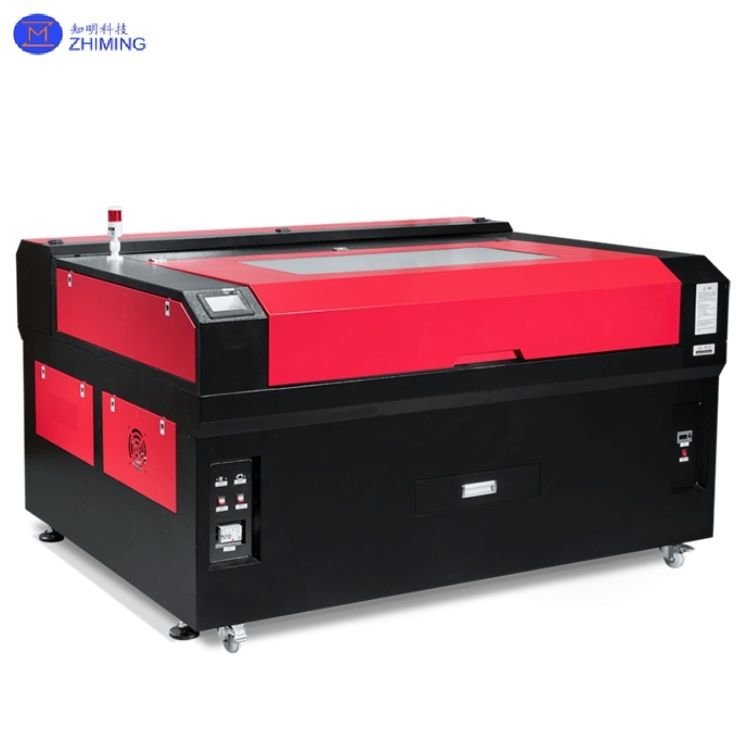

CO₂ Laser Cutting Machine 40W-600W Positioning Accuracy±0.05mm
The CO₂ laser cutter is an industrial device utilizing a 10.6μm wavelength laser beam for high-precision cutting of non-metallic and certain metallic materials. It is widely applied in advertising, automotive, textile, and electronics industries, with core advantages in organic material processing efficiency and smooth cutting edge quality.
Key Components:
- CO₂ Laser Generator: RF-excited or glass tube type (30W-600W power range)
- Cutting Head Assembly: Includes ZnSe focusing lens, nozzle, capacitive height sensor
- Motion System: High-precision linear guides/rack-and-pinion (±0.05mm positioning accuracy)
- Control System: Supports DWG/DXF files with auto-focus capability
- Auxiliary Systems: Air/N₂/O₂ gas supply, dust extraction
Model Classification:
- Flatbed Cutters: For sheet materials (acrylic, wood panels)
- Tube Cutters: Dedicated to metal/non-metal tubes (optional rotary axis)
CO₂ laser cutting machine of key parameters
| Parameter |
Range |
| Output Power |
40W-600W |
| Wavelength |
10.6±0.1μm |
| Beam Quality (M²) |
<1.2 |
| Positioning Accuracy |
±0.05mm |
| Repeatability |
±0.03mm |
| Max Acceleration |
1-2G |
CO₂ laser cutting machine of working principle
CO₂ laser cutting employs gas discharge excitation and 10.6μm infrared thermal processing through three physical phases:
1. Laser Generation & Transmission
- Gas Excitation: High-voltage current ionizes CO₂/N₂/He mixture, inducing molecular vibrational transitions to emit 10.6μm photons
- Resonant Amplification: Photons oscillate within resonator cavity (HR mirror + output coupler), forming high-energy CW/pulsed beam
- Beam Delivery: Guided by copper mirrors, collimated via beam expander, then focused by cutting head (spot size depends on lens curvature)
2. Material Interaction
Non-Metals (e.g., Acrylic):
- Laser absorption → Instantaneous vaporization (~400°C for acrylic) → Molten debris blown away by assist gas (air/N₂)
- Edge Quality Control: Power density <10⁶W/cm² minimizes carbonization (achieving Ra<0.8μm polished edges)
Metals (Requiring Coating):
- Laser-induced oxidation (Fe+O₂→FeO) → Exothermic reaction enhanced by O₂ → Slag ejected by high-pressure gas (15-20Bar)
3. Dynamic Control
- Real-time Focus: Capacitive sensor maintains 0.5-2mm nozzle-to-workpiece distance
- Power Modulation: 1-5kHz pulse frequency prevents thermal damage to thin materials (e.g., 0.5mm wood)
CO₂ laser cutting machine of technical features
1. Non-Metal Specialization:
- 3-5× faster than fiber lasers on acrylic/wood/textiles
2. Mirror-Finish Edges:
- Achieves Ra<1.6μm on acrylic without post-processing
3. Low Operational Cost:
- $0.7-2.2/hour (electricity + gas)
4. Flexible Processing:
- 3D curved surface cutting (e.g., automotive leather interiors)
Technology Comparison:
| Aspect |
CO₂ Laser |
Fiber Laser |
| Materials |
Non-metals/coated metals |
Primarily metals |
| Cutting Speed |
Acrylic: 20m/min (60W) |
Stainless: 3m/min (1kW) |
| Energy Efficiency |
8-12% electro-optical conversion |
30-35% conversion |
CO₂ laser cutting machine of application fields
1. Signage Manufacturing
- Acrylic 3D Letters:
- 60-100W laser cuts 3-5mm acrylic with polished edges (Ra<0.8μm), eliminating sanding
- Bevel Cutting: 30°-60° angles create LED light-diffusion effects
- Two-Tone Plates:
- Layer-selective cutting reveals contrast colors for traffic signs/nameplates
2. Automotive Industry
- Interior Components:
- N₂-assisted (20L/min) carpet cutting (8-10mm thickness) prevents edge charring
- Leather seat templates with nesting software reduce waste (15% material savings)
- Gaskets:
- Precision silicone cutting (±0.1mm) enables mold-free small-batch production
3. Electronics
- FPC Processing:
- 20W laser cuts polyimide coverlays with <50μm HAZ (copper-safe)
- CCD vision systems achieve ±0.02mm alignment
- Insulation Materials:
- Mica/epoxy board cutting for transformer isolators (chip-free edges)
4. Textiles
- Multi-Layer Fabric:
- 50W laser cuts 50-ply cotton (3mm total) with sealed edges
- Smart Nesting: NestFab software improves material utilization by 10-20%
- Embroidery Templates:
- Paper template cutting replaces dies (5× efficiency gain)
5. Packaging
- Food-Grade Cutting:
- Laminated paperboard (e.g., bubble tea cups) meets FDA standards
- Inline Systems: Integrated printing→cutting for roll-to-sheet automation
- Anti-Counterfeit Labels:
- Laser-cut QR codes for luxury packaging security
6. Architectural Models
- Scale Models:
- 1-5mm ABS plastic cutting (0.3mm window frame details achievable)
- 3D Joints: Mortise-tenon structures with 0.1mm assembly precision
CO₂ laser cutting machine of sample display
This CO₂ laser cutting machine produces exceptionally clean and precise cut samples, demonstrating its superior processing capabilities. The showcased samples highlight the system's ability to achieve smooth, polished edges on acrylic materials, intricate detailing on thin metals, and flawless cuts across various textiles and composites. Each sample visibly exhibits the machine's key advantages - consistent cut quality, minimal thermal distortion, and exceptional edge definition - making them ideal for visual demonstrations that effectively communicate the equipment's industrial-grade performance and reliability to potential clients. The uniform results across different materials serve as clear evidence of the system's versatility and precision.
Related Product
CO₂ laser cutting machine of Q&A
1. Q: What materials can a CO₂ laser cutter process?
A: CO₂ lasers excel at cutting non-metals like acrylic, wood, fabric, and leather, while also processing coated metals with oxygen assistance.
2. Q: How thick can a CO₂ laser cut?
A: Standard 40-100W models cut 3-10mm acrylic/wood, while industrial 600W+ systems handle 25mm non-metals and 1.5mm coated metals.
