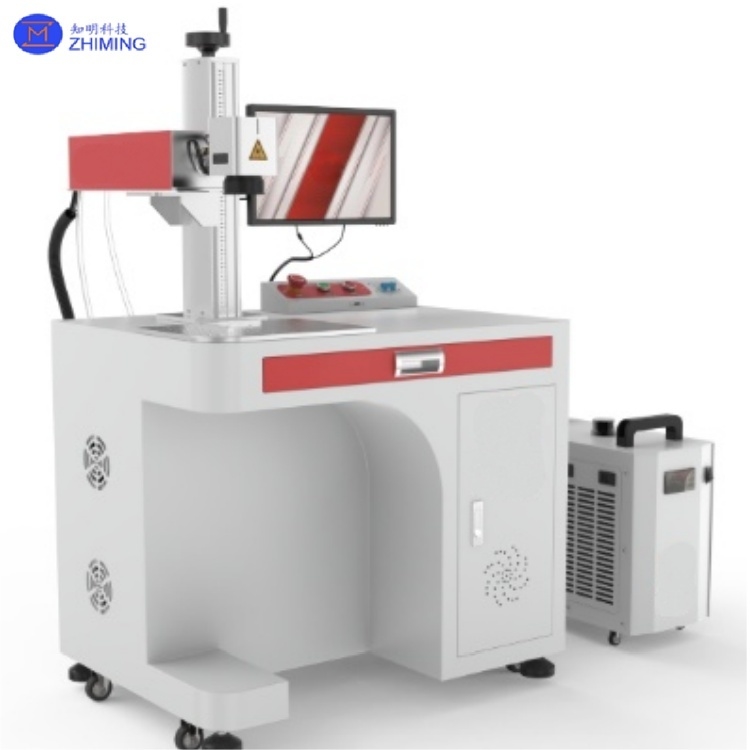

​​355nm UV Laser Marking Machine 3W-25W for Various Plastic Marking​​

Product Details

Place of Origin: CHINA

Brand Name: ZMSH

Certification: rohs

Model Number: UV Laser Marking Machine

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: by case

Delivery Time: 3-6 months

Payment Terms: T/T

Supply Ability: 1000pcs per month

Get Best Price
Highlight:
LASER POWER:
3W 5W 10W 15W 20W 25W
LASER WAVE LENGTH:
355nm
BEAM QUALITY:
≤1.2
CARVING SPEED:
≤7000mm/s
WORKING TEMPERATURE:
15~35°C
WEIGHT:
≈100KG
LASER POWER:
3W 5W 10W 15W 20W 25W
LASER WAVE LENGTH:
355nm
BEAM QUALITY:
≤1.2
CARVING SPEED:
≤7000mm/s
WORKING TEMPERATURE:
15~35°C
WEIGHT:
≈100KG
​​355nm UV Laser Marking Machine 3W-25W for Various Plastic Marking​​



UV Laser Marking Machine: Key Introduction





​​355nm UV Laser Marking Machine 3W-25W for Various Plastic Marking​​



​​355nm UV Laser Marking Machine 3W-25W for Various Plastic Marking​​ 0

The UV laser marking machine is a high-end product in laser marking equipment, ​​utilizing a 355nm UV laser source​​ (generated via third-order intracavity frequency conversion technology to convert infrared lasers into ultraviolet light). Through ​​"cold processing"​​, it achieves permanent marks on material surfaces via laser-material interaction. Its features include ​​micron-level precision (minimum line width: 0.01mm), minimal heat-affected zone (≤5μm), and high adaptability​​, making it ideal for scenarios demanding stringent marking precision, aesthetic quality, or material preservation, such as electronic components, medical devices, glass products, and cosmetic packaging.





​​ZMSH Service & Technical Support​​:



  • ​​Customized Solutions​​: Adjust laser parameters (power, frequency) to adapt to special materials (e.g., titanium alloys, ceramics).
  • ​​Full Lifecycle Service Support​​:
  1. ​​Rapid Response​​: 2-hour remote diagnostics, 24/7 on-site engineer service (nationwide coverage).
  2. ​​Free Upgrades​​: Software algorithm updates supporting AI-powered positioning and batch marking.
  3. ​​Zero Consumable Costs​​: Lifetime maintenance-free design (requires only periodic optical lens cleaning).





​​Core Value & Impact​​:



  • ​​Brand Value Enhancement​​: High-precision anti-counterfeit marking on luxury packaging and jewelry for enhanced product differentiation.
  • ​​Quality Traceability​​: Unique serial number marking on medical catheters and electronic components to meet FDA/ISO traceability standards.
  • ​​Production Cost Reduction​​: Replaces traditional ink printing, reducing material waste by >10% annually (saving >¥100,000 per unit).



Equipped with ​​cold processing technology and ultra-fine marking capabilities​​, this device has become a critical tool in precision manufacturing and high-end consumer industries, driving efficiency and brand upgrading.








UV Laser Marking Machine: Technical Specifications





LASER POWER



3W 5W 10W 15W 20W 25W

LASER WAVE LENGTH



355nm

FREQUENCY RANGE



20kHz-150kHz 40kHz-300kHz

PULSE LENGTH



15ns@30kHz 15ns@40kHz 18ns@60kHz

SPOT DIAMETER



0.55±0.15mm 0.45±0.15mm

BEAM QUALITY



≤1.2

POLARIZATION DIRECTION



100:1 horizontal

CARVING SPEED



≤7000mm/s

ENGRAVING RANGE



110mm×110mm (Custom optional)

ENGRAVING DEPTH



0.1mm-2.0mm (Depending on the material)

WORKING TEMPERATURE



15~35°C

COOLING WAY



Water cooling/Air cooling

WORK ENVIRONMENT



Dry, clean, and ventilated

POWER SUPPLY



AC220V/50Hz (Custom optional)

POWER CONSUMPTION



≥0.6KW ≥1KW ≥1.5KW

WEIGHT



≈100KG








UV Laser Marking Machine: Working Principles​

​​355nm UV Laser Marking Machine 3W-25W for Various Plastic Marking​​ 1



The UV laser marking machine operates on ​​photochemical interactions​​:



  1. ​​Laser Generation​​: A 355nm UV laser emits short-wavelength beams (photon energy: ~3.5eV), focused into micrometer-scale spots (10–15μm diameter) via optical systems.
  2. ​​Material Interaction​​: High-energy UV light ​​directly breaks molecular bonds​​ (vs. thermal ablation), vaporizing surface molecules to create permanent marks.
  3. ​​Cold Processing Advantage​​: Unlike traditional lasers (thermal effects), UV lasers generate ​​≤5μm heat-affected zones​​, avoiding material deformation or discoloration.















​​355nm UV Laser Marking Machine 3W-25W for Various Plastic Marking​​ 2








UV Laser Marking Machine: Technical Features





Core advantages span ​​precision, adaptability, and eco-friendliness​​:



​​355nm UV Laser Marking Machine 3W-25W for Various Plastic Marking​​ 3

​​1. Ultra-Fine Processing​​:

  • Spot size: ≤10μm; minimum line width: ≤0.02mm.
  • Applications: 0.1mm text on chips, micro-marking on toothbrush handles.



2. ​​Low Thermal Damage​​:

  • Heat-affected zone: ≤5μm (1/20th of CO₂ lasers).
  • Suitable for heat-sensitive materials (silicon wafers, medical tubing, plastics).



3. ​​Material Versatility​​:

  • Process metals (stainless steel, aluminum), non-metals (plastics, ceramics, glass), and polymers (PET, ABS).



4. ​​Eco-Friendly Design​​:

  • No inks/chemicals; complies with RoHS/REACH.
  • Noise-free and dust-free operation.



​​5. High Efficiency & Stability​​:

  • Speed: 300 characters/sec; laser lifespan: 20,000 hours (zero maintenance).
  • Power consumption: ~850W (1/3 of conventional systems).






UV Laser Marking Machine: Application Scenarios



​​355nm UV Laser Marking Machine 3W-25W for Various Plastic Marking​​ 4

Key industries requiring ​​high precision, high value-added, and eco-compliance​​:





​​1. Electronics & Semiconductors​​:

Wafer marking (0.1mm characters, acid/heat resistance).

PCB microvia drilling (±2μm accuracy).



2. ​​Medical & Pharmaceuticals​​:

Surgical tool traceability (QR codes surviving 1,000+ sterilizations).

Tamper-proof drug packaging marks.



3. ​​Glass & Ceramics​​:

Anti-counterfeit etching on bottles (0.5% defect rate vs. 12% for sandblasting).



​​4. Plastics & Consumer Goods​​:

Toothbrush branding (UV-resistant marks).

Cosmetic packaging text (superior to inkjet).



​​5. Emerging Fields​​:

Solar panel serialization.

Automotive part identification (engine models).







​​355nm UV Laser Marking Machine 3W-25W for Various Plastic Marking​​ 5








FAQ of fiber laser marking machine





1. Q: ​​What materials can UV laser marking machines process?​​ ​​

A:​​ UV laser marking machines can mark plastics (PP, ABS, PC), glass, ceramics, metals (stainless steel), and electronics (PCB, semiconductors) with high precision and minimal heat damage.





2. Q: ​​Why choose UV lasers over CO2 or fiber lasers?​​ ​​

A:​​ UV lasers offer finer resolution (<10μm), cold processing (no thermal distortion), and eco-friendly operation (no consumables), ideal for delicate materials like medical devices and electronics.
