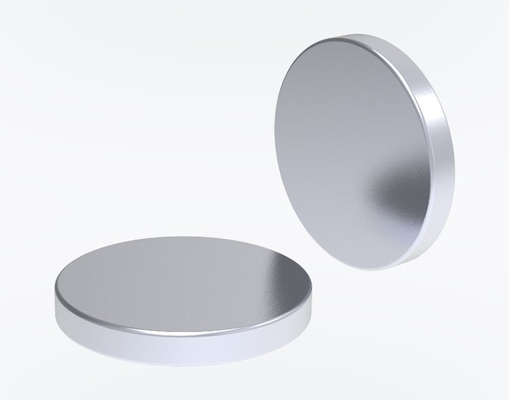

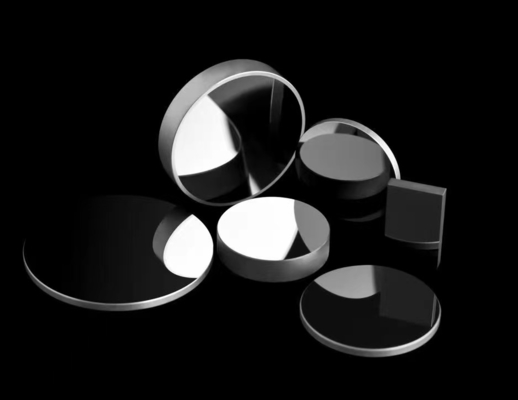

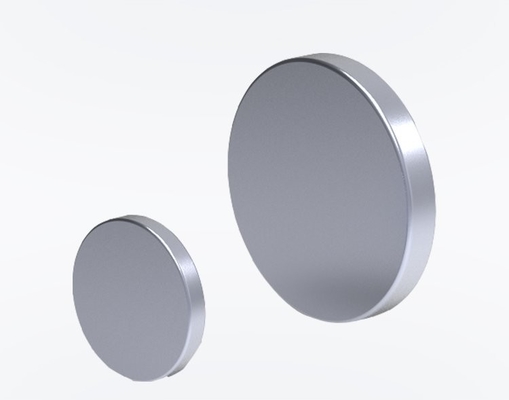

Plane Optical Silicon Lens Si Window Prism Dia 10 - 100mm

Plane Optical Silicon Lens Si Window Prism Dia 10 - 100mm
Plane Optical Silicon Lens Si Window Prism Dia 10 - 100mm Plane Optical Silicon Lens Si Window Prism Dia 10 - 100mm Plane Optical Silicon Lens Si Window Prism Dia 10 - 100mm

Large Image :  Plane Optical Silicon Lens Si Window Prism Dia 10 - 100mm

Product Details:
Place of Origin: China
Brand Name: zmkj
Certification: rohs
Model Number: customized Ge windows
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: by case
Packaging Details: capacitor paper for optical glass and carton
Delivery Time: 2-4weeks
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Material: Silicon Single Crystal Application: Infrared Optical
Size: Dia10~dia200mm Shape: Plane, Plano Convex Customized
Type: N-type Surface: Double Side Polished
Flatness: >1/10lambda Items: Ge Window Lens
Customized Service: Ok Orientation: 100
Surface: DSP Type: N/P/un-doped
Resistivity: 0.01-10000ohm.cm Method: Cz
Highlight:

Plane Optical Si Window Prism

,

100mm Optical Silicon Lens

,

Single Crystal Silicon Window Prism




customized size N-type plano convex  plane shape Infrared Optical Silicon lens window/ Ge Window /si lens/ silicon optical plate
Silicon Prism
Silicon (Si) Monocrystalline silicon is a chemically inert material with high hardness and insoluble in water. It has good light
transmission performance in the 1-7μm band. At the same time, it also has good light transmission performance in the far infrared
band of 300-300 μm, which is a special feature that other optical infrared materials do not have point. Silicon (Si) single
crystal is usually used for substrates of 3-5 μm medium-wave infrared optical windows and optical filters. Due to its good thermal
conductivity, Low density, it is also a common material for making laser mirrors.





Product Description



Material Silicon
Crystal Structure Diamond
Purity >99.9999%
Growth method CZ FZ
Type P or N
Purity 5N--6N
Orientation <100>or<111>
Resistivity >100 ohm.cm
Hardness, Mohs 7
Density 2.33g/cm3
Tolerance ±0.02---±0.1mm
Chamfering C0.3-0.5×45°
Parallelism <3 arc minutes
Flatness 1/4λ-10λper inch @633nm
Surface quality 5-10/60-40

Customized optical monocrystalline Silicon prism cube silicon prism

Our company can customize all-metal mirrors in different diameter specifications according to customers’ different requirements and also provides special all-mental mirrors such as punching, trimming, etc.
Plane Optical Silicon Lens Si Window Prism Dia 10 - 100mm 0

Plane Optical Silicon Lens Si Window Prism Dia 10 - 100mm 1
Plane Optical Silicon Lens Si Window Prism Dia 10 - 100mm 2
Plane Optical Silicon Lens Si Window Prism Dia 10 - 100mm 3
OUR OTHRE RELATED PRODUCTS
Plane Optical Silicon Lens Si Window Prism Dia 10 - 100mm 4

Regarding the package
Plane Optical Silicon Lens Si Window Prism Dia 10 - 100mm 5
FAQ:
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.

3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.

4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.

5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.

6.How do you make our business long-term and good relationship?
-a. We keep good quality and competitive price to ensure our customers benefit ;
-b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
