Sapphire Optical Tubes, Al2O3 Single Crystal Tubes, Sapphire Optical Glass Tubes, Sapphire Optical Rods, Sapphire Optical Stick, Al2O3 Single Crystal Glass Tubes, Optical Glass pipes By Sapphire, Sapphire Optical Tubes Pipes
Sapphire Optical Tubes Feature
+ allow to be customized by design artwork
+ made by synthetic sapphire (99.999%Al2O3)
+ high-hardness 9 Mohs, outstanding scratch resistance and chemical stability
+ great transmittance, about 80%-90% in the visible light spectrum
(approximately 400-700 nm).
+ widely used for high-temperature, chemical-resistant, and optical applications
Description of Sapphire Optical Tubes
The sapphire tube is a high-performance material pipe made of single-crystal sapphire with excellent physical and chemical properties.
Sapphire (aluminium oxide single crystal) has extremely high hardness, second only to diamond, and has strong wear resistance and scratch resistance.
It is widely used in fields that require high durability.
Sapphire tubes also have excellent high-temperature and chemical corrosion resistance and can maintain stability in extreme environments.
This makes sapphire tubes important in high-temperature equipment, optical instruments, medical equipment and other fields.
In addition, the high light transmittance of sapphire makes it excellent in optical applications, especially in the ultraviolet and infrared ranges and can transmit light of specific wavelengths without being affected.
Sapphire tubes are also widely used in precision manufacturing, aerospace, and semiconductor industries, and are indispensable key components in many high-tech fields.
Details of Sapphire Optical Tubes
| Product Name |
Sapphire Optical Tubes |
| Hardness |
9 Mohs |
| Melting Point |
2,050°C (3,722°F) |
| Density |
3.98 g/cm³ |
| Thermal Conductivity |
25 W/m·K at 20°C |
| OD/ID/Length |
Customized |
| Refractive Index |
1.76 at 589 nm |
| Optical Transparency |
5.3 × 10⁻⁶ /°C |
| Electrical Resistivity |
> 10¹⁴ Ω·cm |
| Poisson's Ratio |
0.25 |

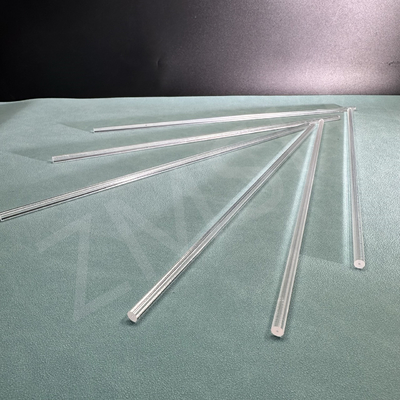

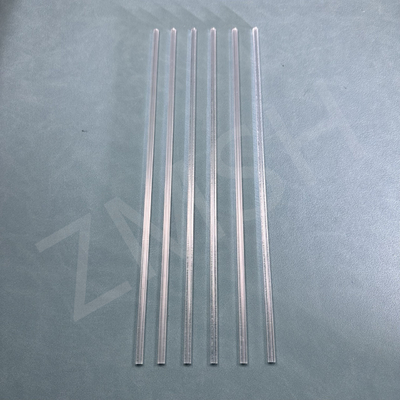

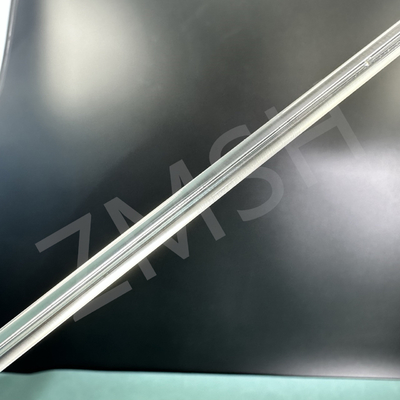

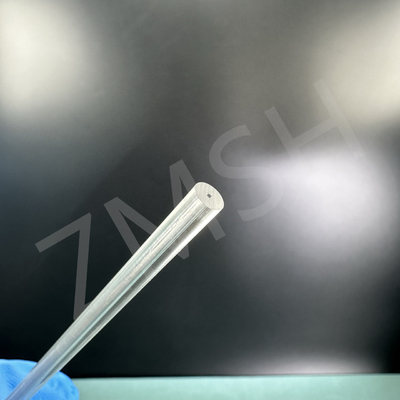

More samples of Sapphire Optical Tubes
*We accept customized one, please feel free to contact us about your requirements.
