Y axis LT LN Single Crystals by CZ growth method

Large Image : Y axis LT LN Single Crystals by CZ growth method

Product Details:

Place of Origin:	CHINA
Brand Name:	zmkj
Model Number:	LT-001

Payment & Shipping Terms:

Minimum Order Quantity:	25pcs
Price:	by case
Packaging Details:	PET Films or 25pcs casstle case by 100 grade cleaning room
Delivery Time:	15-30days
Supply Ability:	5000pcs/month

Contact Now

Detailed Product Description

Materials:	LiTaO3 Single Crystal	Industry:	Semiconductor Wafer,saw Wafer,optical Wafer
Application:	5G,SAW Device,optical Glass,	Color:	Yellow, Red,black
Size:	4inch	Orientation:	Y-42° Commen
Highlight:	Lithium Niobium Trioxide Single Crystals , Lithium Tantalate Crystals , Lithium Niobate Single Crystals

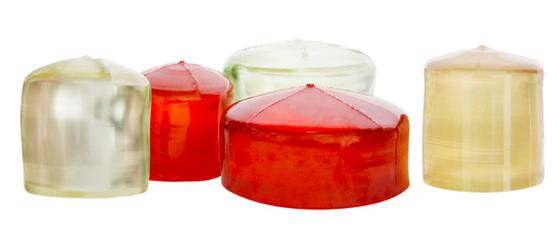

Y axis LT LN Single Crystals by CZ growth method

Feature

Lithium niobate is a ferroelectric crystal with a Curie point of 1140℃, a spontaneous polarization of 50×10C/cm' and a thermal conductivity of 0.056(W/cm·K). The deformed lithium niobate crystals have many properties, such as piezoelectric, ferroelectric, photoelectric, nonlinear optics, thermoelectric, and photorefractive effect.

Application

The largest use of Lithium Tantalate (LT) and Lithium Niobate (LN) is in SAW devices mounted in communication devices. Many communication devices, such as smartphones are being used every day. When voice communication and data communication are performed, SAW devices such as SAW filters and SAW duplexers are mounted in communication devices as filters for preventing noise and interference.

Specification

Oxide Crystals	LiNbO₃		LiTaO₃
Growth method	CZ (Czochralski)		CZ (Czochralski)
Crystal	Single Crystal		Single Crystal
Use for	SAW		SAW
Wafer size	4"	6"	4"	6"
Diameter (mm)	100.0 ± 0.2	150.0 ± 0.2	100.0 ± 0.2	150.0 ± 0.2
Thickness (μm)	350 ± 20	500 ± 20	200/350 ± 20	200/350 ± 20
Orientation	128º Rotated Y axis	128º Rotated Y axis	36-50º Rotated Y axis	36-50º Rotated Y axis
Orientation Flat (mm)	32.5 ± 1.0	47.5 ± 1.0	32.5 ± 1.0	47.5 ± 1.0
NTV (μm)	≦4	≦4	≦4	≦4
PLNTV (≦0.5μm, site size 5mm) (%)	100	100	100	100
Sori (μm)	≦50	≦50	≦50	≦75/≦50
Surface:Front side	Polished	Polished	Polished	Polished
Surface:Back side	Lapped (GC #2000)	Lapped (GC #2000)	Lapped (GC#1000)	Lapped (GC#2000/GC#1000)

Product display
