100um 170um 200um DSP Sapphire Wafers Ultrathin Thickness 2inch

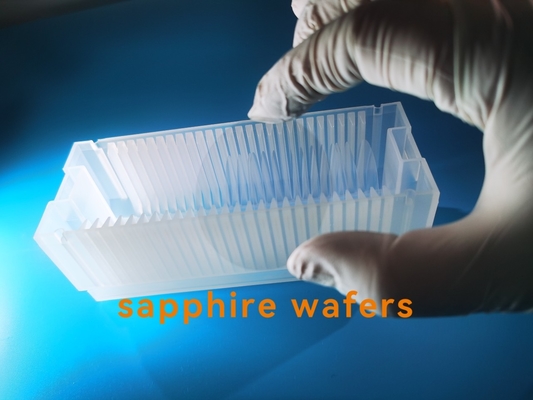

Large Image : 100um 170um 200um DSP Sapphire Wafers Ultrathin Thickness 2inch

Product Details:

Place of Origin:	china
Brand Name:	zmsh
Certification:	ROHS
Model Number:	2inch*0.1mmt

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	by case
Packaging Details:	Vacuum-sealed containers with nitrogen backfill in a class 100 environment
Delivery Time:	10-30days
Supply Ability:	10000pcs/months

Contact Now

Detailed Product Description

Material:	99.999％ Al2O3 SAPPHIRE	Industry:	Led，optical Glass，eli-ready Wafer
Application:	Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics	Color:	Transparent
Vision Light Transmissivity:	85％	Advantagement:	High Hardness9.0，wear Resistance,corrosion Resistance
Type:	Single Crystal
Highlight:	200um Sapphire Wafers , 2 Inch Sapphire Wafers , Transparent Sapphire Substrate

ultrathin thickness 2inch 100um 170um 200um DSP sapphire wafers

-------------------------------------------------------------------------------------
We can supply professional customized service in time and provide cooperation and support of new product development and technology appliance.

Material Sapphire(Al2O3)
Density(20°C) Kg/m3   3.98×103
Crystal Structure   hexagonal
Crystal lattice constant a=4.785Å c=12.991 Å
Mohs hardness 9
Melting Point   2045°C
Boiling Point 3000°C
Coefficient of Thermal Expansion α=5.8×10 -6 /K
Specific heat 0.418W.s/g/k
Thermal conductio 25.12W/m/k(@100°C)
Refractive Index (nd)   no=1.768ne=1.76
dn/dt   13×10-6/K(@633nm)
Tranmission T≈85%(0.3~5um)
Permittivity   11.5(//c), 9.3(⊥c)

Applications
Sapphire Washers, Sapphire Windows, Sapphire Bearings, Sapphire Rods, Sapphire Tubes, Ruby
sapphire wafer, dome sapphire, Sapphire insulation Film, Sapphire ball lens, Sapphire/ruby ball

2inch 0.1mm thickness sapphire wafer specification
Material: Single crystal Al2O3 99.999％
Orientation: C-plane(0001) Off M -axis 0.2°±0.1

Diameter:50.80±0.2mm or 3inch,2inch,5inch,6inch
Thickness :100±15um or customized
Primary flat:16±1mm (or round wafer)
4. OF Orientation flat: A axis±0.1°
Frontside Surface Roughness:Ra＜0.3nm
Backside Surface Roughness: 0.8~1.2um
( Or double side polished, both side Ra＜0.2nm)
TTV:＜10um BOW:-10~0um WARP:＜10um
Laser Mark Series No. by needs
Package:Vacuum-sealed containers with nitrogen backfill in a class 100 environment
Cleanliness :Free visible contamination

Sapphire Wafer Process Step
100um 170um 200um DSP Sapphire Wafers Ultrathin Thickness 2inch 0

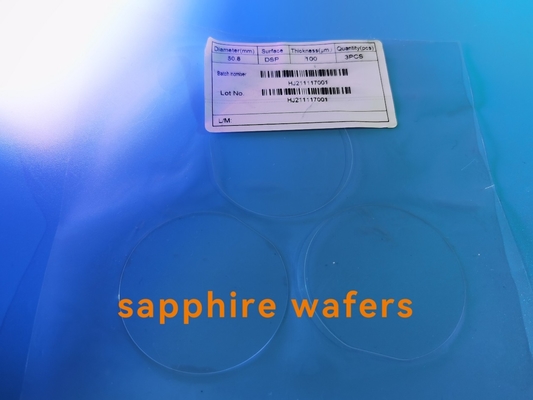

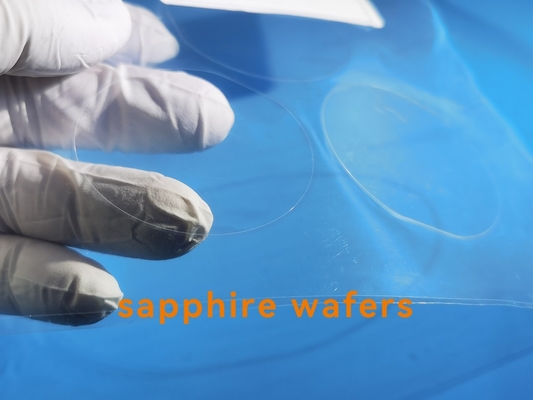

Sample

100um 170um 200um DSP Sapphire Wafers Ultrathin Thickness 2inch 1

100um 170um 200um DSP Sapphire Wafers Ultrathin Thickness 2inch 2

we also can provide other materials crystal seimconductor wafers as like GaN, SiC,GaAs,InP,MgO etc.

CATALOGU ＆ Stcok List for wafers

Standard wafer(customzied) 2 inch C-plane sapphire wafer SSP/DSP 3 inch C-plane sapphire wafer SSP/DSP 4 inch C-plane sapphire wafer SSP/DSP 6 inch C-plane sapphire wafer SSP/DSP	Special Cut A-plane (1120) sapphire wafer R-plane (1102) sapphire wafer M-plane (1010) sapphire wafer N-plane (1123) sapphire wafer C-axis with a 0.5°~ 4° offcut, toward A-axis or M-axis Other customized orientation
Customized Size 1010mm sapphire wafer 2020mm sapphire wafer Ultra thin (100um) sapphire wafer 8 inch sapphire wafer	Patterned Sapphire Substrate (PSS) 2 inch C-plane PSS 4 inch C-plane PSS

2inch

DSP C-AXIS 0.1mm/0.175mm/0.2mm/0.3mm/0.4mm

/0.5mm/ 1.0mmt

SSP C-axis 0.2/0.43mm

(DSP＆SSP) A-axis/M-axis/R-axis 0.43mm

3inch

DSP/ SSP C-axis 0.43mm/0.5mm

4Inch

dsp c-axis 0.4mm/ 0.5mm/1.0mm

ssp c-axis 0.5mm/0.65mm/1.0mmt

6inch

ssp c-axis 1.0mm/1.3mmm

dsp c-axis 0.65mm/ 0.8mm/1.0mmt

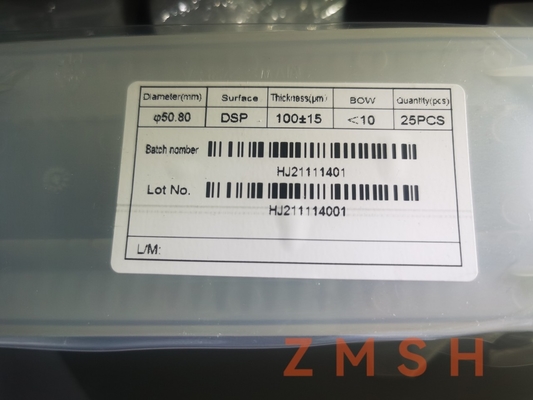

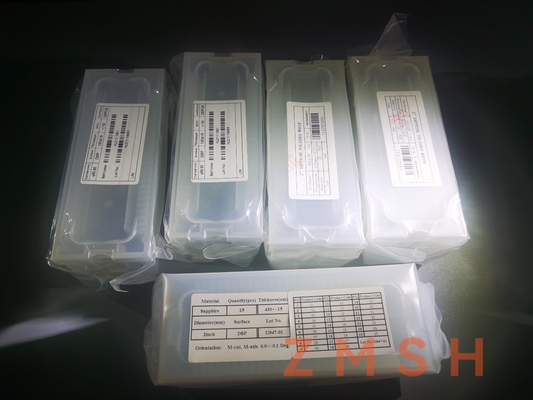

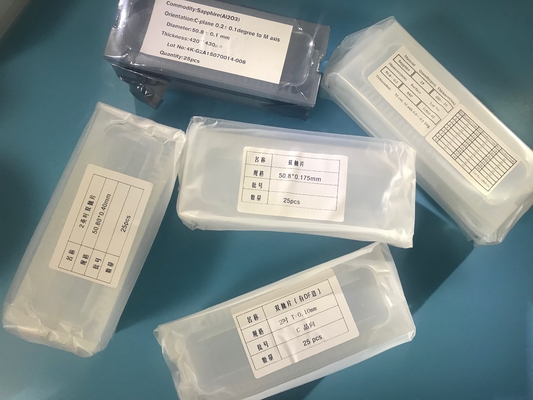

Packing & Delivery

Packing Details : Packing, BOX,CARTONS by 25pcs cassette in cleaning room by vacuumize

Delivery Details : 3-20 days after order of Solid bicycle tire tubesrecieving your pament will be send out.

Q: What's the way of shipping and cost?

(1) We accept DHL, Fedex, TNT, UPS, EMS, SFand etc.

(2) If you have your own express account, it's great.

Q: How to pay?

(1) T/T, PayPal, West Union, MoneyGram and

Assurance payment on and etc..

(2) Bank Fee: West Union≤USD1000.00),

T/T -: over 1000usd ,please by t/t

Q: What's the deliver time?

(1) For inventory: the delivery time is 5 workdays.
(2) For customized products: the delivery time is 7 to 25 workdays. According to the quantity.
