8inch 0.725 dia100mm c plane single crystal sapphire wafer
4inch Sapphire Wafer C-Plane Single or Double Side Polished Al2O3 Single Crystal
4inch Dia100mm A plane Single Crystal Sapphire Wafer
2inch Dia50mm C axis Single Crystal Sapphire Wafer Sapphire Substrates
8inch Dia 159mm Single Crystal Sapphire Wafer For Epi - Ready Carrier
4inch/ 5inch/ 6inch/ 6.125inch/8inch c-plane R-axis (1-102) (10-10) sapphire wafer,dia200mm sapphire substrates ,2-6inch C-axis double side polished sapphire wafer for led epi-ready,sapphire substrates, Al2O3 crystal optical lens, Double Side Polished SSP Surface 8" Sapphire Carrier
Product description
The 8-inch sapphire wafers can enable chip makers to roll out more productivity, which will help them drive down costs dramatically.
CRYSCORE is qualified to supply 8-inch epi-ready sapphire wafers. The common thickness is 1300 μm and 1500 μm.
Generally, this series of polished sapphire wafer has a notch instead of a major flat, but flat with custom length is also available. Our sapphire wafers are cleaned in class 100 cleanroom by ultrapure water with quality above 18MΩ *cm, and then packed in clean cassettes.
Electrical Properties of Sapphire
Resistivity, Ohm x cm at 200-500 °C: 1011- 1016
Dielectric constant: 10.0
Dielectric strength, V/cm: 4 x 105
Loss tangent: 1 x 10-4
Feature
Specifications of Sapphire Wafer, 6 inch, C-plane (0001), Prime Grade
| Material | High Purity, >99.99%, single crystal Al2O3 |
| Dimension | 200.0 mm +/- 0.05 mm |
| Orientation | C plane (0001) off M (1-100) plane 0.2 +/- 0.05 degree |
| Primary flat orientation | A-plane +/- 1 degree |
| Total Thickness Variation (TTV) | <20um |
| Bow | <25um |
| Warp | <25um |
| Thermal Expansion Coefficient | 6.66 x 10-6 / °C parallel to C axis, 5 x 10-6 /°C |
| Dielectric Strength | 4.8 x 105 V/cm |
| Dielectric Constant | 11.5 (1 MHz) along C axis, 9.3 (1 MHz) perpendicular to C axis |
| Dielectric Loss Tangent (a.k.a. dissipation factor) | less than 1 x 10-4 |
|
Transmittance: |
88% +/-1 % @460 nm |
Electrical Properties of Sapphire
Resistivity, Ohm x cm at 200-500 °C: 1011- 1016
Dielectric constant: 10.0
Dielectric strength, V/cm: 4 x 105
Loss tangent: 1 x 10-4
Application

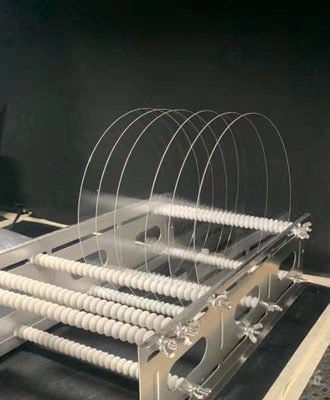

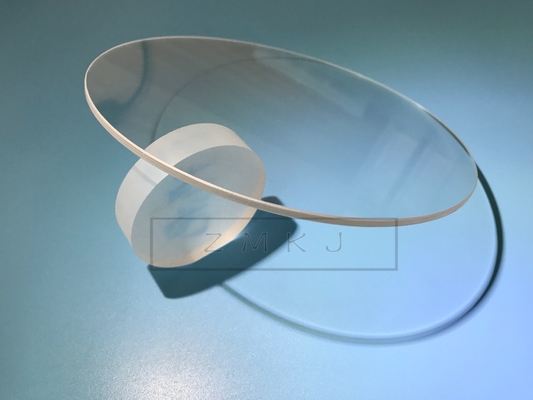

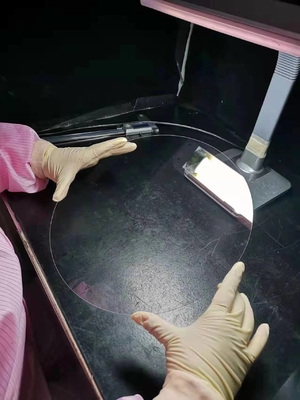

Product display
Packing of sapphire wafers
Related products
FAQ:
Q: What's your MOQ?
A: (1) For inventory, the MOQ is 10pcs.
(2) For customized products, the MOQ is 25pcs up.
Q: What's the way of shipping and cost?
A:(1) We accept DHL, Fedex, EMS etc.
(2) If you have your own express account, it's great.If not,we could help you ship them.
Freight is in accordance with the actual settlement.
Q: What's the delivery time?
For inventory: the delivery is 5 workdays after you place the order.
For customized products: the delivery is 2 or 3 weeks after you place the order.
Q: Do you have standard products?
A: Our standard products in stock.as like 4inch 0.65mm,0.5mm polished wafer.
Q: How to pay?
A:50％deposit, left before delivery T/T,
Q: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical coating for your optical
components based on your needs.
