Semiconductor Wafer Custom Sapphire Glass / Sapphire Windows Special Orientation

Large Image : Semiconductor Wafer Custom Sapphire Glass / Sapphire Windows Special Orientation

Product Details:

Place of Origin:	china
Brand Name:	zmsh
Model Number:	2inch

Payment & Shipping Terms:

Minimum Order Quantity:	25pcs
Price:	by case
Packaging Details:	Vacuum-sealed containers with nitrogen backfill in a class 100 environment
Delivery Time:	15-30days
Supply Ability:	10000pcs/months

Contact Now

Detailed Product Description

Material:	99.999％ Al2O3	Industry:	Led，optical Glass，eli-ready Wafer
Application:	Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics	Color:	White Or Red Or Blue
Vision Light Transmissivity:	85％	Advantagement:	High Hardness9.0，wear Resistance,
Type:	Single Crystal	Orientation:	C,A，R，M
Highlight:	sapphire substrate , custom sapphire glass

semiconductor sapphire wafer by customized speical orientation 1°2°3°8°off C-axis 2inch dia 50.8mm size for epi-reday test

How About The Advantagement For Sapphire Common Lens Applications ?

*Transmits Wavelengths Ranging From UV to Mid-Infrared
*Features Extreme Surface Hardness and Chemical Resistance
*Thinner and Stronger than Standard Glass Windows

What is Sapphire ?

Sapphire Windows are manufactured from Al2O3 single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. , and is useful in a transmission range from 0.2 - 5.5µm.
-------------------------------------------------------------------------------------------------------------------------------------
As a Sapphire professional factory We can supply professional customized service and provide cooperation and support of new product development and technology appliance.

Applications
Sapphire Washers, Sapphire Windows, Sapphire Bearings, Sapphire Rods, Sapphire Tubes, Ruby
sapphire wafer, dome sapphire, Sapphire insulation Film, Sapphire ball lens, Sapphire/ruby ball

2inch 1°off C-plane specification

Material: Single crystal Al2O3 99.999％
Orientation: C-plane(0001) Off M -axis 1°±0.1°,

Diameter:50.80±0.2mm
Thickness 430±15um or 500±15um or 100±25um
Primary flat:16±1mm

OF Orientation flat: A axis±0.1°
Frontside Surface Roughness:Ra＜0.3nm
Backside Surface Roughness: 0.8~1.2um
( Or double side polished, both side Ra＜0.3nm)
TTV:＜15um
BOW:-15~0um
WARP:＜15um
Laser Mark Series No. by needs
Package:Vacuum-sealed containers with nitrogen backfill in a class 100 environment
Cleanliness :Free visible contamination

Sample

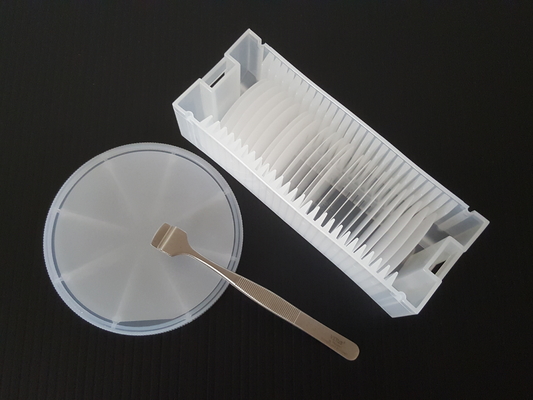

Semiconductor Wafer Custom Sapphire Glass / Sapphire Windows Special Orientation 1

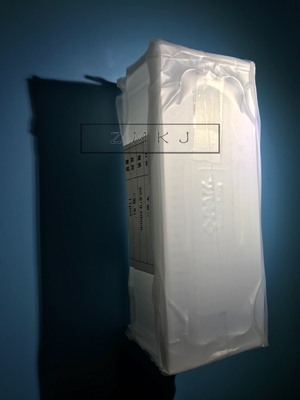

Semiconductor Wafer Custom Sapphire Glass / Sapphire Windows Special Orientation 2

About ZMKJ

ZMKJ Located in Shanghai - one of the largest industrial cities in China.
we focus on designing, producing of the synthetic sapphire and ruby bearing, marine equipments etc.

and semi material wafers and lens for more than 5 years. and have rich experice in importing and exporting.
To explore new market for our products, our company often launches various products worldwide as well.
Now, facing the keen competition of the market, and with rich experience in international trade, we have a high reputation, good quality products and competitive price. We have had cooperation with worldwide enterprises.

We hope that our work can make your business perfect. We are looking forward to establishing relationships

with you in the near future.
