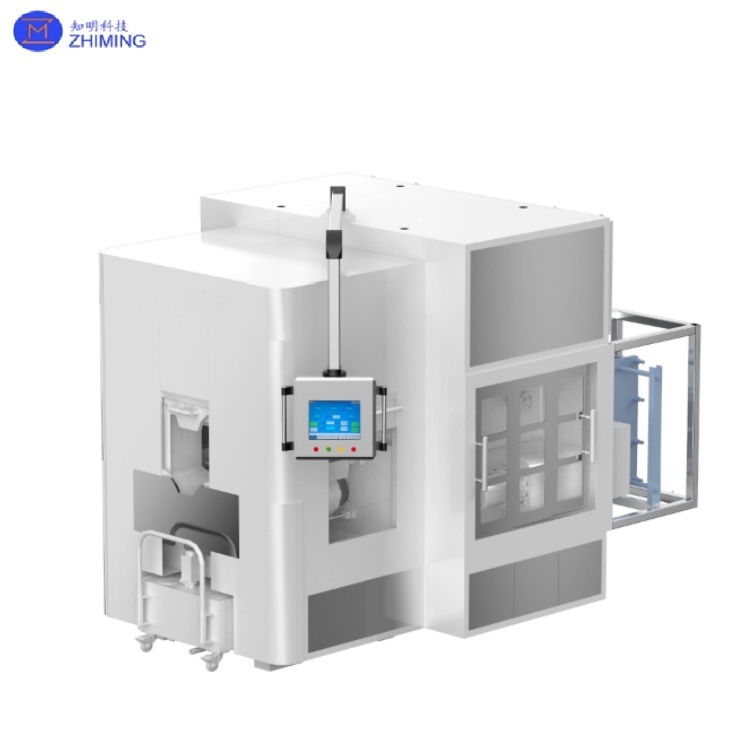

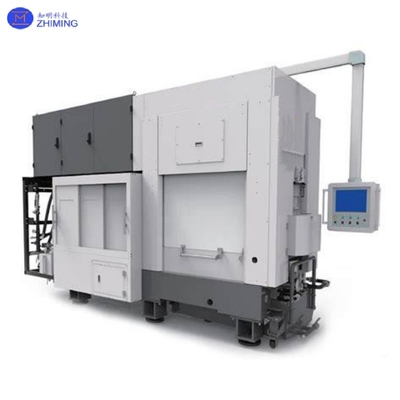

Inverted Multi-Wire Saw Machine for High-Precision Diamond Wire Cutting
The inverted ultra-precision multi-wire saw is a high-speed model within our company's multi-wire saw product line, specifically designed for the efficient batch processing of various hard and brittle materials. This model features an innovative inverted structural design and is equipped with a streamlined wire guide system (typically optimized to 6 guide wheels). This design enhances processing efficiency while significantly improving operational stability and process adaptability.

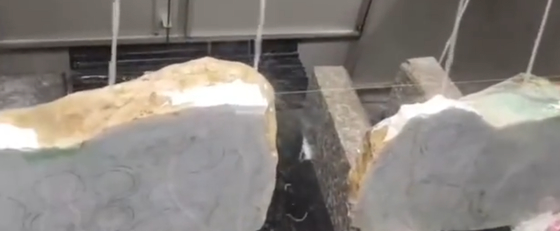

Its core cutting principle utilizes high-speed reciprocating diamond wires (embedded with diamond particles) to grind-cut hard and brittle materials in the processing area. By precisely controlling cutting parameters, it can produce uniform-thickness, high-quality thin slices. This equipment perfectly balances high production efficiency, excellent product quality, low processing costs, high control precision, and environmental friendliness, making it particularly suitable for customers with high requirements for cost control and material utilization. Additionally, the device adopts a modular design for convenient waste recycling, aligning with the sustainable development requirements of modern manufacturing.
Inverted Multi-Wire Saw Machine Working Principle
The working principle of the inverted multi-wire saw is based on high-speed reciprocating diamond wires carrying diamond particles to grind-cut hard and brittle materials. The detailed process is as follows:
1. Wire Mesh Formation
- The diamond wire is unwound from the pay-off reel and passes through 6 streamlined and optimized guide wheels (significantly fewer than traditional models) before being taken up by the take-up reel, forming a stable diamond wire mesh in the cutting area. The inverted structural design allows for a more compact and rational wire mesh layout, reducing the number of guide wheels while ensuring stable wire operation. The guide wheel system ensures neat wire arrangement, providing a foundation for precise cutting.
2. High-Speed Reciprocating Cutting
- The diamond wire is driven by the main motor to perform high-speed reciprocating motion (typically reaching 1000-1200 m/min). The diamond particles on the wire mesh grind-cut the hard and brittle materials. The inverted structure ensures more uniform tension distribution across the cutting wire, reducing vibrations and deviations during the cutting process.
3. Precision Feed Control
- The hard and brittle materials to be cut (e.g., magnetic materials, semiconductor materials) are precisely fed towards the high-speed moving diamond wire mesh by a servo-controlled worktable, following preset feed speeds and paths, to achieve uniform-thickness thin slice cutting. The entire feeding process is controlled by a high-precision servo system to ensure cutting accuracy.
4. Intelligent Tension Control
- A closed-loop feedback control system is employed to monitor and adjust the cutting wire tension in real time. Servo motors precisely control the operation of the pay-off and take-up reels to maintain constant wire tension during cutting. The system also features a tension warning function that automatically alerts when abnormal tension fluctuations are detected, effectively preventing wire breakage and improving production continuity.
5. Closed-Loop Cooling System
- Heat generated during cutting is dissipated by a precision cooling system. The cooling liquid is precisely sprayed onto the cutting area, ensuring cutting quality while protecting the equipment and materials. This system also facilitates waste recycling and processing.
Inverted Multi-Wire Saw Machine Features
|
Category
|
Details
|
|
1. Modern Industrial Design
|
• Sleek and Modern Aesthetics: The product features a clean, modern design language with multiple color options to meet diverse customer preferences.
• Sleek Lines and Geometric Proportions: The exterior design incorporates sharp lines and geometric proportions, highlighting the high-end sophistication of precision equipment while ensuring seamless integration into modern production lines.
|
|
2. User - Friendly Operational Design
|
• Automated Shield Lifting: The protective shield can be automatically adjusted up or down, balancing operational safety with ease of observation and adjustment.
• Inverted Structure Advantages: The inverted design lowers the equipment's center of gravity, enhancing operational stability while simplifying maintenance and operation.
|
|
3. Optimized Structural Layout
|
• Functional Zoning: The machine is divided into functional areas, with the main cutting zone separated from the wire pay - off/take - up operation area to minimize interference and provide a stable environment for the wire system.
• Open - Cut Zone: The cutting area features an open design for easy observation and routine maintenance, improving equipment accessibility and uptime.
|
|
4. Streamlined and Efficient Guide System
|
• Reduced Guide Wheels: The number of guide wheels is optimized to 6 (compared to 8 - 10 in traditional models), significantly reducing consumable usage, energy consumption, and operational costs while minimizing potential failure points.
|
|
5. High - Precision Drive System
|
• Imported Precision Components: Key drive components, including the main spindle and bearing housing, utilize imported high - precision parts to ensure machining accuracy and long - term stability.
• Bearing Housing Module for Spindle Drive: The spindle drive employs a bearing housing module with a simple installation process and double - cone positioning technology to guarantee high - precision rotation and long - term stability.
• Vibration and Thermal Optimization: The spindle drive system is engineered to minimize vibrations and thermal deformation, further enhancing cutting precision.
|
|
6. Quiet and Eco - Friendly Design
|
• Low Operational Noise: The equipment operates at noise levels typically below 75 decibels, safeguarding operator hearing health and creating a more comfortable working environment.
|
|
7. Full Servo Drive Control
|
• Precision Servo Motors: Critical functions — wire pay - off, take - up, wire threading, spindle rotation, wire tension, and worktable feeding — are powered and controlled by high - precision servo motors, ensuring precise synchronization and coordination of all moving parts.
• Responsive and Accurate Control: The servo control system offers rapid response and high positioning accuracy, enabling complex cutting paths and intricate process parameters.
|
|
8. Intelligent Tension Management System
|
• Closed - Loop Tension Control: The wire pay - off and take - up tension control utilizes a closed - loop feedback mechanism to monitor and automatically adjust wire tension, maintaining consistency throughout the cutting process for enhanced quality and stability.
• Tension Warning Mechanism: The system includes a tension warning feature that triggers automatic alerts upon detecting abnormal tension fluctuations, proactively preventing wire breakage and improving production efficiency.
|
Inverted Multi-Wire Saw Machine Applications
1. Magnetic Material Processing
- Specialized for Precision Slicing of Magnetic Materials: Designed for magnetic materials (e.g., neodymium-iron-boron, samarium-cobalt, and other rare-earth permanent magnets), enabling the efficient production of uniformly thick, high-quality magnetic slices. These are widely used in electronics, electric motors, and new energy sectors.
2. Semiconductor and Electronic Materials
- Precision Cutting of Electronic Materials: Suitable for semiconductor silicon wafers, compound semiconductors (e.g., GaAs, SiC), and other electronic materials, meeting the exacting standards of the electronics industry regarding material dimensional precision and surface quality.
3. Optical and Precision Ceramic Materials
- Cutting of Hard and Brittle Optical Materials: Applicable for processing optical glass, quartz crystals, and precision ceramics, producing high-precision optical components and intricate structural parts.
4. New Energy Materials
- Processing of New Energy-Related Materials: Ideal for lithium battery materials, photovoltaic materials, and other new energy-related hard and brittle materials, supporting the precision manufacturing needs of the new energy industry.
5. Scientific Research and Special Materials
- Research and Small-Batch Production: In scientific research institutions and specialized material processing fields, the equipment is used for new functional materials and composite materials, facilitating research and small-batch production to meet specialized processing demands.
Inverted Multi-Wire Saw Machine FAQ
1. Q: What materials are suitable for cutting with an inverted multi-wire saw?
A: Commonly used for cutting hard and brittle materials such as silicon wafers, sapphire, and ceramics.
2. Q: What are the advantages of an inverted multi-wire saw compared to traditional cutting machines?
A: It offers higher cutting precision, faster efficiency, and lower material waste.
